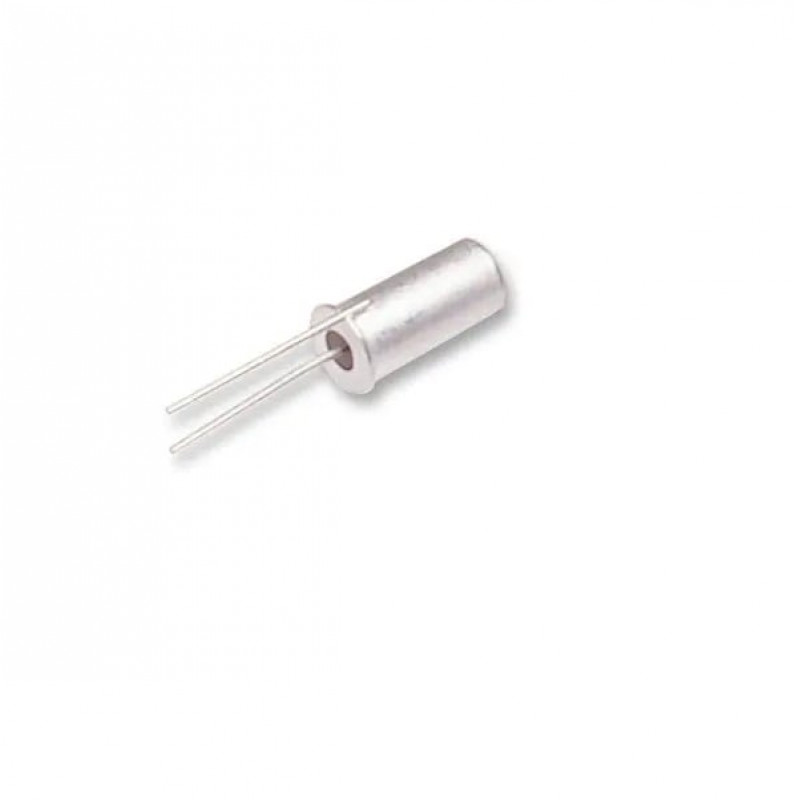

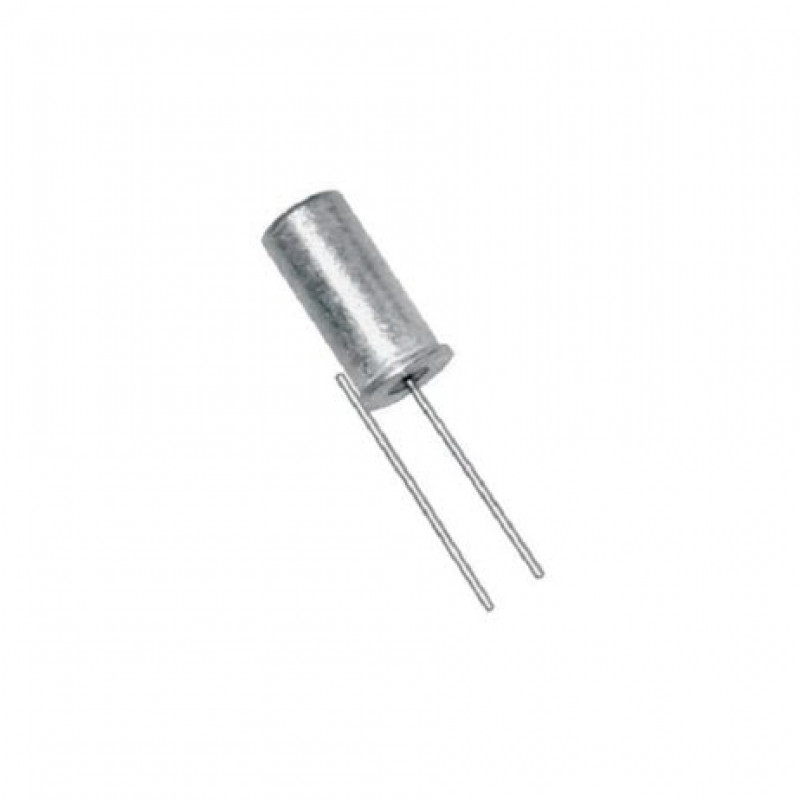

The CW1300-1 from Comus is a nonmercury tilt sensor. These operate when tilted from the horizontal position. The switch movement required to cause contact change is called the differential angle. It is very important when designing a tilt switch to allow the differential angle and understand that when in the horizontal position the switch contact may be open or closed.
Features:
- Resistant to Ambient Environmental Conditions
- Case Material Tin Plated
- Hermetically Sealed & Inert Gas Filled
- Customization Available
Package Includes:
1 x COMUS Tilt Switch, 15 , 60 Vac, 0.25 A, Nickel
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
COMUS Tilt Switch, 15 , 60 Vac, 0.25 A, Nickel
- Product Code: EC-23415
- Availability: 1
-
Rs.176.00
- (Excluding 18% GST)
