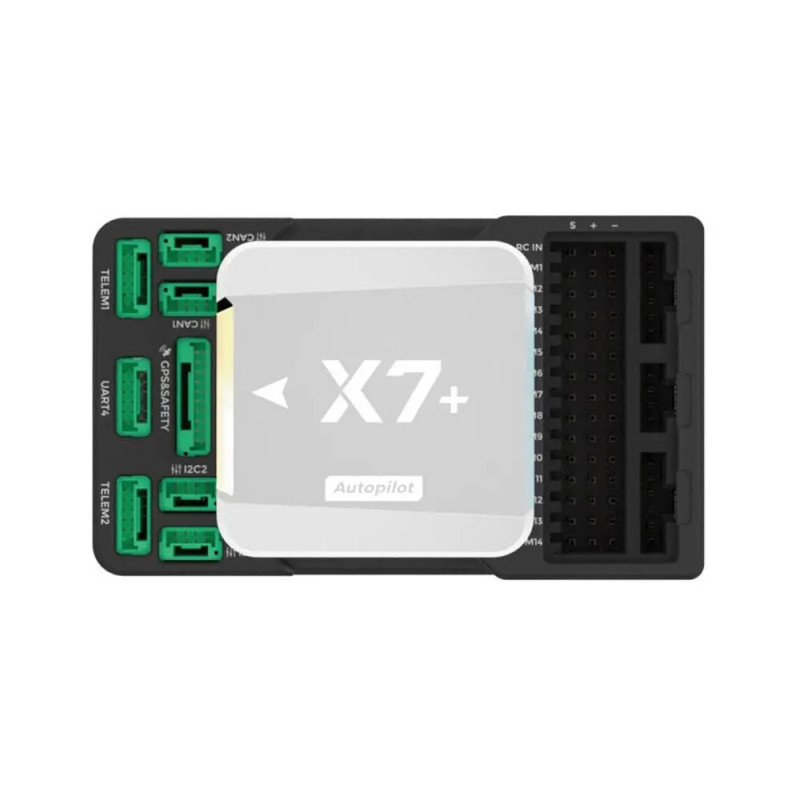

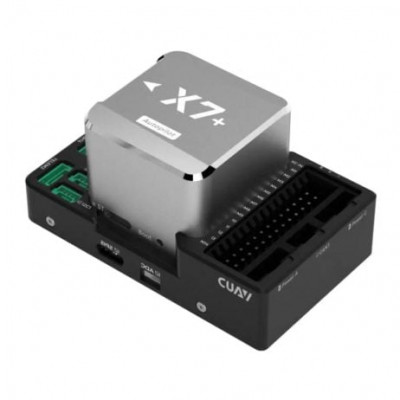

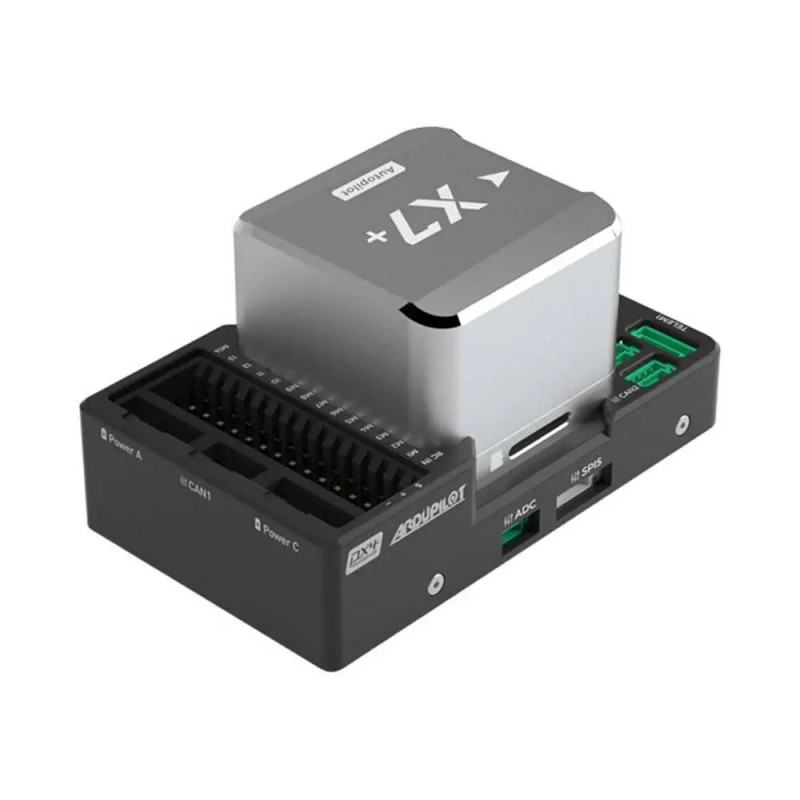

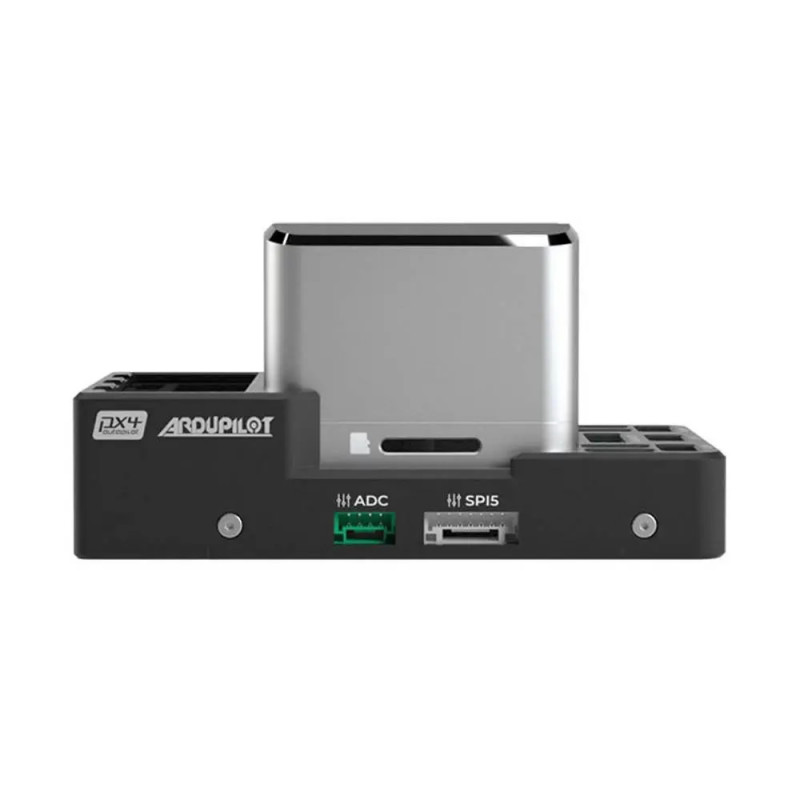

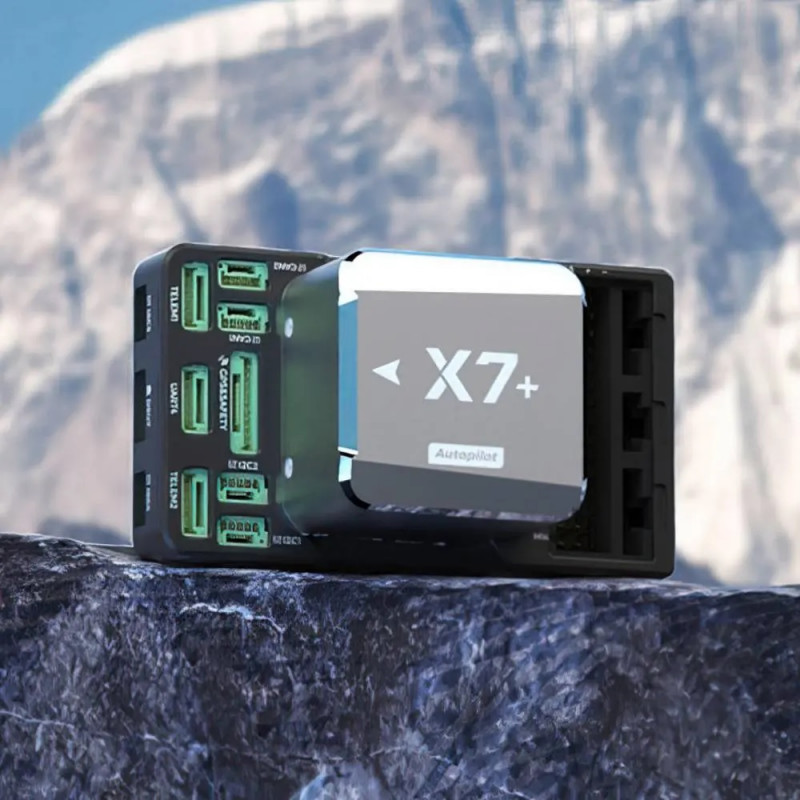

The CUAV X7+ Standard Autopilot Flight Controller is a high-performance autopilot. It is an ideal choice for industrial drones and large-scale heavy-duty drones. The X7+ features an H7 processor, an upgraded sensor with a redundancy design, a temperature compensation system, and a CORE separate design. The CUAV X7+ adopts a modular design and can be matched with different base plates. You can design a dedicated carrier board for your UAV to improve the integration of commercial systems, reduce wiring, improve system reliability, and enhance your UAV competitiveness (for example, by integrating airspeed sensors, telemetry, or even a companion computer, in the carrier board).

CUAV X7+ autopilot adopts STM32H743 processor, with processing speed up to 480MHz, 1M storage and 2M flash memory, built-in 3 sets of latest InvenSense + Bosch + TE series combined sensors and industrial RM3100 compass, with better stability and anti-interference, with CUAV patent shock absorption design and temperature compensation system.

Note: X7+ flight controller is compatible with ArduPilot 4.10/ PX4 1.12.3 or higher firmware.

Features:

1. Supports IMU heating, making the sensor work better
2. Modular design can be DIY carrier board
3. Supports temperature compensation
4. Dedicated battery port
5. Supports more DSHOT output
6. Car-grade RM3100 compass
7. High-performance processor
8. Internal shock absorption
9. Internal shock absorption
10. 3 sets of IMU sensors
11. Three imus

Package Includes:

1 x CUAV X7+ Flight Controller

2 x 12C/CAN cable

1 x ADC3.3 cable

1 x RSSI cable(X7 series)

1 x CAN PMU Lite Power Module

1 x Dupont cable

1 x CAN extension board

1 x Pw-Link module

1 x USB-TypeC cable

1 x 16G Memory card
