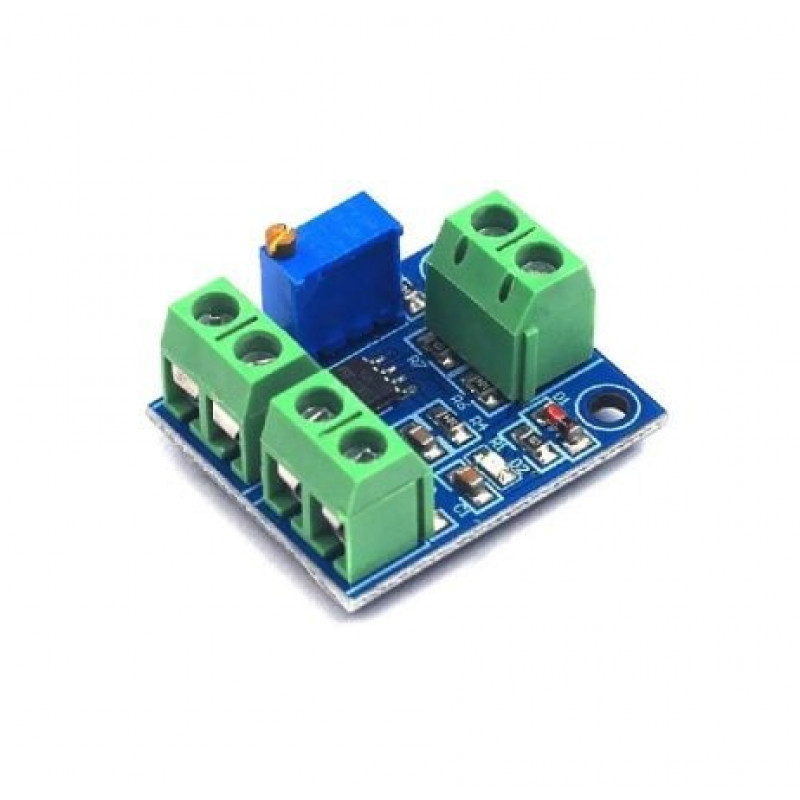

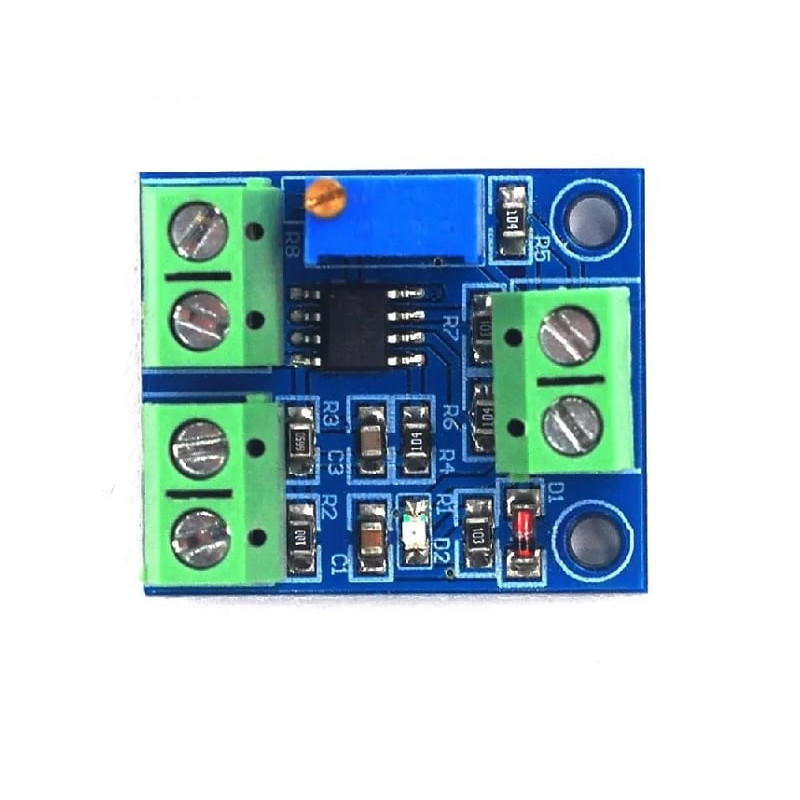

The Current to Voltage Converter Module is a versatile device designed for converting current signals into voltage signals. It supports a current input range of 0-20mA, converting it into a corresponding voltage output range of 0-5V. This module is ideal for interfacing sensors or devices that output current signals with systems that require voltage signals, providing a convenient solution for signal conversion in various electronic applications.

Features:

1. Adopt single-chip microcomputer embedded technology;
2. Realize the conversion of the current on the industrial label (0 ~ 20mA) to the voltage on the industrial standard (0 ~ 5V);
3. Driving capacity max15ma, linear output;
4. The output signal can be directly connected to the AD converter;
5. It can be connected with MCU with AD function;
6. The module is small and easy to carry and use;
7. Module working voltage: DC10V-30V;
8. Conversion range: 0~20mA current is converted to 0-5V voltage;

Specifications:

Pinouts:

VCC: working power supply 10V-30V

GND: working power ground

CIN: input current 0-20mA

GND: input current negative terminal

Vout: output voltage 0-5V

GND: output voltage ground

1. Lentgh: 29mm
2. Width: 17mm
3. Height: 11mm

Package Includes:

1 x Current to Voltage Converter Module 0- 20mA Current Conversion to 0-5V Voltage
