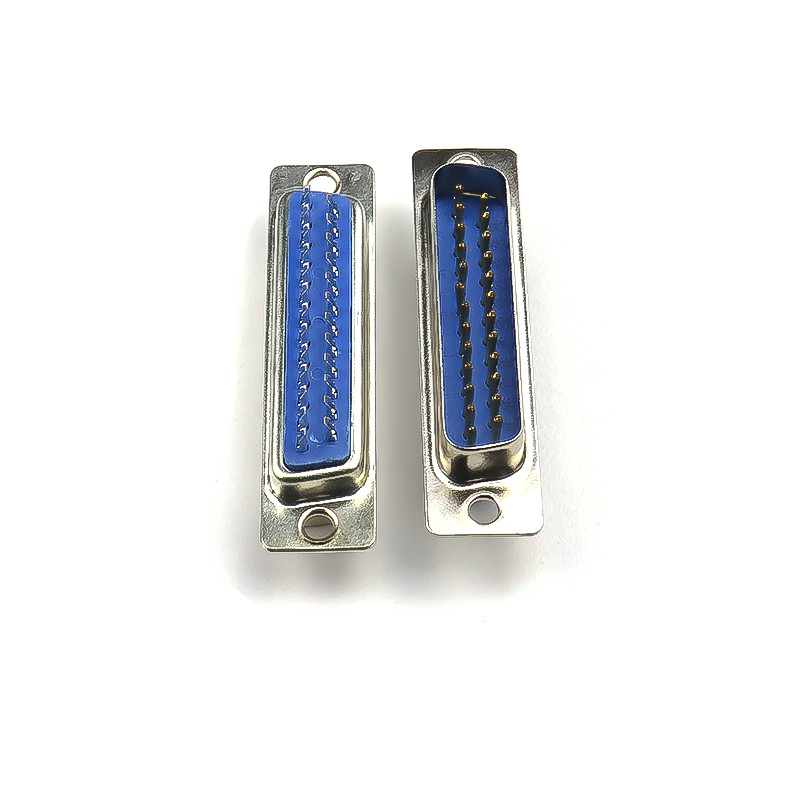

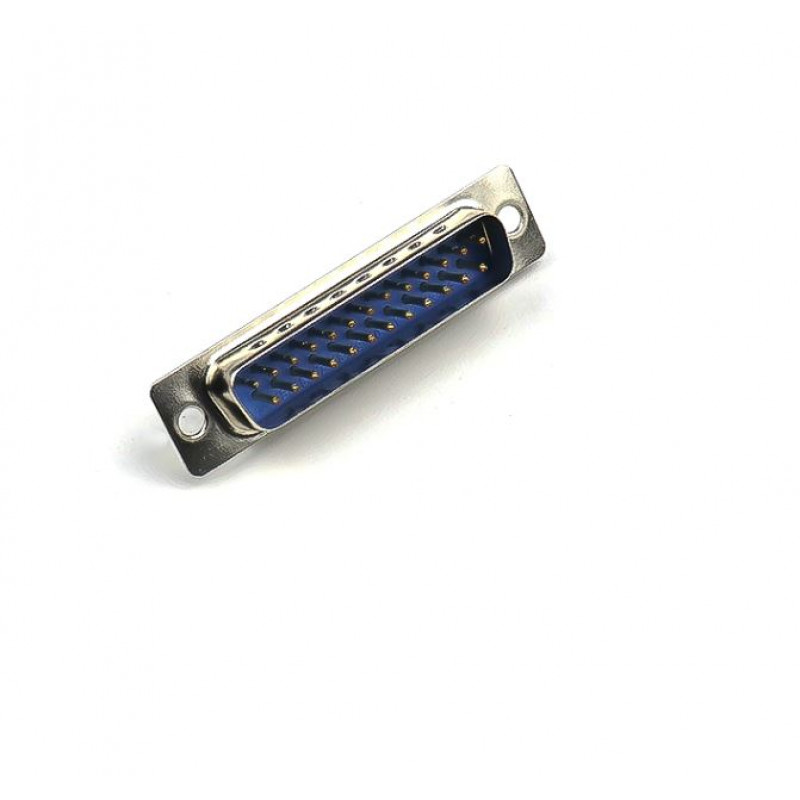

DB25 Male Welded Connector is the most common type of electrical connector. DB 25 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-25 pins are arranged in rows of two, as one thirteen-pin row above a twelve-pin row.
DB25 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB25 connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used on DB25 cable assemblies for data connectivity.
Today, the DB25 has mostly been replaced by more modern interfaces such as USB, PS/2, Firewire, and others. However, there are still many legacy devices that use the DB25 interface for serial communication.
Applications:
- Network ports.
- Computer video output.
- Game controller ports.
- Linear and rotary encoders in industries.
Features:

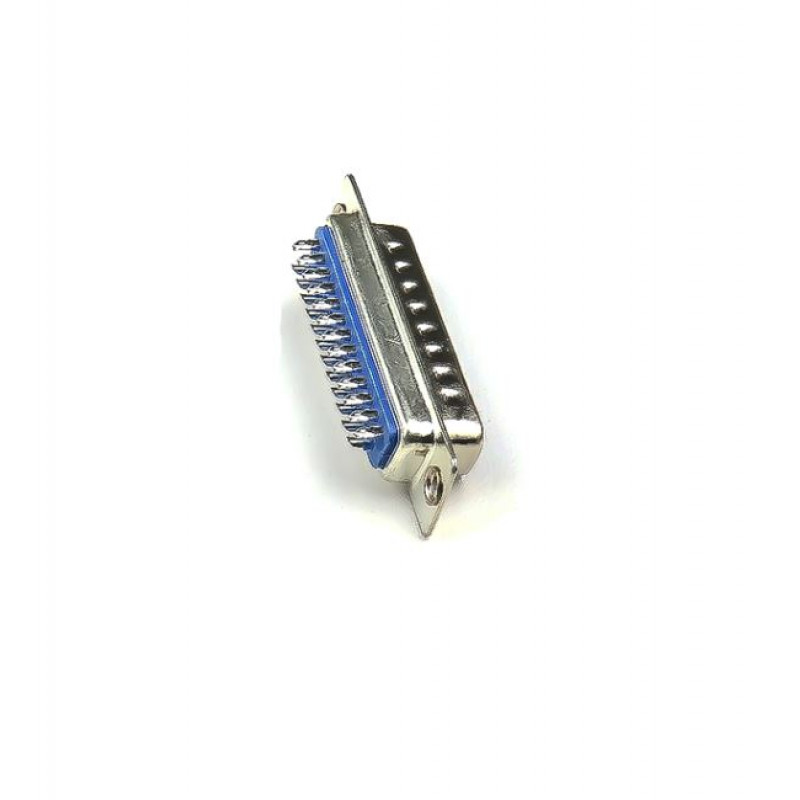

- Solder cup configuration for longevity.
- Nickel-plated terminals.
- Gold plated pins.
- Good quality.
Package Includes:
1 x DB25 Male Welded Connector
Specifications :-
| Connector Type | DB-25 |
| Connector | Male |
| Voltage Rating (V) | 250V AC |
| Current Rating (A) | 5 |
| Insulation Resistance (M) | 1000 |
| Contact Resistance | 20m |
| Operating Temperature Range (C) | -55 to 125 |
| Material | Metal and plastic |
| Length (mm) | 53 |
| Width (mm) | 12 |
| Height (mm) | 15 |
| Weight (gm) | 7 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 21.24 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DB25 Male Welded Connector - 25 Pin
- Product Code: EC-0626
- Availability: 4502
-
Rs.18.00
- (Excluding 18% GST)
