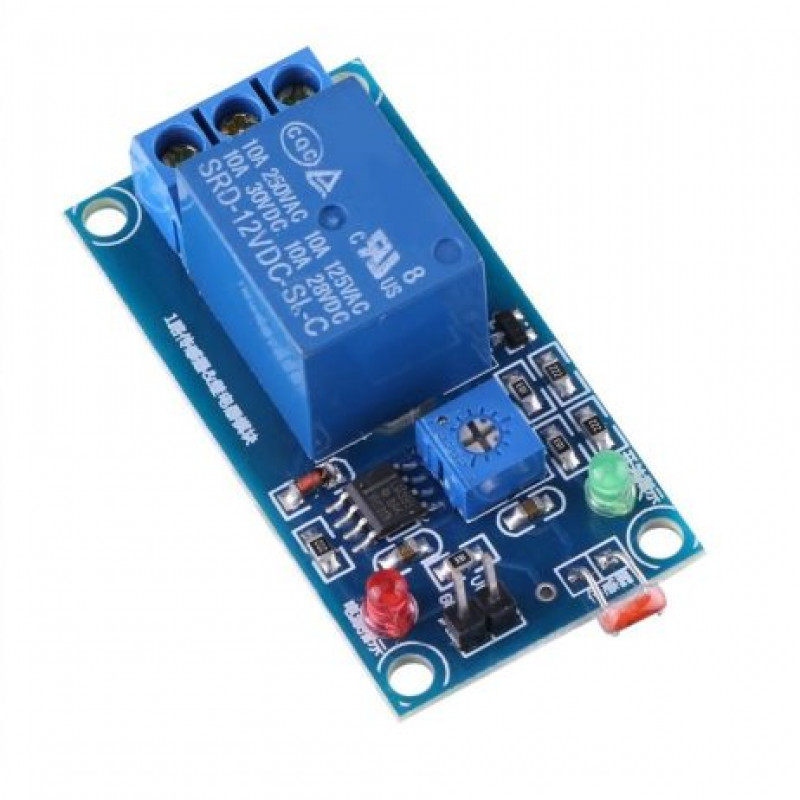

The DC 12V Light Control Switch Photoresistor Relay Module is a compact and efficient solution for automating lighting systems. With a built-in photoresistor, it intelligently detects ambient light levels, triggering the relay to control connected lights at 12V. This module ensures energy savings by automatically turning lights on in low-light conditions and off in sufficient brightness. Its straightforward design and reliable functionality make it an ideal choice for applications requiring automated lighting control, providing convenience and efficiency in various settings.

Features:

1. This switch uses a photoresistor to sense the intensity of light and a good-quality relay can directly control the load.
2. Adjust the potentiometer to change sensitivity and set the relay start threshold; when it is darker than the threshold, the relay is energized; when it is brighter than the threshold, the relay is de-energized.
3. 12V power supply input special for the relay, designed with a 78L05 regulated transistor, is more stable and reliable.
4. Optical coupling isolation drive relay can effectively protect the chip and ensure a better performance.
5. Widely used for light detection, brightness detection, all kinds of light detection switches, controlling street lamps, and automatic equipment.

Specifications:

1. Voltage: 12VDC
2. Current: >100mA
3. Load Capacity: 250V 10A ; Or 30V 10A DC
4. Current Type: DC
5. Contact Material: Metal
6. Relay type: SRD-05VDC-SL-C

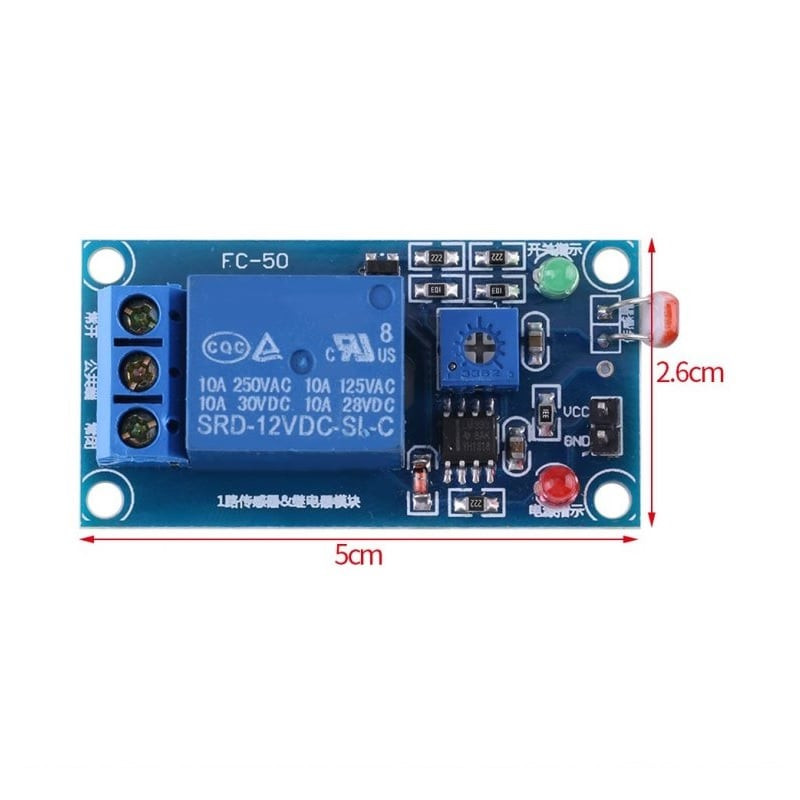

7. Product dimensions(mm):50 x 30 x 17.09
8. Weight: 15g

Package Includes:

1 x DC 12V Light Control Switch Photoresistor Relay Module
