2.54mm DC3 10 Pin Straight Male IDC Socket, is an IDC socket connector used to make physical connections in a variety of applications.They are common in industrial applications, where the accuracy of connections, the ability to make them reliable and where there may be many wires that need to be connected at once are all vital considerations.
This IDC product technology allows cost-effective connections between circuit boards based on a permanent connection (using transition connector) or removable connection (using IDC flat cable connectors).
Because these devices make such reliable connections, they are also ideally suited for environments where dust and other hazards may pose significant threats to electronic equipment. In situations where such equipment needs to be repaired, these connectors can drastically reduce the amount of time required to make those repairs, often reducing repairs to a simple swapping out of cables.
Features:
- Nickel-plated terminals.
- Good quality plastic.
- Ideal in a dusty or hazardous environment.
- Easy to repair.
- Widely used in industrial applications.
Package Includes:
1 x DC3 10 Pin 2.54mm Straight Male IDC Socket
Specifications :-
| Gender | Male |
| Current Handling Capacity (A) | 3 |
| No. of Contact Points | 10 |
| Connector Type | IDC |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Operating Temperature Range (C) | -40 to 105 |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Length (mm) | 20 |
| Width (mm) | 9 |
| Height (mm) | 9 |
| Weight (gm) | 1 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

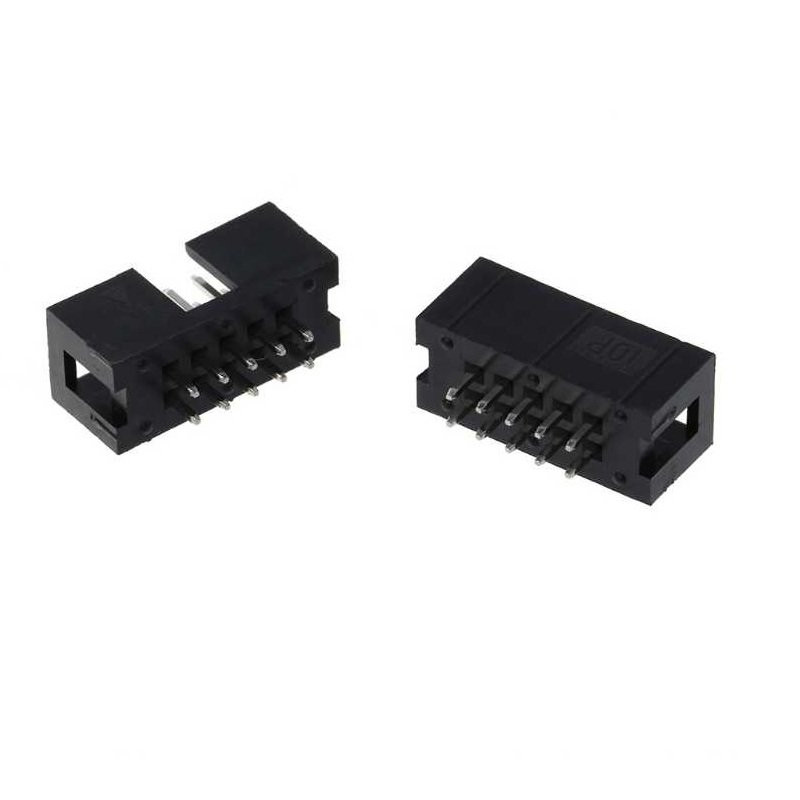

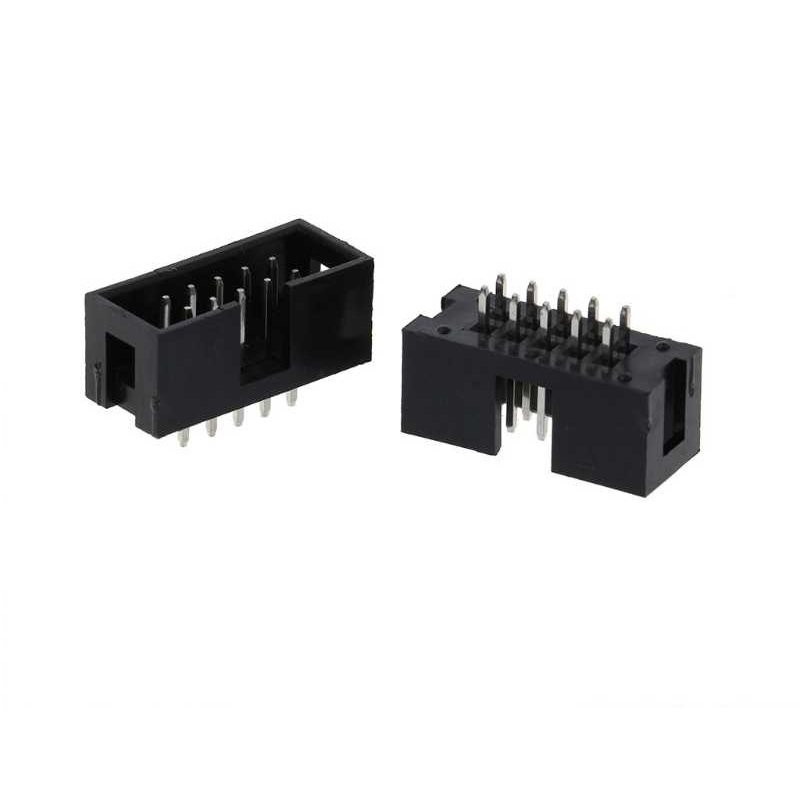

DC3 10 Pin 2.54mm Straight Male IDC Socket
- Product Code: EC-6424
- Availability: 38
-
Rs.15.00
- (Excluding 18% GST)
