The DG130-5.08-02P is a type of PCB (Printed Circuit Board) terminal block that is commonly used for electrical connections in electronic devices or machinery. This particular terminal block is designed with a pitch of 5.08mm, which refers to the distance between the center of each pin. It also has a green color for easy identification.

The terminal block is rated for a maximum current of 20A and a voltage rating of 250V. It is built to withstand high voltages and currents, making it a reliable and safe choice for electrical connections.

The connector method for this terminal block is a screw connector with a tension sleeve. This allows for easy and secure connection of wires, ensuring that they stay in place even in high-vibration environments.

The terminal block is designed to work with wires that have a cross-sectional area of 0.5-2.5mm. This means that it can accommodate a range of wire sizes and can be used for various applications.

In terms of the contact surface, the DG130-5.08-02P terminal block is coated with tin, which enhances its conductivity and resistance to corrosion. This ensures a stable and reliable electrical connection over time.

Features:

1. Rated current of 20A: The terminal block can handle a maximum current of 20 amperes, making it suitable for many applications.
2. Rated voltage of 250V: The terminal block is designed to work with a maximum voltage of 250 volts, which makes it suitable for many electronic devices and machinery.
3. The cross-sectional area of 0.5-2.5mm: The terminal block can accommodate wires with a range of sizes, making it versatile for various applications.
4. Pitch of 5.08mm: The distance between the center of each pin is 5.08mm, making it compatible with other devices that have the same pitch.
5. Connector method of screw connector with tension sleeve: The terminal block uses a screw connector with a tension sleeve, which makes it easy to connect and secure wires.
6. Color-coded green: The terminal block has a green color, which helps with easy identification and differentiation from other components.
7. Contact surface coated with tin: The contact surface of the terminal block is coated with tin, which enhances conductivity and protects against corrosion.

Specifications:

1. Rated current: 20A
2. Rated voltage: 250V
3. Cross-sectional area: 0.5-2.5mm
4. Pitch: 5.08mm
5. Connector method: Screw connector with tension sleeve
6. Color: Green
7. Contact surface: Tin-coated
8. Number of positions: 2
9. Mounting type: Through-hole
10. Termination: Solderable
11. Wire entry direction: 90
12. Housing material: Polyamide (PA)
13. Flammability rating: UL94V-0
14. Operating temperature range: -40C to +105C
15. Wire stripping length: 7mm

Package Includes:

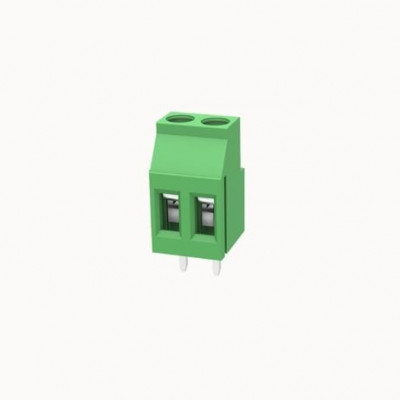

1 x Degson 2 Pin 5.08mm PCB Terminal Block
