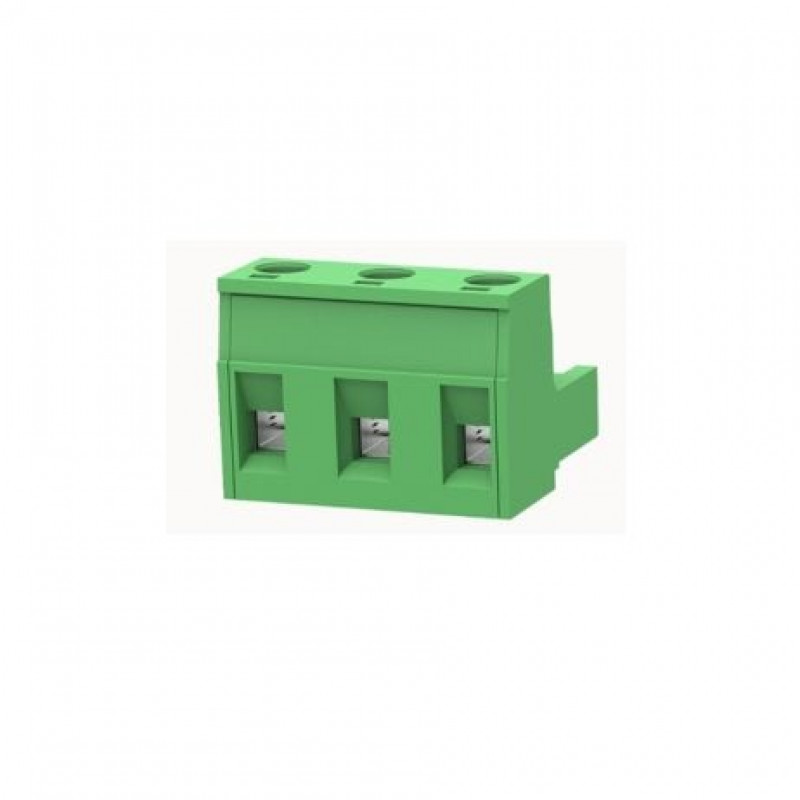

Degson 3 Pin 7.62 mm pitch Pluggable type PCB terminal block is a type of electronic component that provides a secure and reliable way to connect wires to printed circuit boards (PCBs). The 3 pin refers to the number of connections available on the terminal block. This means that up to eight wires can be connected to the terminal block.
The 7.62 mm pitch refers to the distance between each pin or connection. In this case, it is 7.62 mm, which means that each pin is spaced 7.62 mm apart from the next one. The pluggable type means that the terminal block is designed to be easily plugged and unplugged. This allows for easy maintenance and replacement of components, without the need for soldering or other complex procedures.
The Degson 2EDGK-7.62-03P 7.62mm pitch Pluggable type PCB terminal block is a versatile and convenient component that can be used in a wide range of electronic applications.
Specifications and Features:
- Number of pins: 3
- Pitch: 7.62 mm
- Rated voltage: 320V
- Rated current: 20A
- Wire range: 28-14 AWG
- Contact resistance: 40m max
- Operating temperature range: -40C to 105C
- Material: Housing: PA44, UL94V-0
- Contact: Brass, Tin-plated
Package Includes:
1 x Degson 3 Pin 7.62 mm pitch Pluggable type PCB terminal block
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Degson 3 Pin 7.62 mm Pitch Pluggable type PCB Terminal Block
- Product Code: EC-21703
- Availability: 97
-
Rs.26.00
- (Excluding 18% GST)
