Degson Pluggable terminal blocks are electrical connectors that offer a secure and efficient way to connect and disconnect wires. These terminal blocks have a rated current of 10A and a rated voltage of 320V (III/2), making them suitable for a wide range of applications in the electrical industry.
The pitch between the terminals is 5.08mm, which allows for easy wiring and space-saving. The blocks come in a distinctive green color, which aids in easy identification during installation and maintenance. The contact surface of these terminal blocks is made of tin, which ensures optimal conductivity and resistance to corrosion. Degson Pluggable terminal blocks are a reliable solution for all your electrical connection needs.
Specifications:
- Rated current: 10A
- Rated voltage: 320V (III/2)
- Pitch: 5.08mm
- Color: Green
- Contact surface: Tin
- Wire range: 26-14 AWG
- Contact resistance: 20m
- Insulation resistance: 500M
- Withstanding voltage: AC1500V/1Min
- Temperature range: -40 to +105
Package Includes:
1 x Degson 5 Pin 5.08 mm Pitch Pluggable Terminal Block
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

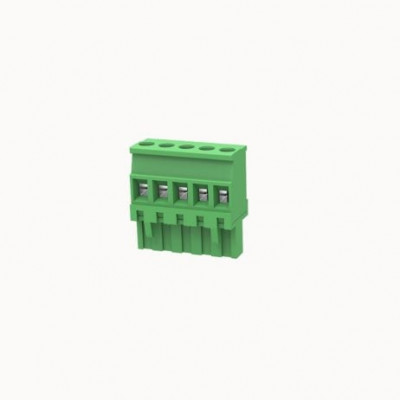

Degson 5 Pin 5.08 mm Pitch Pluggable Terminal Block
- Product Code: EC-21702
- Availability: 248
-
Rs.40.00
- (Excluding 18% GST)
