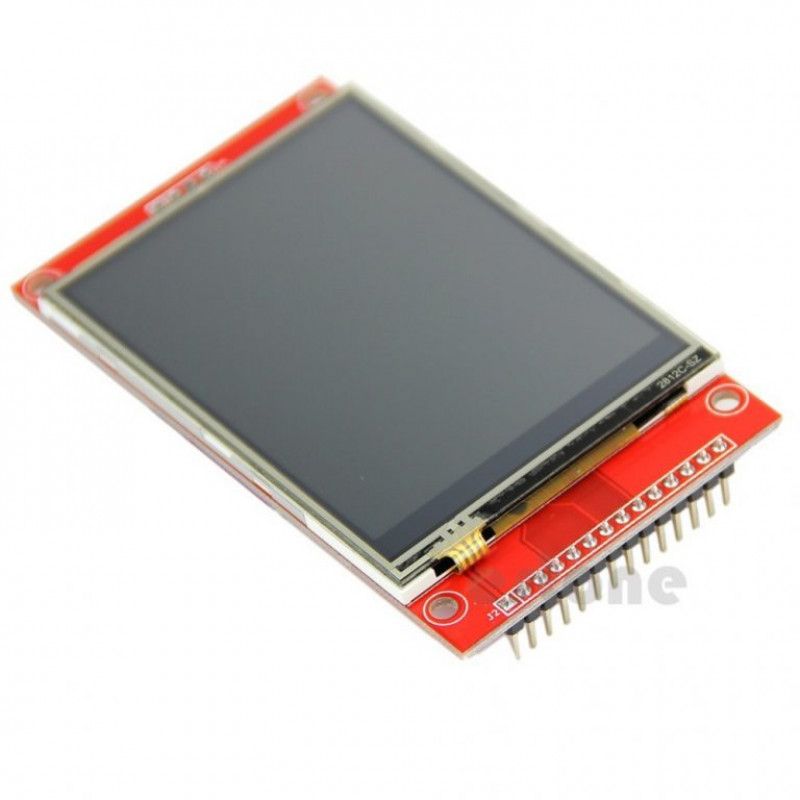

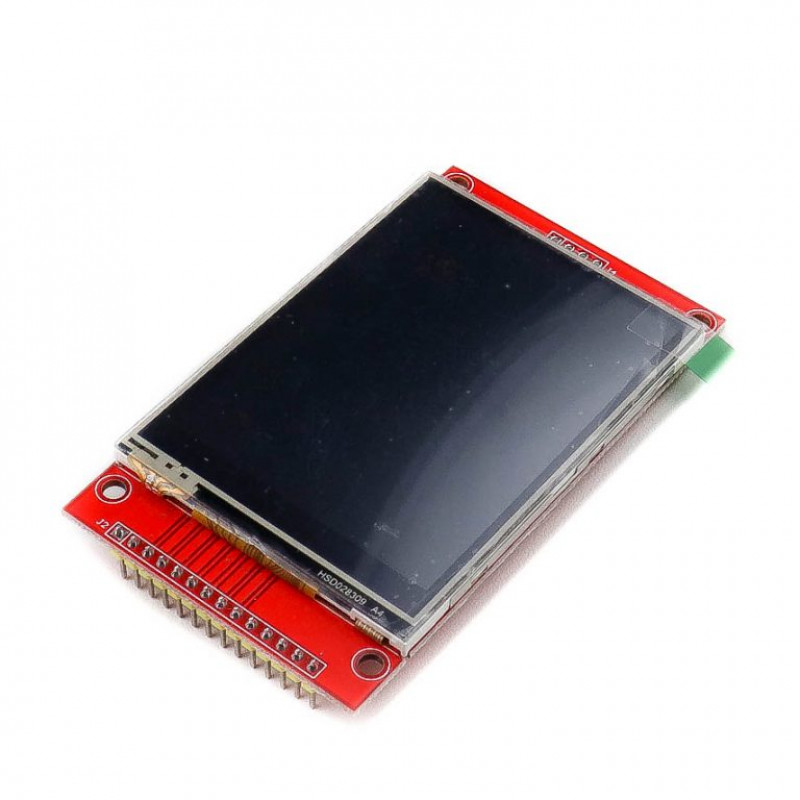

This TFT display is big (2.8 diagonal) bright and colorful! 240x320 pixels with individual RGB pixel control, this has way more resolution than a black and white 12864 display. It Works well with Arduino and other micro-controller boards.

As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.

The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you'll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than the 8-bit mode. In addition, 4 pins are required for the touchscreen (2 digital, 2 analogs).

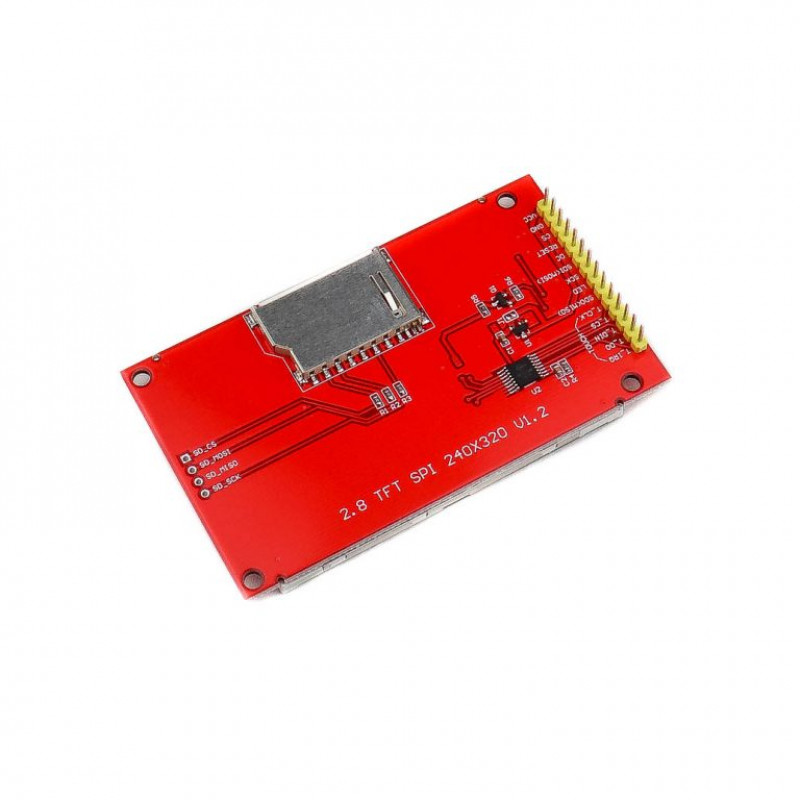

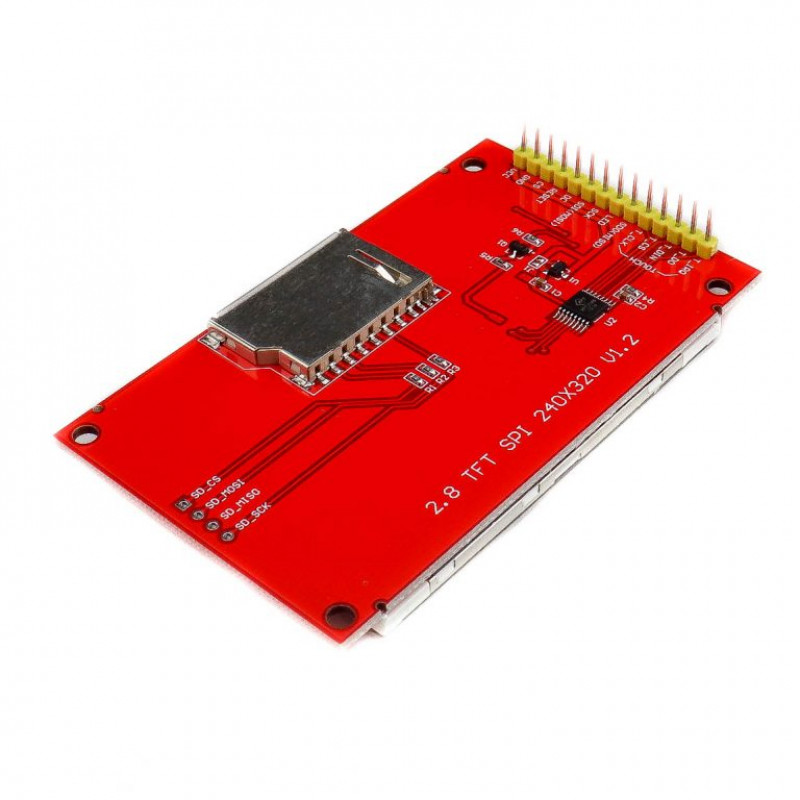

This 2.8 inch SPI Touch Screen Module is wrapped up into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use with any microcontroller. If you're going with SPI mode, you can also take advantage of the onboard Micro SD card socket to display images.


Features :

  1. It shows the color depth of262K/65K.
  2. Need at least 4 IOs from your MCU
  3. The display has a wide viewing angle.
  4. Big display with good resolution.

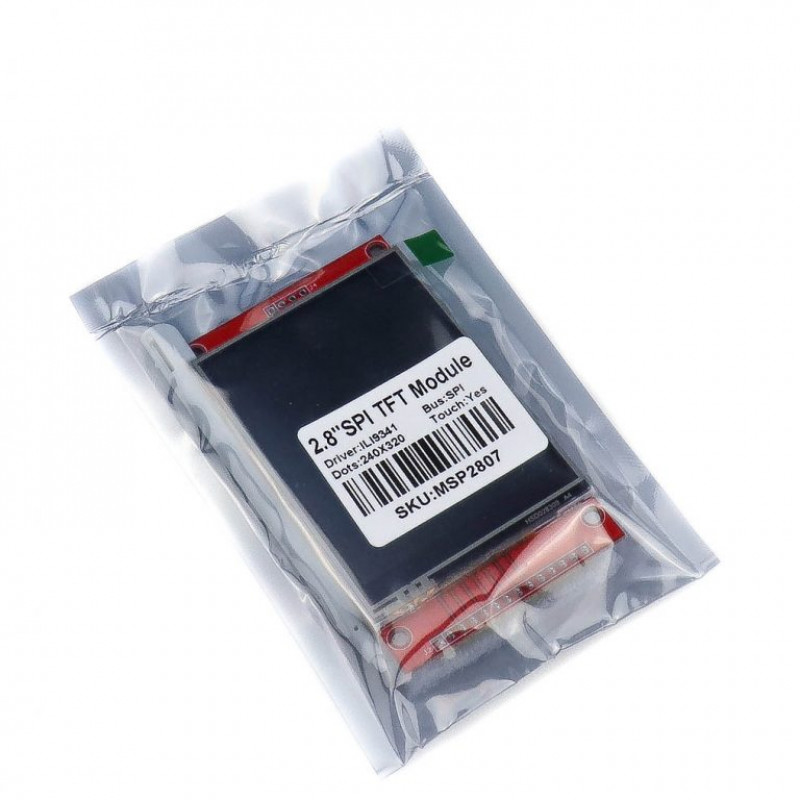

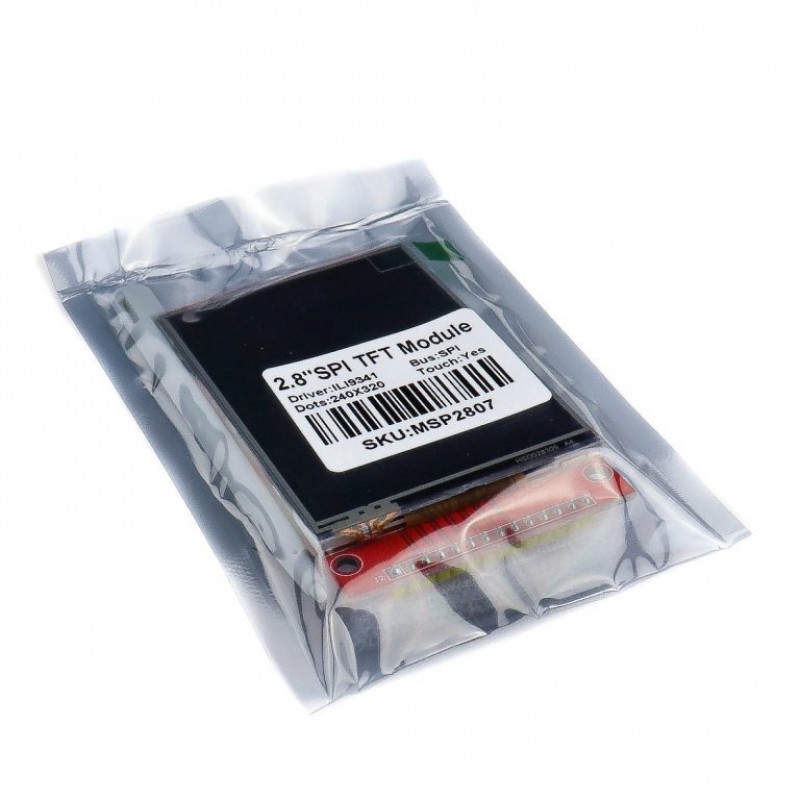

Package Includes :

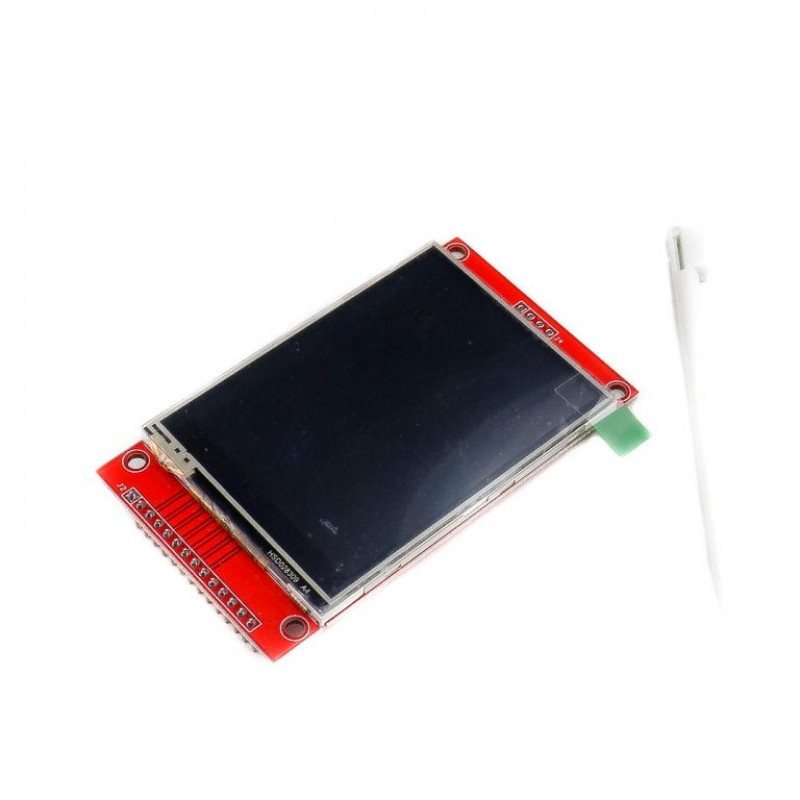

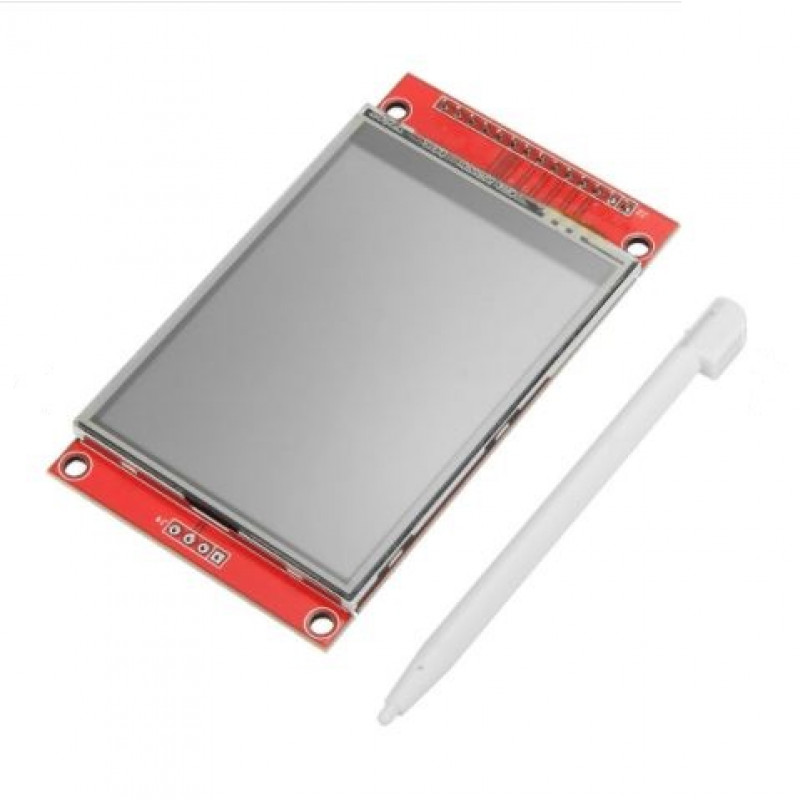

1 x 2.8 inch TFT Touch Screen Display Module with SPI Interface 240x320

1 x Stylus Pen


Additional information

Driver IC

ILI9341

Touch Type

Resistive

Input Voltage (V)

3.3 to 5

Pixel Resolution

240 x 320

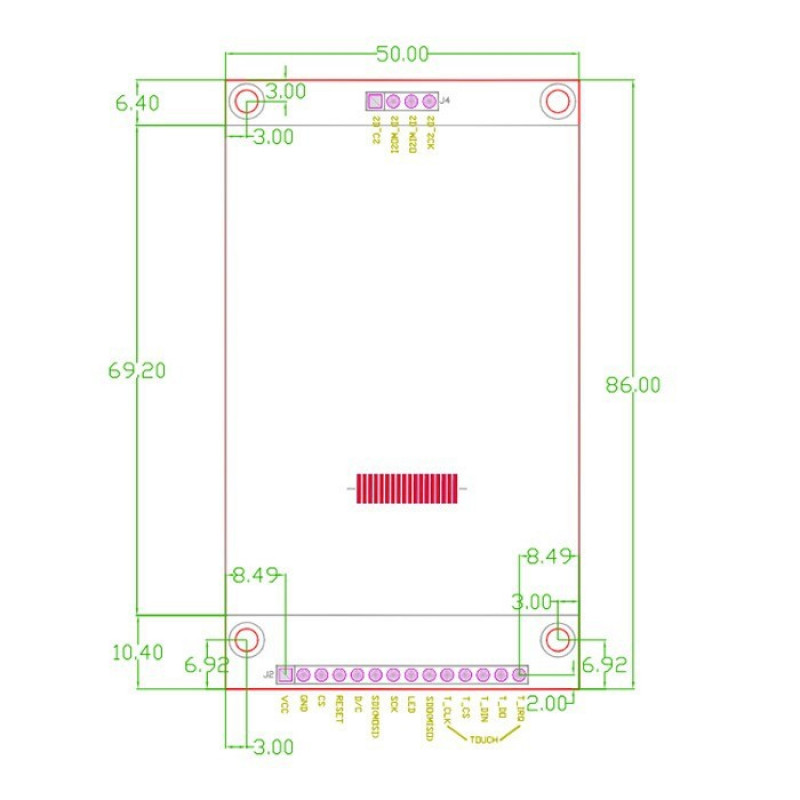

PCB Size ( L x W ) mm

85 x 48

Display Size (inch)

2.8


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1532.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

2.8 inch TFT Touch Screen Display Module with SPI Interface 240x320

  • Product Code: EC-5022
  • Availability: 9
  • Rs.1299.00
  • (Excluding 18% GST)
