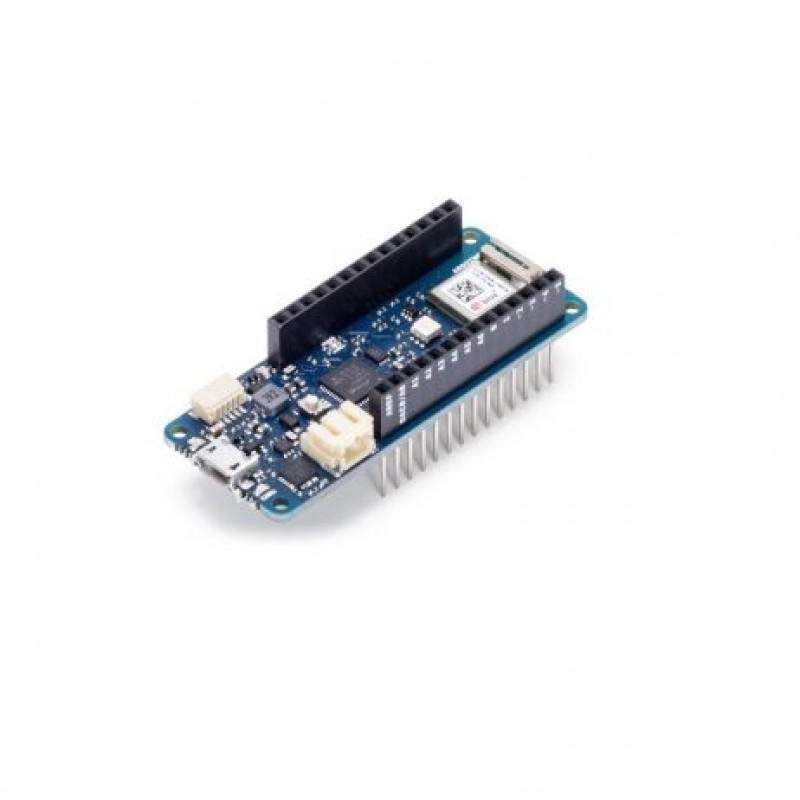

  • Original Arduino MKR Wifi 1010 Board

The Arduino MKR WiFi 1010 is the easiest point of entry to basic IoT and pico-network application design. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the MKR WiFi 1010 is your one-stop-solution for many of the basic IoT application scenarios.

The MKR WIFI 1010 is a significant improvement on the MKR 1000 WIFI. Its equipped with an ESP32 module made by U-BLOX. This board aims to speed up and simplify the prototyping of WiFi-based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption.

Pinout diagram:

This thin board has been designed to offer a practical and cost-effective solution for makers to design IoT projects with minimal previous experience in networking. It is based on the low power Arm Cortex-M0 32-bit SAMD21, which is part of the Arduino MKR family. Wireless devices specifically designed for the Internet of Things (IoT).


Features:

  1. Digital I/O Pins: 8
  2. PWM Pins: 12
  3. Flash Memory: 256 KB
  4. SRAM: 32 KB
  5. Microcontroller: SAMD21 Cortex-M0+ 32-bit low-power ARM MCU
  6. Board Power Supply (USB/VIN): 5V
  7. Full-speed USB device and embedded host
  8. Pre-mounted headers with pin-out


Package Includes:

1 x Original Arduino MKR Wifi 1010 Board


Additional information

Microcontroller

SAMD21 Cortex-M0+ 32bit low power ARM MCU (datasheet)

Radio module

u-blox NINA-W102 (datasheet)

Board Power Supply

5V (USB/VIN)

Secure Element

ATECC508 (datasheet)

Supported Battery

Li-Po Single Cell, 3.7V, 1024mAh Minimum

Circuit Operating Voltage

3.3V

Digital I/O Pins

8

PWM Pins

13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)

Interface

1 x UART
1 x SPI
1 x I2C

Analog Input Pins

7 (ADC 8/10/12 bit)

Analog Output Pins

1 (DAC 10 bit)

External Interrupts

8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2)

DC Current per I/O Pin

7 mA

Memory

CPU Flash Memory 256 KB (internal)
SRAM 32 KB
EEPROM no

Clock Speed

32.768 kHz (RTC), 48 MHz

LED_BUILTIN

6

Length (mm)

61.5 mm

Width (mm)

25 mm

Weight (gm)

32


Brand/Manufacturer Arduino
Country Of Origin Italy
