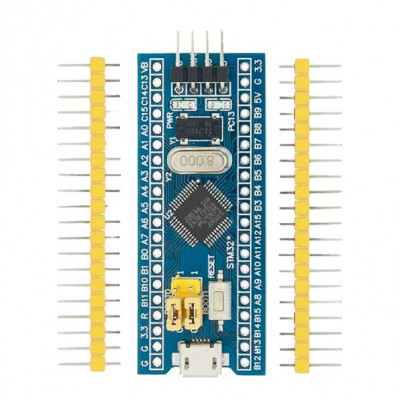

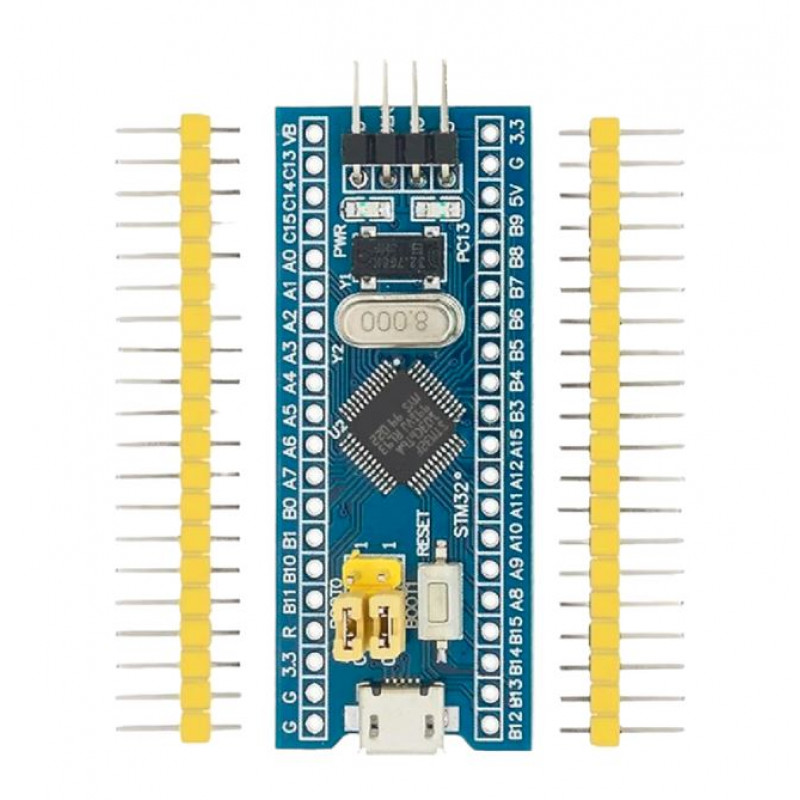

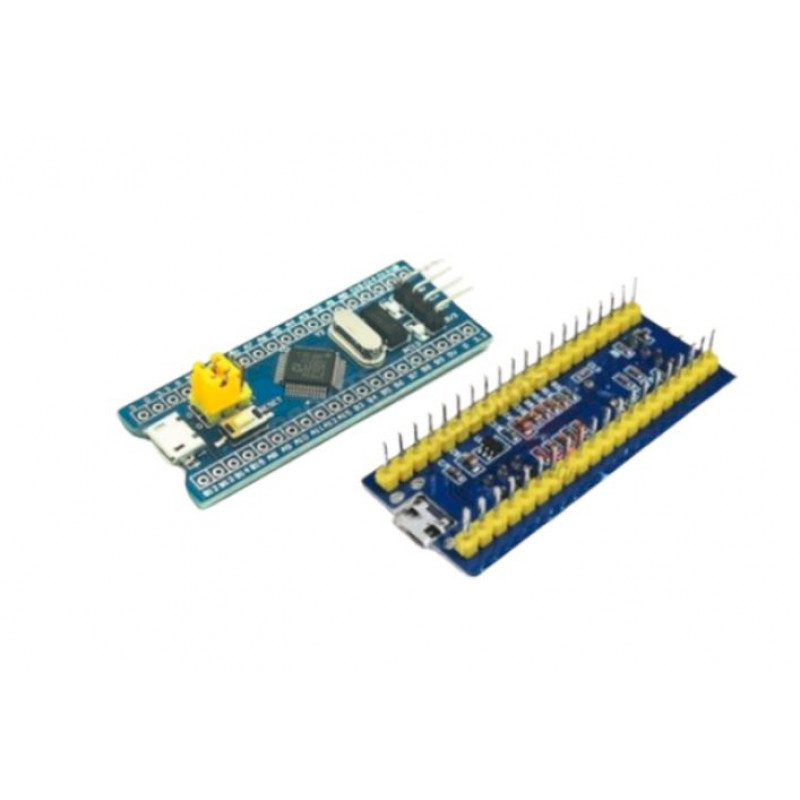

This is STM32F103C6T6 Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C6T6. Board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M3 32-bit core.
Board is suitable for learners that want to learn STM32 microcontroller with ARM Cortex-M3 32-bit core.
Features and Specifications:
- Onboard Mini USB interface, you can give the board power supply and USB communication.
- 72MHz work frequency
- 32KB flash memory, 20K SRAM
- 2.0-3.6V power, I/O
- Reset(POR/PDR)
- 4-16MHz crystal
- 32 kHz oscillator for RTC with calibration
- Up to 2 x I2C interfaces (SMBus/PMBus)
- Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
- Up to 2 SPIs (18 Mbit/s)
- CAN interface (2.0B Active)
Package Includes:
1 x STM32F103C6T6 Minimum System Development Board STM32 ARM Core Module
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
STM32F103C6T6 Minimum System Development Board STM32 ARM Core Module
- Product Code: EC-10298
- Availability: 1082
-
Rs.175.00
- (Excluding 18% GST)
