The BeagleBone Blue is a robotics controller built around the BeagleBone open hardware computer. It is Linux enabled and is community supported and fully open source, High performance, flexible networking capabilities are coupled with a real-time capable Linux system and a compelling set of peripherals for building mobile robots quickly and affordably. Utilizing the pre-configured WiFi access point, starting your code development is as simple as connecting a battery and opening your web browser.

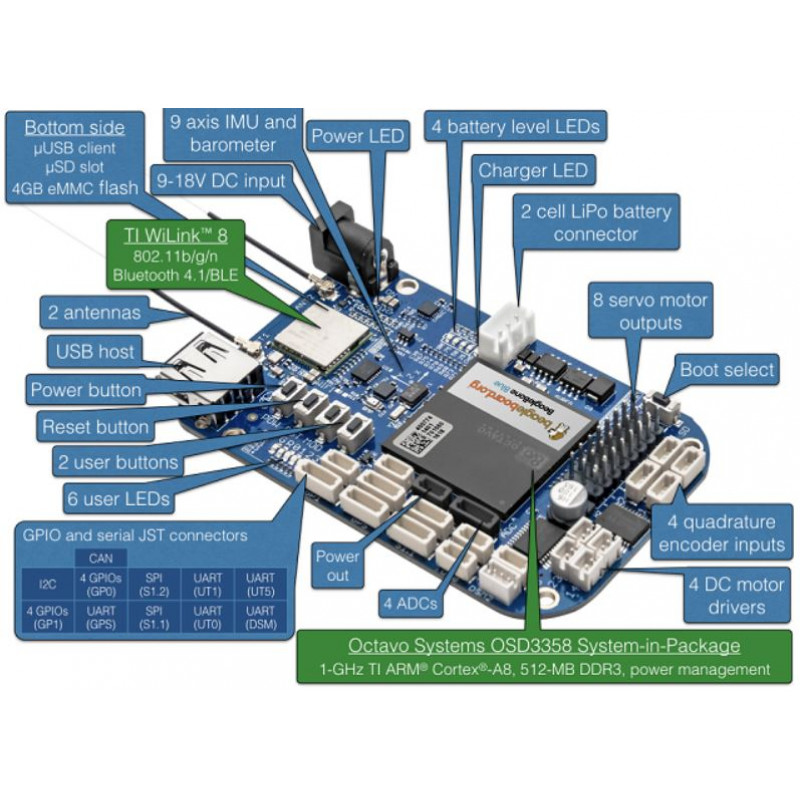

Specifications of BeagleBone Blue Robotics Controller Board:-
- AM335x 1GHz ARM Cortex-A8
- SGX530 Graphics accelerator
- NEON floating-point accelerator
- 2x PRU 32-bit 200MHz PRUs
- 512MB DDR3 800MHZ RAM
- 4GB Embedded eMMC flash storage
- Wi-Fi 802.11 b/g/n, Bluetooth 4.1 and BLE enabled
- USB 2.0 client and host ports
- MicroSD card slot
- Features 9-axis IMU and barometer sensors

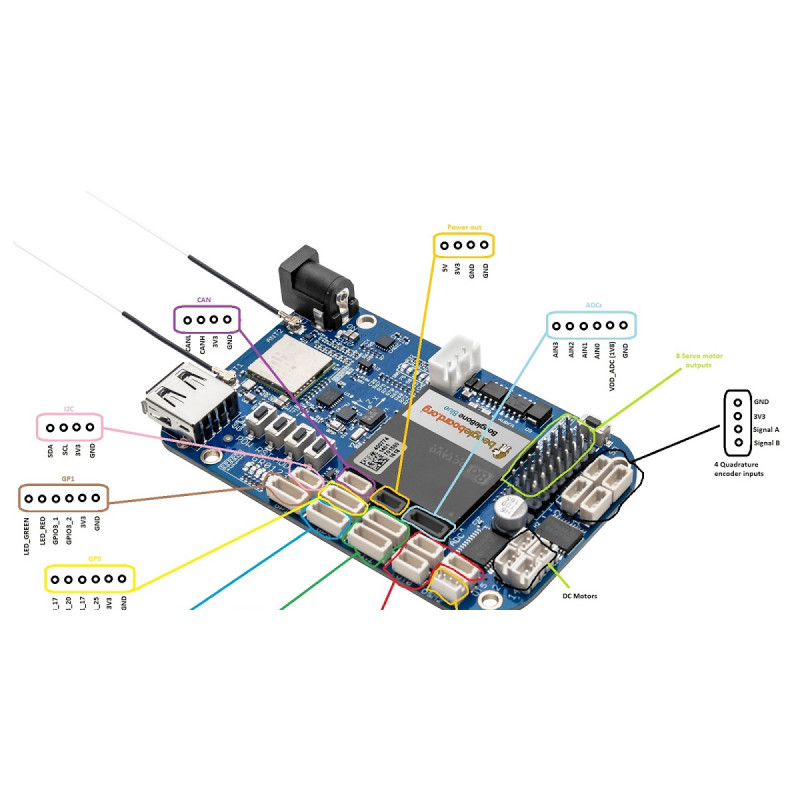

- Motor control: 8x 6V servo outputs, 4x DC motor outputs, 4x quadrature encoder inputs
- Software compatibility: Debian, Ardupilot, ROS and Cloud9
Datasheet:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 8614 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

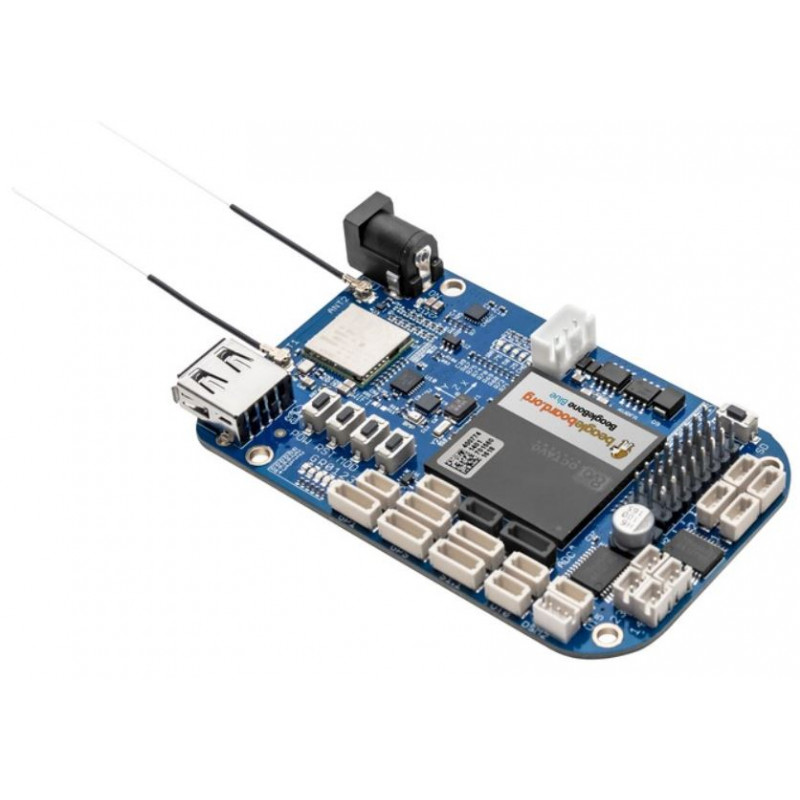

BeagleBone Blue Robotics Controller Board
- Product Code: EC-4586
- Availability: 4
-
Rs.10849.00
- (Excluding 18% GST)
