M5 Stack BASIC Kit, like its namesake, is a starter kit among the M5Stack development kit series. Its a modular, stackable, scalable, and portable device which is powered with an ESP-32 core, which makes it open-source, low cost, full-function, and easy for developers to handle new product development on all stages including circuit design, PCB design, software, mold design, and production. This Basic Kit provides a friendly price and full-featured resources which makes it a good starter kit for you to explore IoT.
If you want to explore the fastest way of IoT prototyping, the M5Stack development board is the perfect solution. Not like others, the M5Stack development board is highly efficient, covered with industrial-grade case and ESP32-based development board. It integrates with Wi-Fi & Bluetooth modules and contains a dual-core and 16MB of SPI Flash. Together with 30+ M5Stack stackable modules, 40+ extendable units, and different levels of program language, you can create and verify your IoT product in a very short time.
Supportive development platforms and programming languages: Arduino, Blockly language with UIFlow, Micropython. Regardless of what level of programming skill you have, M5Stack would guide you in every step of the way to realize your idea as well as to the final productization. e If you ever played with ESP8266, you would realize that ESP32 is a perfect upgrade out of ESP8266. In comparison, ESP32 has more GPIOs, more analog inputs, and two analog outputs, multiple extra peripherals( like a spare UART ). Official developing platform ESP-IDF has transplanted with FreeRTOS. With dual-core and real-time OS, you can get more organized code and a much high-speed processor.

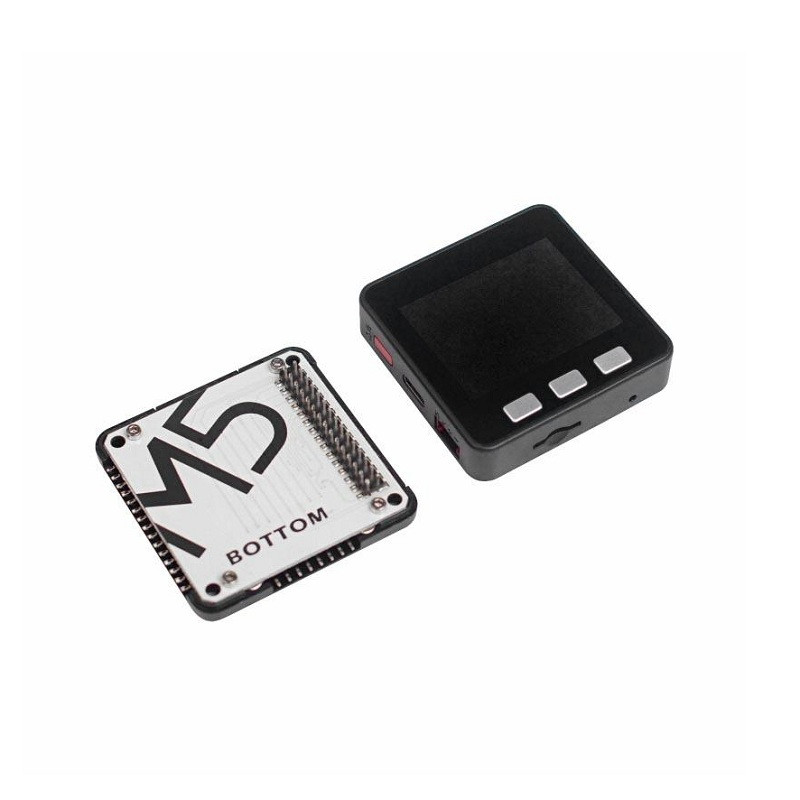

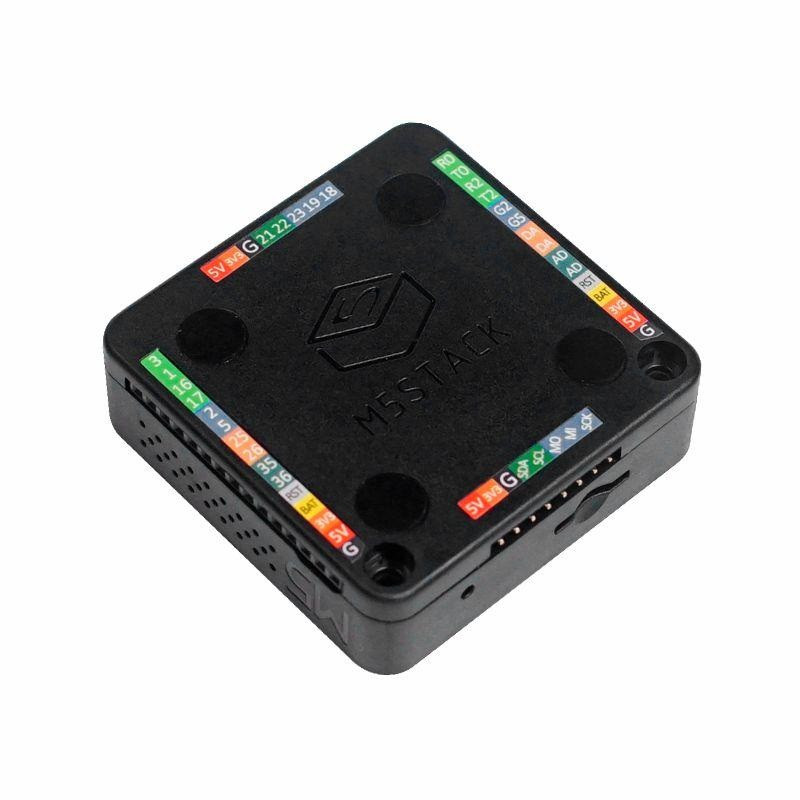

M5Stack Basic has consisted of two separable parts. The upside part has all kinds of processors, chips, and some other slot components. The bottom part has a lithium battery, an M-BUS socket, and extendable pins on both sides.
Applications:
- Internet of things terminal controller
- Stem education product
- DIY creation
- Smart home equipment
Features:
- ESP32-based
- Built-in Speaker, Buttons,Color LCD, Power/Reset button
- TF card slot (16G Maximum size)
- Magnetic suction at back
- Extendable Pins & Holes
- M-Bus Socket & Pins
- Program Platform: UIFlow, MicroPython, Arduino

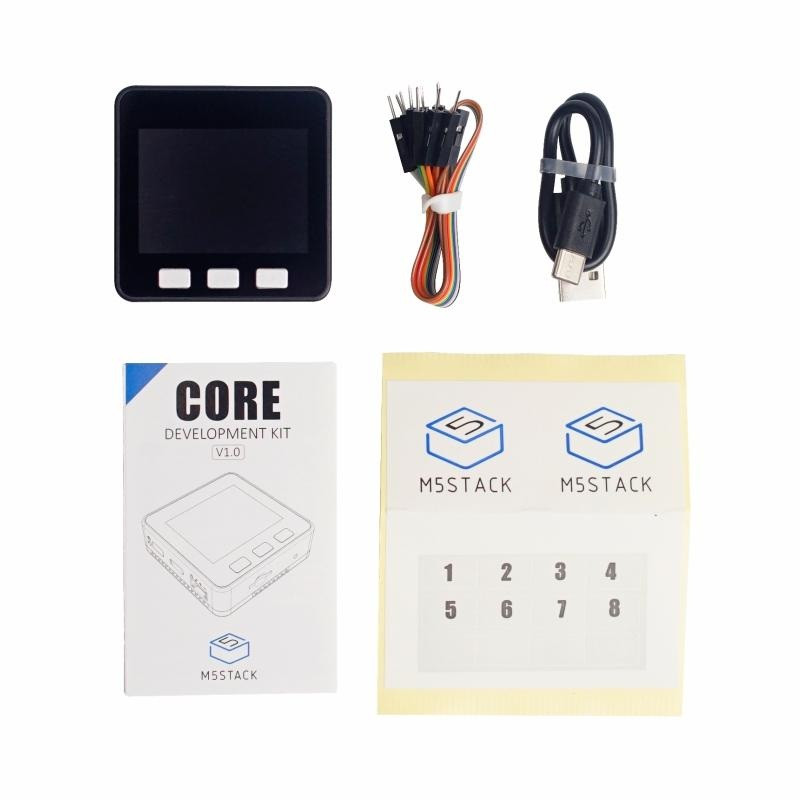

Package Includes:
1 x ESP32 Basic Core IOT Development Kit
10x Dupont Cable
1x Type-C USB(20cm)
1x User Manual
1x Sticker
Specifications :-
| Memory | 16MB Flash |
| Operating Voltage (VDC) | 5 |
| Operating Current (A) | 0.5 |
| Cable Length (cm) | 20 |
| Interface | GROVE(I2C+I/0+UART) x 1 |
| Core Bottom Port | PIN (G1G2G3G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36) |
| Speaker | 1W-0928 |
| Battery | Lithium Battery 110mAh @ 3.7V |
| Operating Temperature (C) | 0 to 40 |
| Length (mm) | 54 |
| Width (mm) | 54 |
| Height (mm) | 18 |
| Weight (gm) | 47 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 4364.82 (Inclusive of all Taxes) |
