PIR is a human body infrared unit. It belongs to the passive pyroelectric infrared detector. It detects the infrared radiation emitted and reflected by the human body or object. When infrared is detected, the output level is high and it takes a while. Delay (high during the period and allow repeated triggers) until the trigger signal disappears (restores low). This Unit communicates with the M5Core via GROVE B.
Applications:
- Human body Induction Lamp
- Security Product
- Automatic Induction Appliance Settings
Note: This Unit has 2s delay time
Features:
- Detects the distance: 500cm
- latency time: 2s
- Sensing range: < 100
- Quiescent current: < 60uA
- Operating temperature: -20 80 C

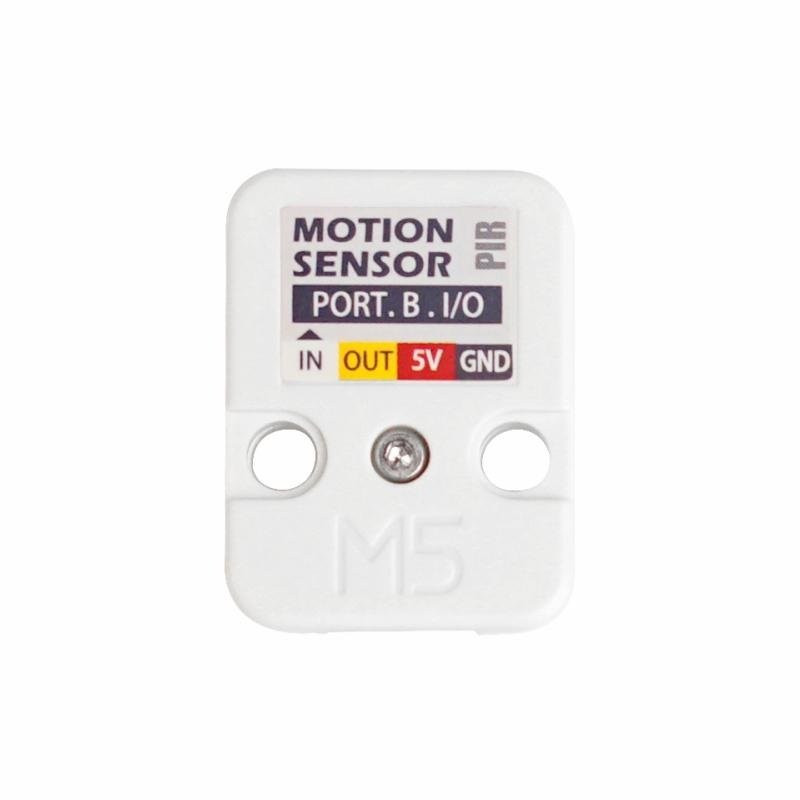

- GROVE interface, support UIFlow, and Arduino
- Two Lego installation holes

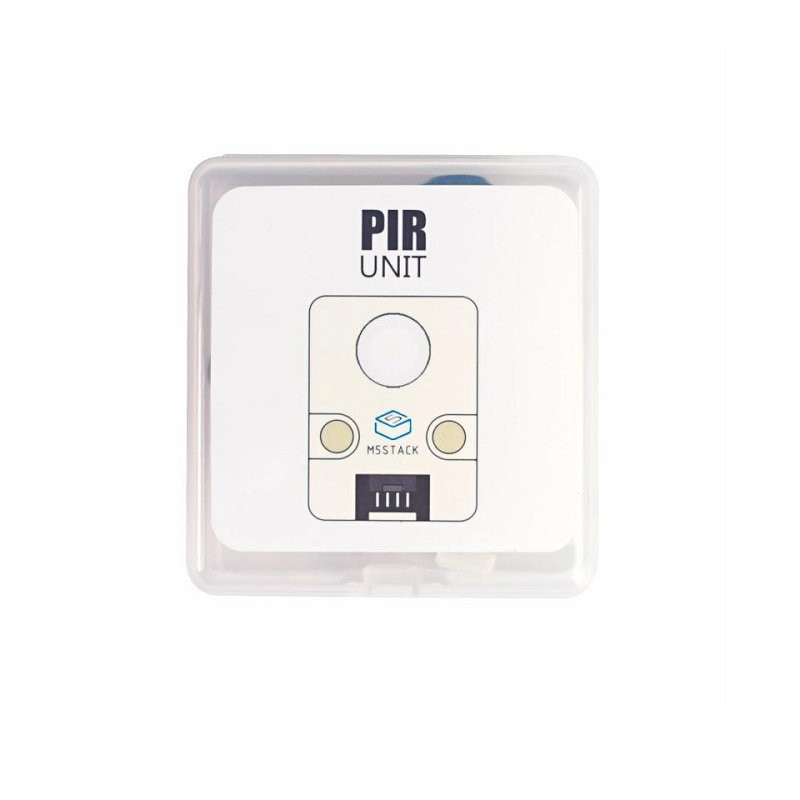

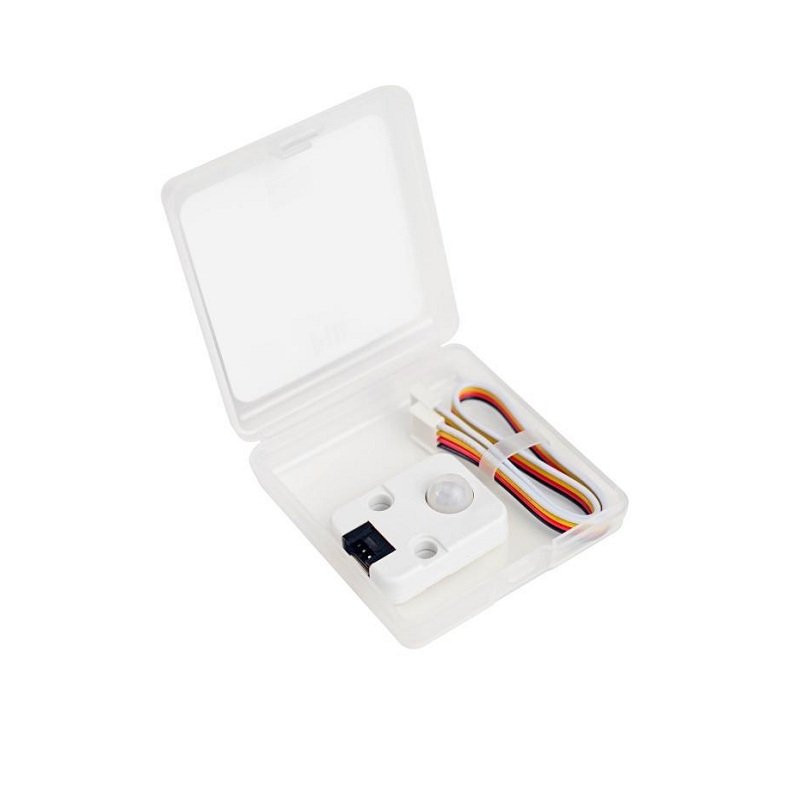

Package Includes:
1x M5 Stack PIR Motion Sensor
1x GROVE Cable (20cm)
Specifications :-
| Latency Time | 2 Sec |
| Cable Length (cm) | 20 |
| Sensing Range | < 100 |
| Quiescent Current | < 60uA |
| Operating Temperature (C) | -20 to 80 |
| Length (mm) | 32 |
| Width (mm) | 24 |
| Height (mm) | 12 |
| Weight (gm) | 5 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 494.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

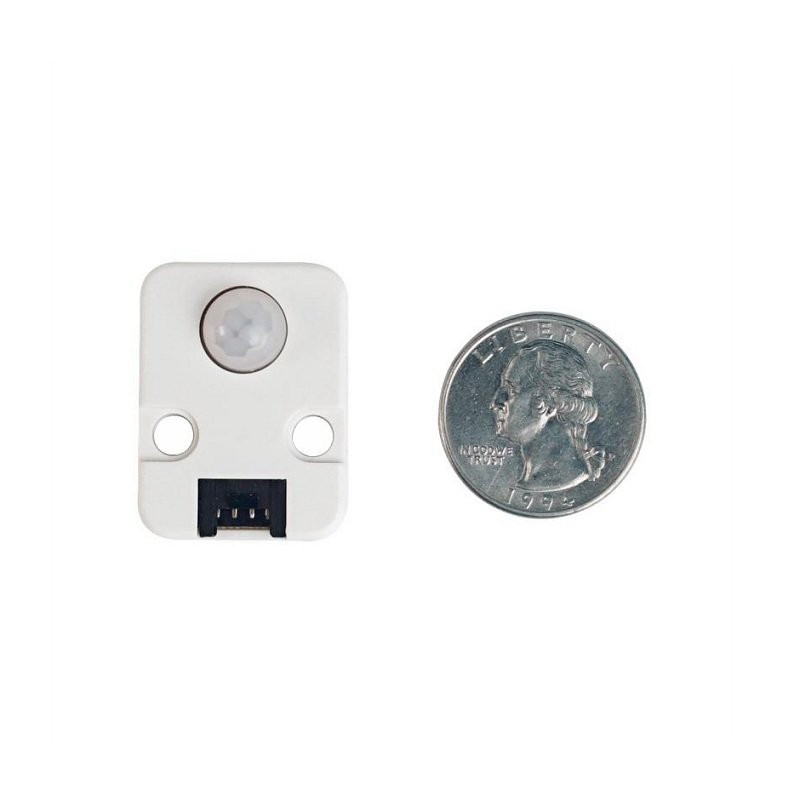

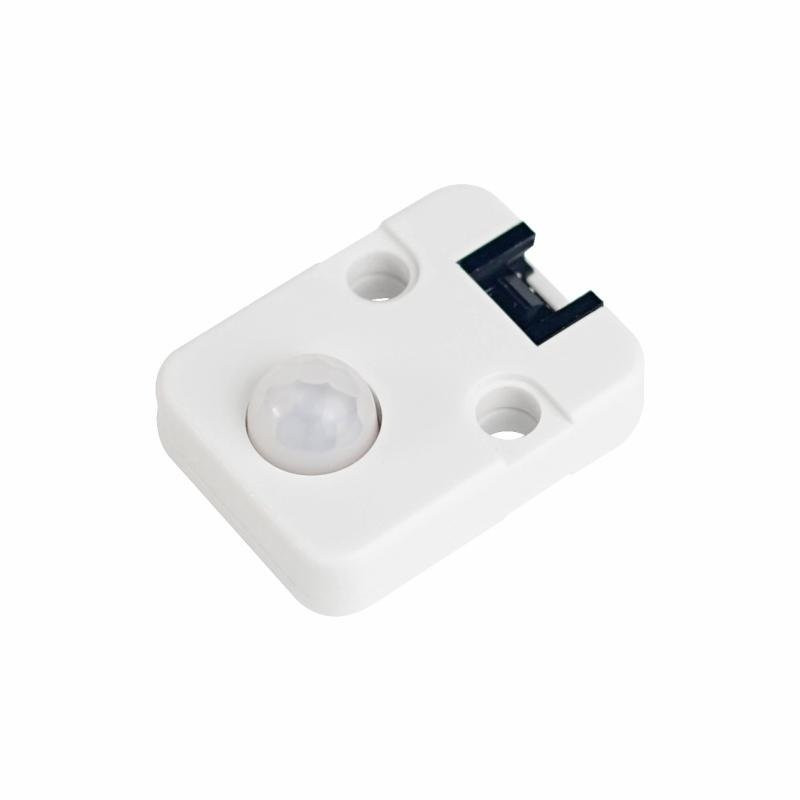

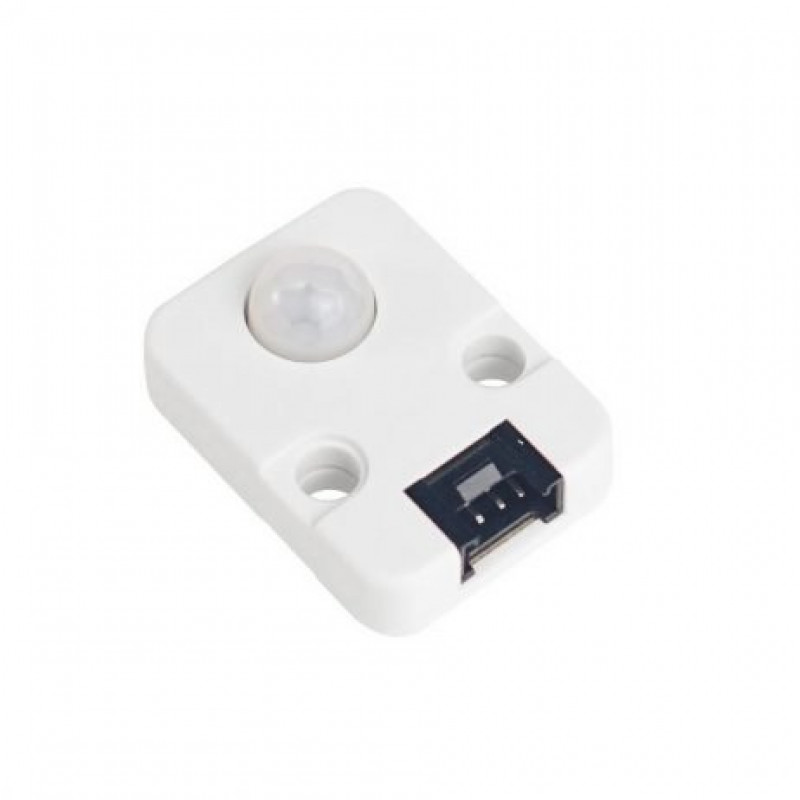

M5 Stack PIR Motion Sensor
- Product Code: EC-8278
- Availability: 13
-
Rs.457.00
- (Excluding 18% GST)
