The micro: bit on its own has three digital/analog input/output rings available for you to use initially with alligator clips. With the micro: bit breakout we have broken out all 21 GPIO, power, and ground-to-pin outs in a 0.1 formation. With this breakout, you will be able to unlock the full potential of your micro: bit!
Features:
- Extend the functionality of the micro: bit beyond what is already on the board through breakout or General Purpose Input Output (GPIO) expansion board.
- A T-shaped expansion board gives you numerous options with the additional port for USB.
- 5v power supply port available.
- All pins are clearly labeled for expansion. Compatible with 420 points and 840 point breadboard.
Package Includes:
1 x Micro: bit T-type GPIO Board
Specifications:
| Expansion Board Type | T-type GPIO Board |
| GPIO Pins | 21 GPIO Pins |
| Connection Type | 0.1-inch space headers |
| Mounting Holes Diameter (mm) | M3 |
| Length (mm) | 70 |
| Width (mm) | 15 |
| Height (mm) | 65 |
| Weight (gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 344.56 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

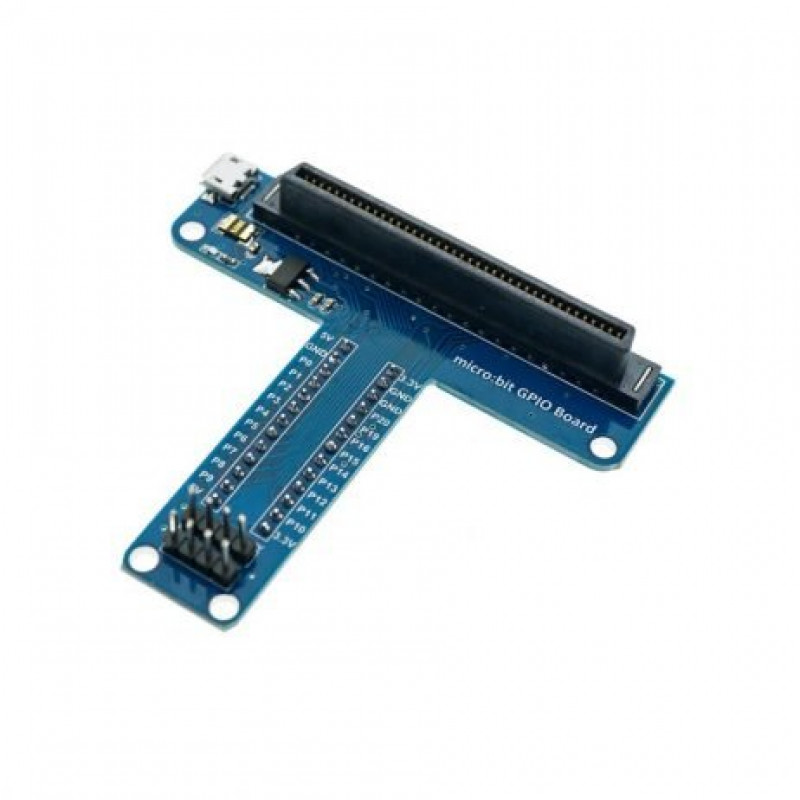

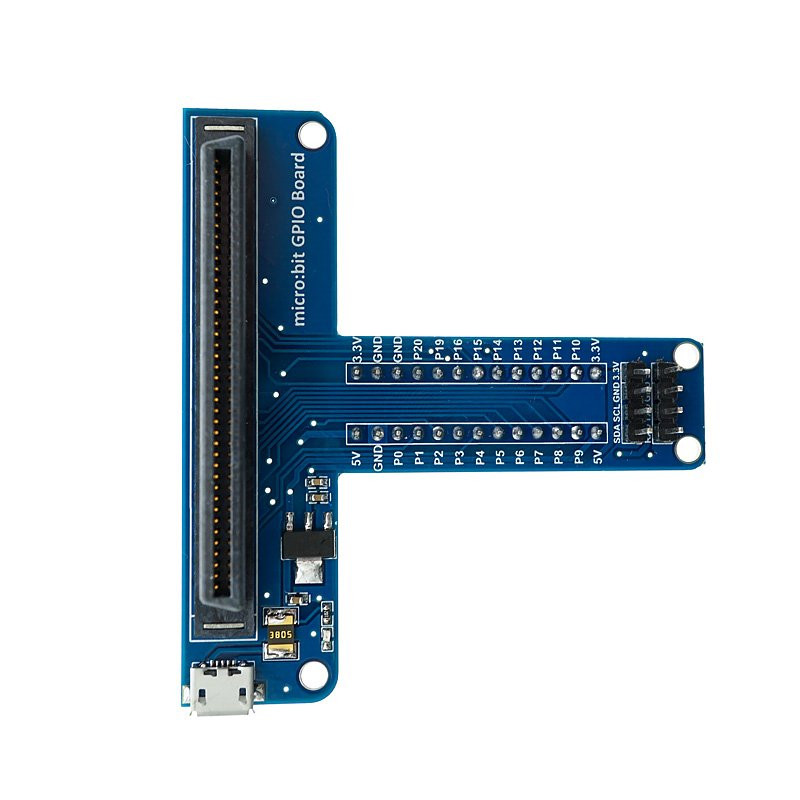

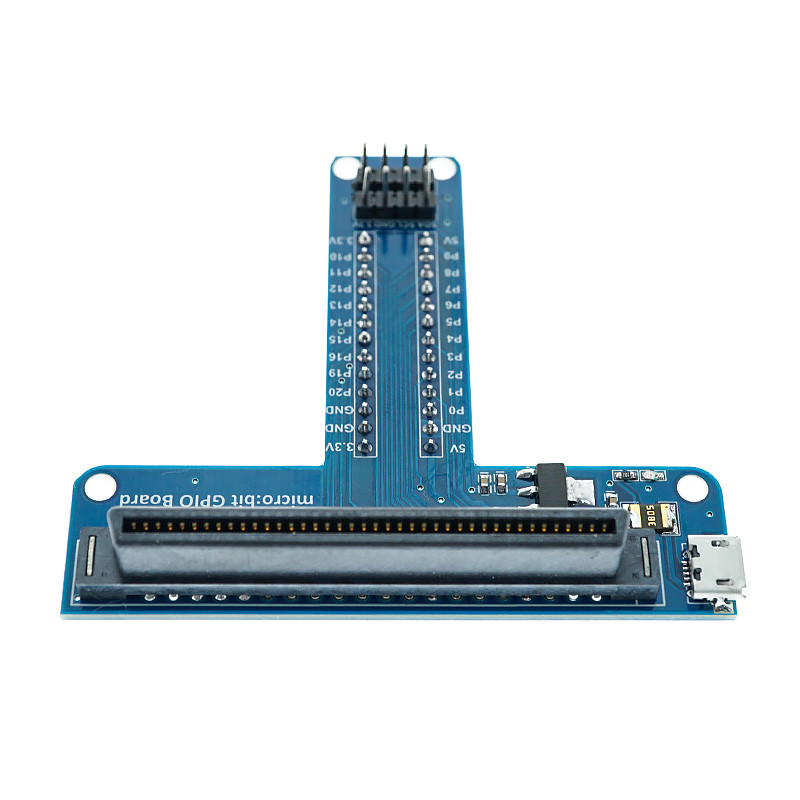

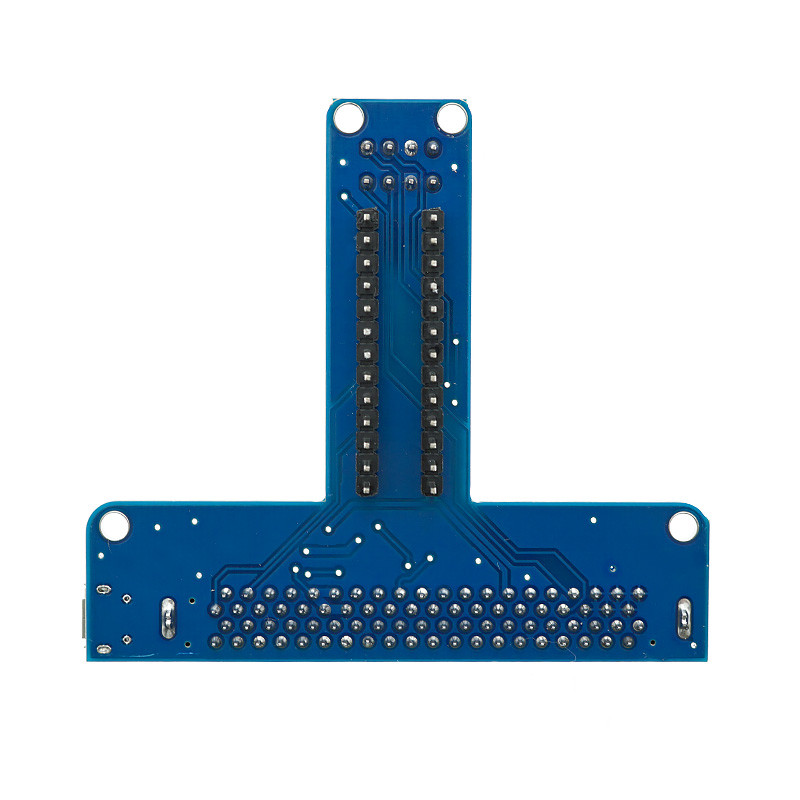

Micro:bit T-type GPIO Board
- Product Code: EC-5674
- Availability: 6
-
Rs.237.00
- (Excluding 18% GST)
