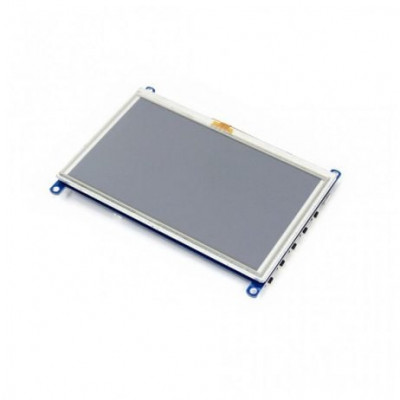

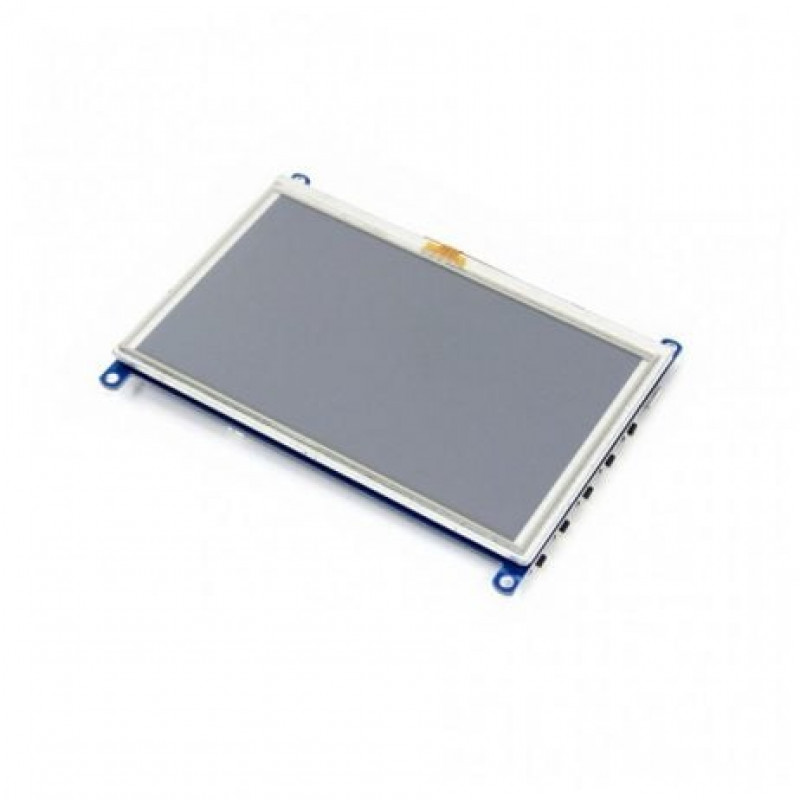

This is a Waveshare 5-inch Resistive Touch Screen LCD, with a resolution of 800x480 and a resistive touch panel, which supports Raspberry Pi and can also be used as a computer monitor. This product supports Windows 10/8.1/8/7 OS. For the Windows 10/8.1/8 OS. This LCD can support Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT systems. When the LCD works on systems such as Raspberry Pi, the resolution must be set manually, otherwise, it will cause abnormal display. There is no such problem when the LCD works on the PC version of Windows.
Features:
- 800x480 hardware resolution, configurable by software (up to 1920x1080).
- Resistive touch control.
- Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers.

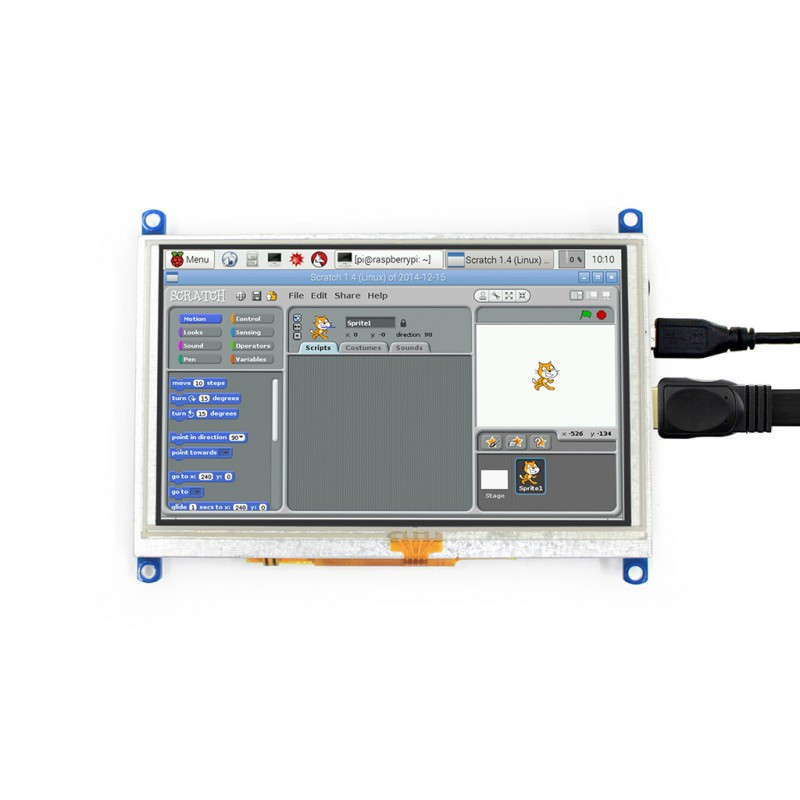

- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free.
- When working as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free.
- Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
- Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.

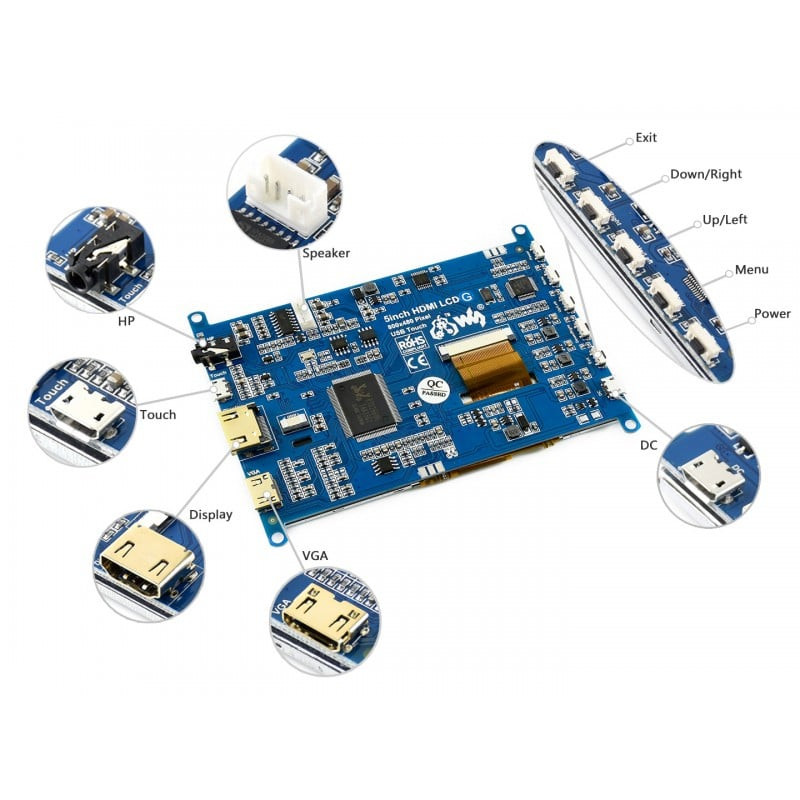

- 3.5mm audio jack, speaker connector, supports HDMI audio output.
- Also supports VGA input.
Package Includes:
- 1 x 5inch HDMI LCD (G)
- 1 x HDMI cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x USB type A plug to micro B plug cable
- 1 x RPi screws pack (4pcs)
- 1 x Quick start sheet
Specifications :-
Brand | Waveshare |
Pixel Resolution | 800 x 480 |
Display Size (inch) | 5 |
HDMI Port | Yes |
View Angle | 170 |
Touch type | Resistive |
Length (mm) | 121 |
Width (mm) | 89.5 |
Weight (gm) | 170 |
Brand/Manufacturer | Waveshare |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 3799.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Waveshare 5 Inch Resistive HDMI LCD Display (G) 800x480
- Product Code: EC-5474
- Availability: 12
-
Rs.3799.00
- (Excluding 18% GST)
