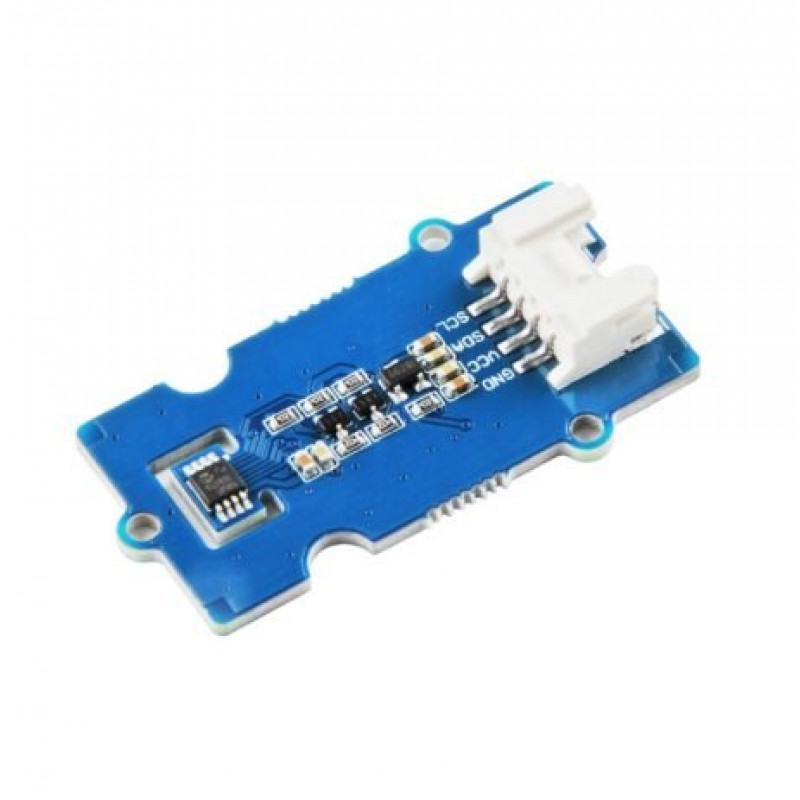

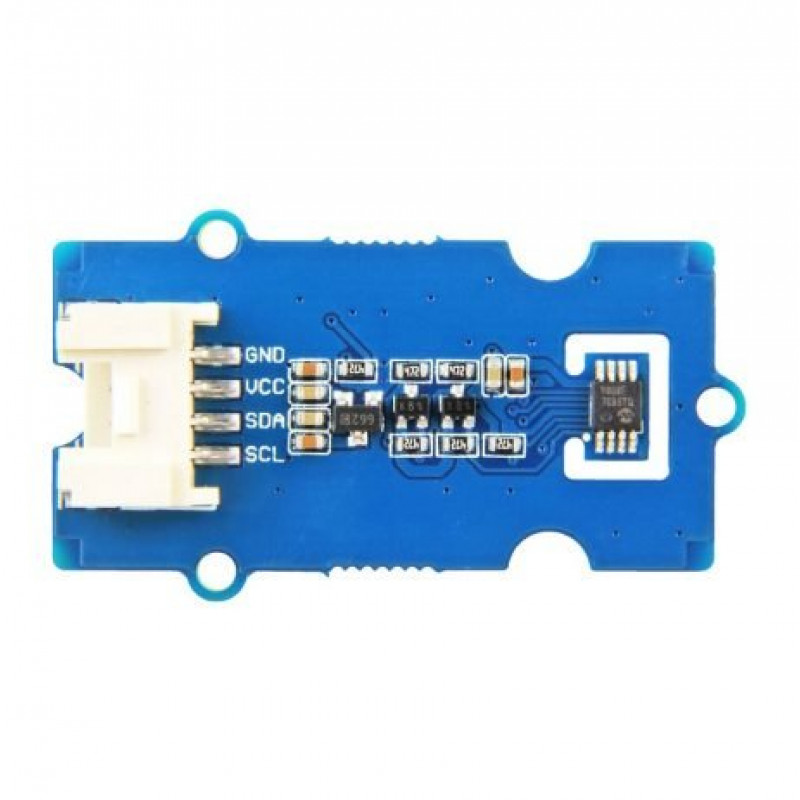

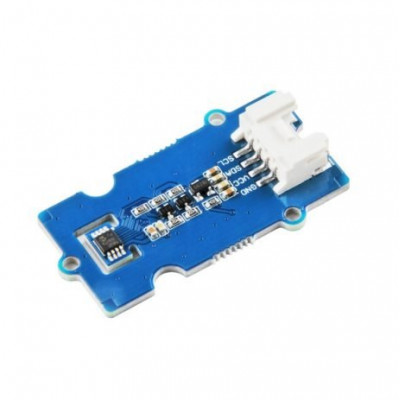

The Grove I2C High Accuracy Temperature Sensor Module (MCP9808) is a high accuracy digital module based on MCP9808. Integrated with MicrochipMCP9808 temperature sensor, it provides high accuracy & a wide range of temperature measurements from -40C to +125C. Unlike other sensors, you can choose the measurement resolution of this sensor, providing high flexibility for your temperature sensing applications.

In addition to high-precision temperature measurements, we also offer programmable temperature alert output. We use a separate pin to output the alarm signal, you will find it so convenient to use this signal as an interruption to control other boards.

Applications:

1. Industrial Freezers and Refrigerators
2. Food Processing
3. Personal Computers and Servers
4. PC Peripherals
5. Consumer Electronics
6. Handheld/Portable Devices
7. Home automation

Features:

1.High accuracy & wide range of temperature measurement:

0.25 (typical) from -40C to +125C

0.5C (maximum) from -20C to 100C

1C (maximum) from -40C to +125C

2.User-selectable measurement resolution, providing flexibility for your temperature sensing applications.

+0.5C, +0.25C, +0.125C, +0.0625C

3. User-programmable registers, allow for user-selectable settings (E.g. Low-power or Shutdown modes)

4.I²C interface works great with Arduino

5. Grove interface, fully compatible with Grove ecosystem, truly plug & play

6. Easily convert the temperature data to a digital word for easy microcontroller readings

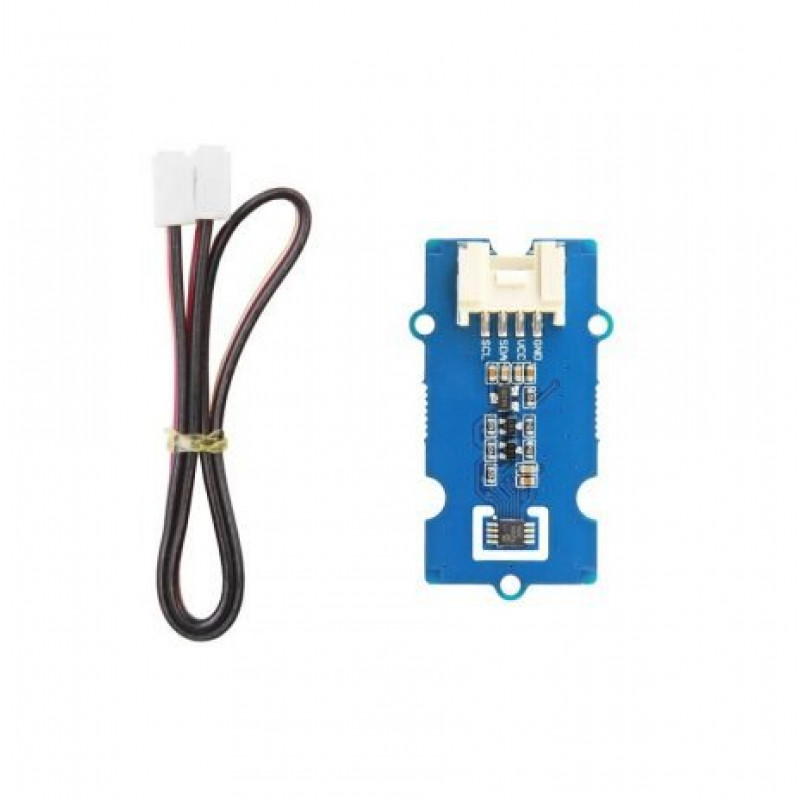

Package Includes:

1 x Grove I2C High Accuracy Temperature Sensor Module (MCP9808)

1 x Grove Cable

Specifications :-

Operating Voltage	3.3V/5V
Operating Range	-40C to +125C
Digital Interface	I2C standard 400 kHz

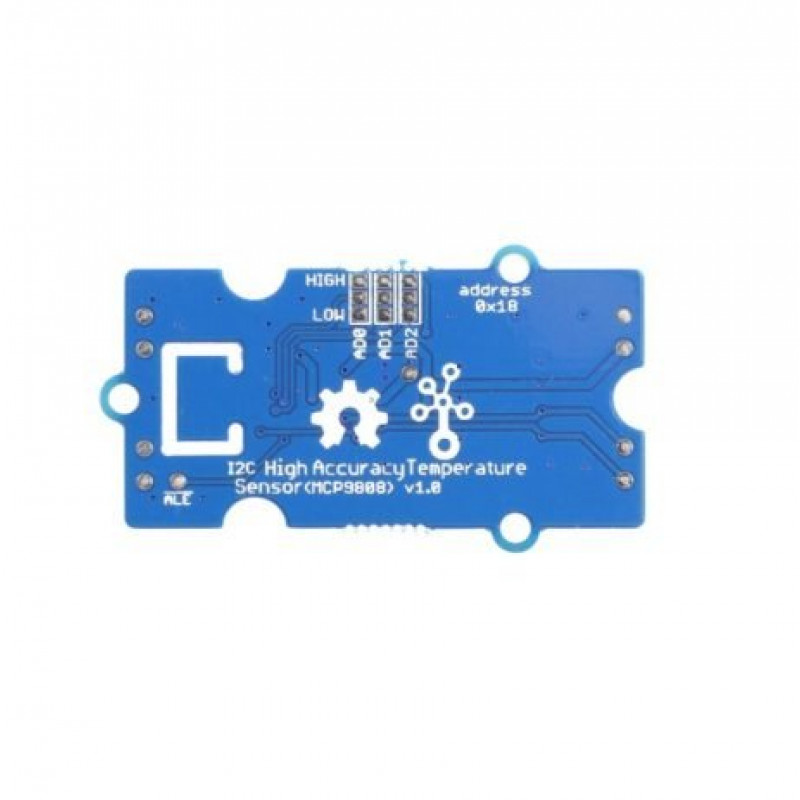

I2C Address	0x18(default)/ 0x18~0x1F(optional)

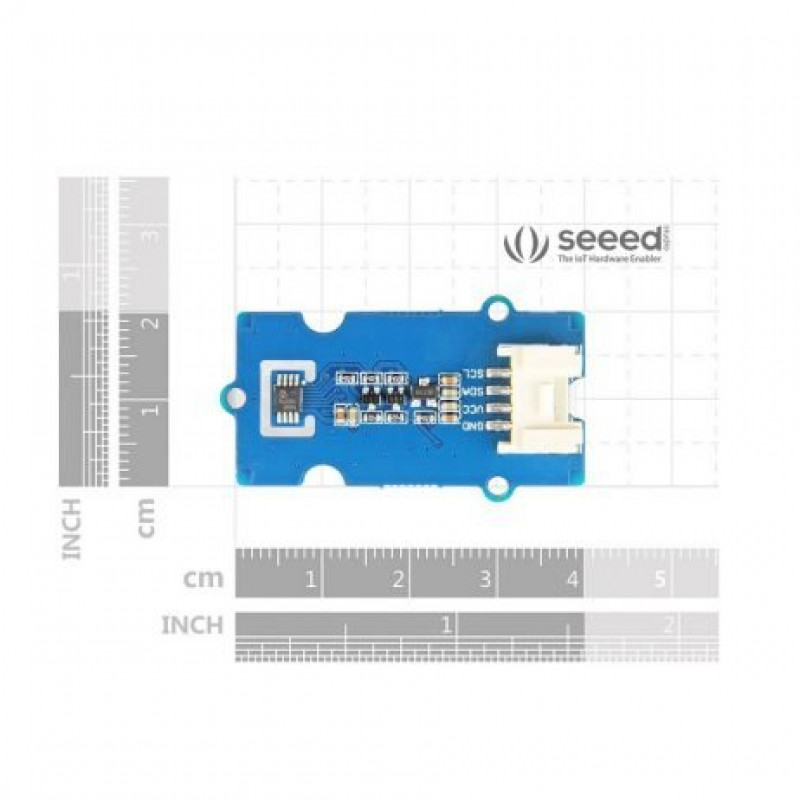

Dimensions	40mm x20mm x7mm
Weight	9.2g
