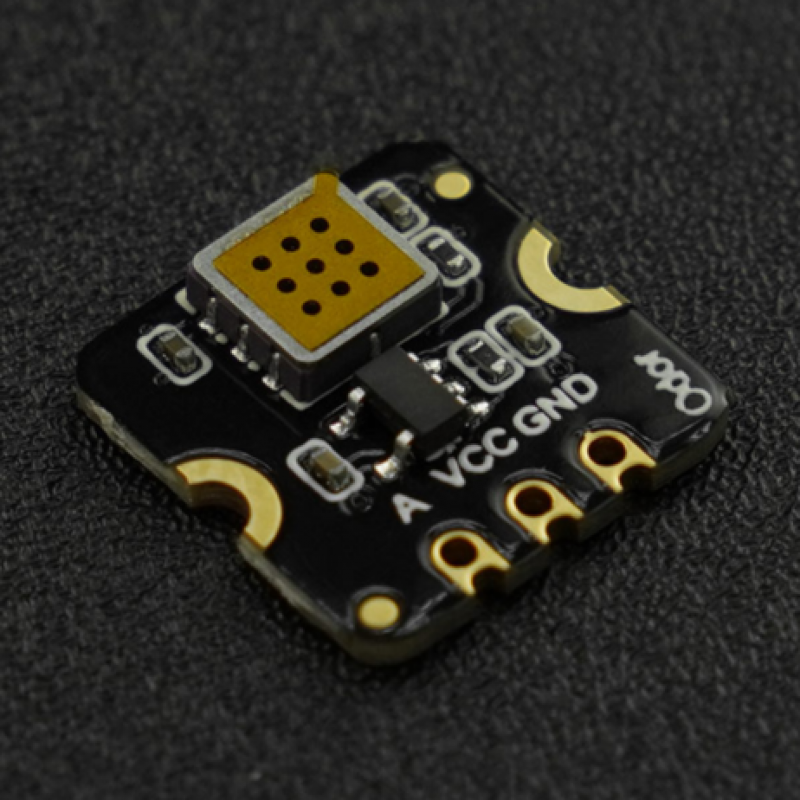

This is DFRobot Fermion MEMS Odor Smell Gas Detection Sensor (Breakout, 0.5-50ppm). Fermion: MEMS Odor Smell Gas Detection Sensor employs state-of-the-art microelectromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure odor gas concentration, suitable for breath detector, odor detection and other application scenarios.
The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.
Applications:
- Aviation safety:monitors the presence of hazardous gases or vapors in the aircraft cabin or cockpit.
- Spoiled food material detection: evaluates the freshness and safety of food products by detecting the emission of odor compounds.
- Body odor detection: analyzes the human body odor and provides feedback or suggestions for personal hygiene or health care.
- Other health applications: diagnoses or monitors various health conditions by detecting the changes in breath or skin odor.
Note: This sensor is capable of only qualitative measurements. For quantitative measurements, kindly consider purchasing the Gravity: Factory Calibrated Electrochemical CO Sensor (0-1000 ppm, I2C & UART).
Precautions for use:
- Kindly remove the protective film before usage.
- To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).
- Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).
- Prevent contamination from alkalis, alkali metal salts, and halogens.
- Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).
- Avoid contact with water, condensation, and freezing.
- Minimize excessive vibration, impact, and dropping.
- Please refrain from employing this module in systems that involve personal safety concerns.
- For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.
For more info., click below.
- Product wiki
- Schematics & Dimension
- Characteristic Parameter
- Project:Building an Electronic Nose with MEMS Gas Detection Sensor Breakout Series and Edge Impulse Platform
Features:
- Easy to use.

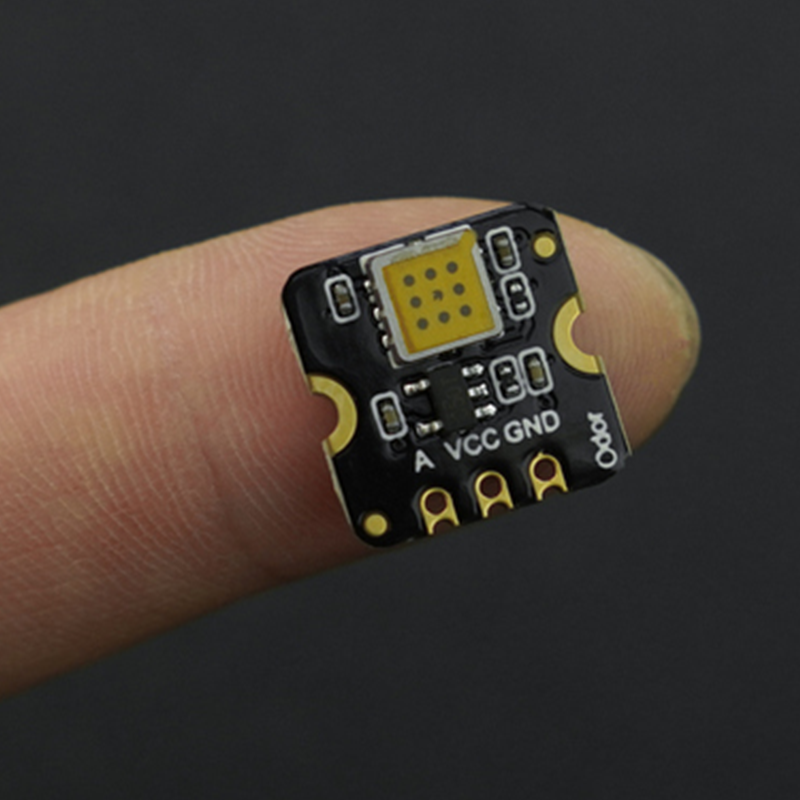

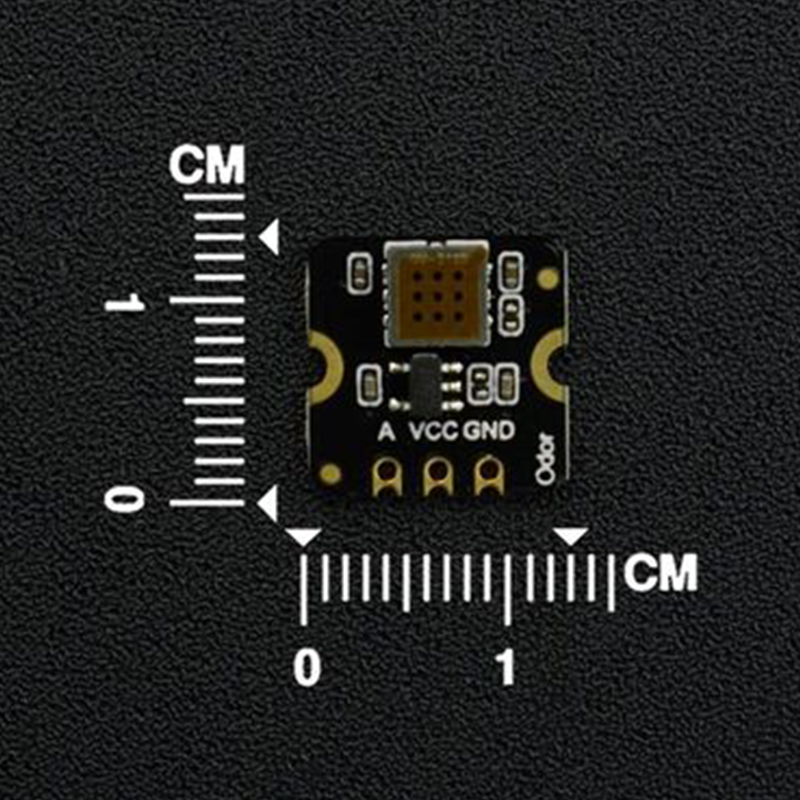

- Compact size, measuring only 13*13*2.5mm
- Low power consumption, operating current 20mA
- High sensitivity and rapid response recovery
- Advanced MEMS technology
- Gas detected: H2S, EtOH, acetone, etc.
- Sensitivity: R0(in air)/Rs(in 5ppm H2S) 2
- Lifespan: 5 years (in air)
- Good quality product
Package Includes:

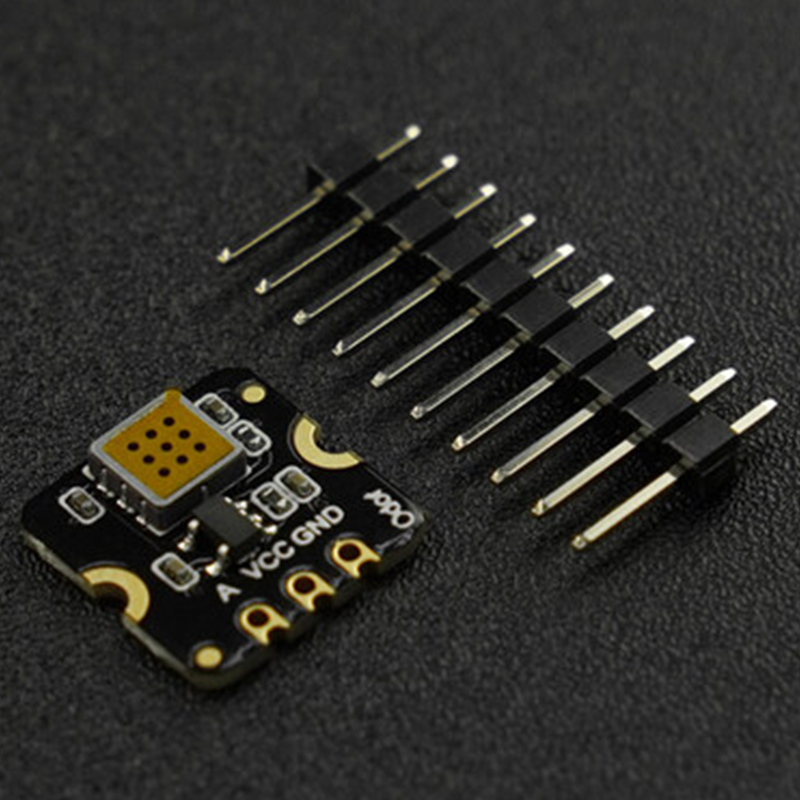

1 x DFRobot Fermion MEMS Odor Smell Gas Detection Sensor (Breakout, 0.5-50ppm)
1 x 2.54mm pitch header pin
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot Fermion MEMS Odor Smell Gas Detection Sensor (Breakout, 0.5-50ppm)
- Product Code: EC-19650
- Availability: 3
-
Rs.395.00
- (Excluding 18% GST)
