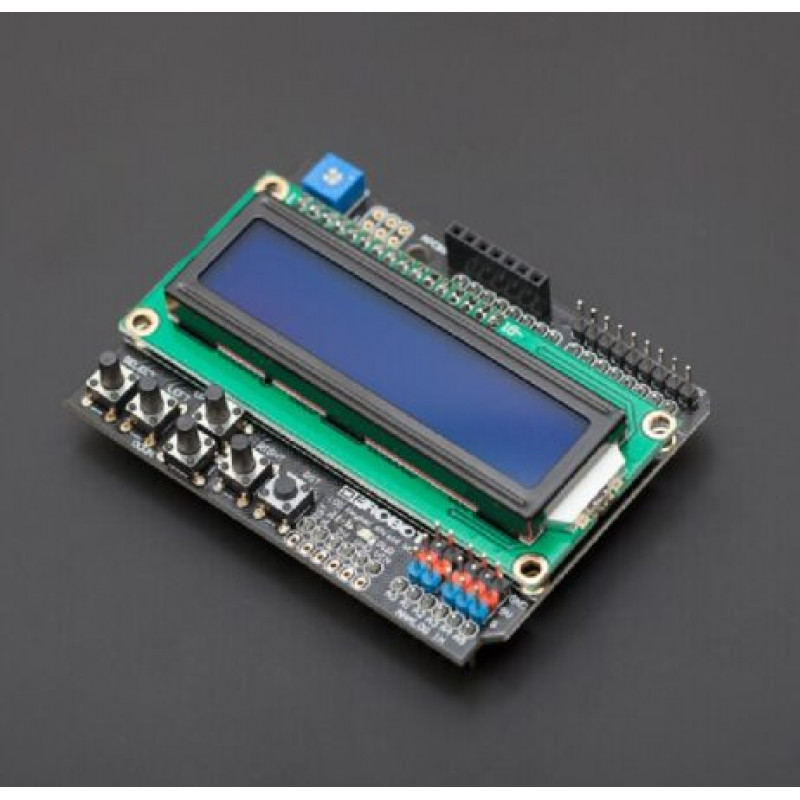

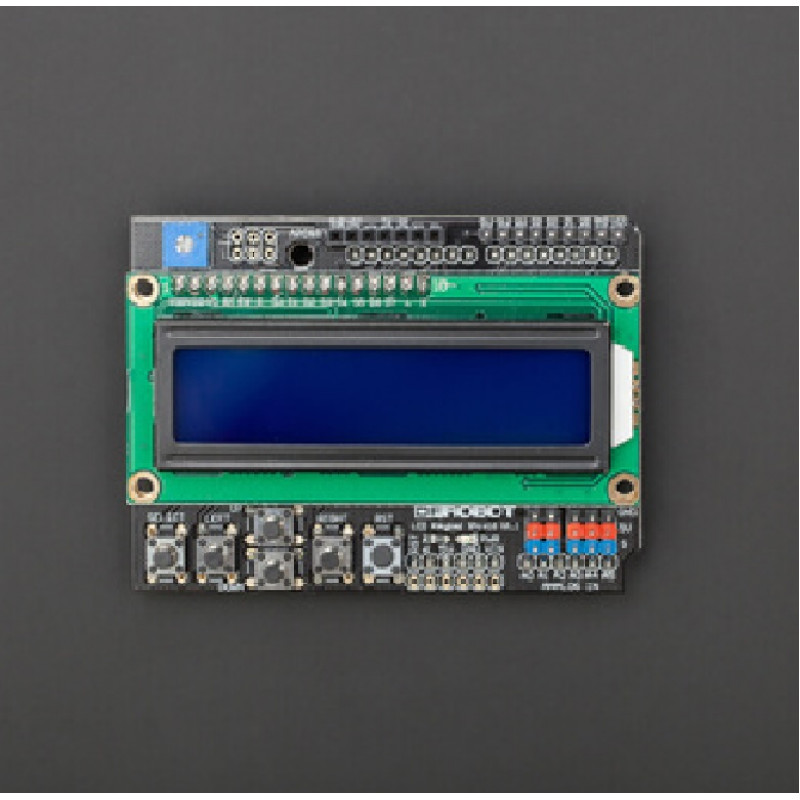

This is a very popular LCD Keypad shield forArduinoand other variants. It includes a 216LCD displayand 6 momentary push buttons. Pins 4, 5, 6, 7, 8, 9 and 10 are used to interface with the LCD. Just one Analog Pin 0 is used to read the five pushbuttons. The LCD shield supports contrast adjustment and back-lit on/off functions. It also exposes five analog pins with DFRobot color code for easy analog sensor plugging and display. The on boardLEDindicates power on.

This lcd arduino shield has 5 keys select, up, right, down and left which allow you move through menus and make selections straight from one board attached to yourArduino projectwithout requiring a massive tower of shields.

This design allows you keep connecting sensors to the rest of the pins, and use it for monitoring or menu selection with the push buttons even for gaming. Project applications require testing or debugging. Displaying information right away help on most occasions when a computer is not at reach. If you are planning to build something not attached to a computer and you need to check what is going on when you place it on position, this addition will prove very valuable to make sure the program is running well.

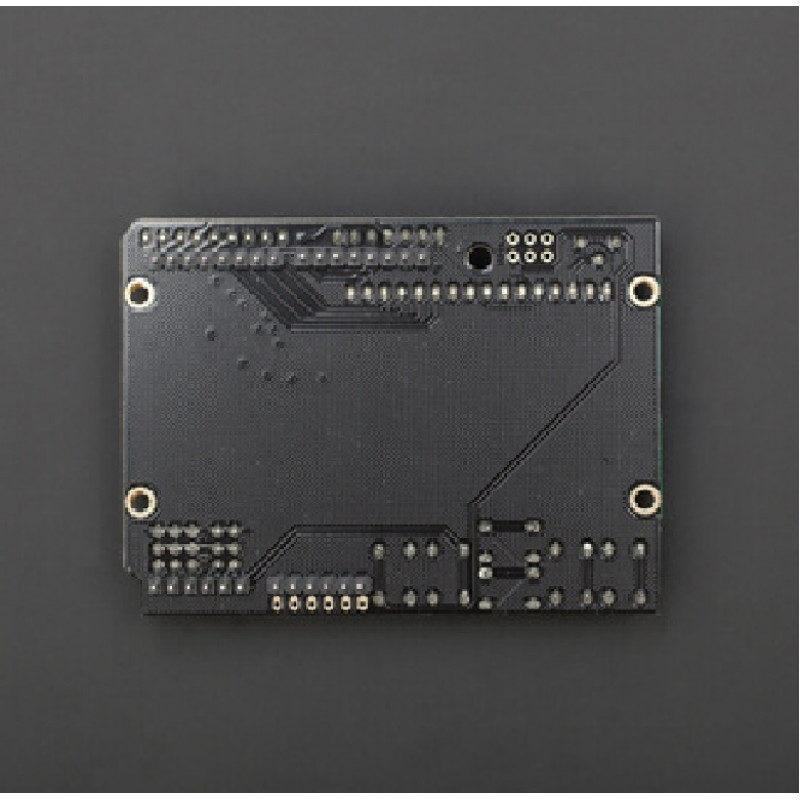

The used LCD pins are not exposed on top side of the board leaving only the unused ones. This way, conflict with LCD pins on top of the board will not happen anymore. This design includes a APC / Bluetooth v3 socket to enable you data transmission with your robot.

Features:

1. Compatible with Arduino
2. Features a 162 character LCD screen
3. Integrated keypad for user input
4. Utilizes DFRobot Gravity interface for easy connection
5. Provides easy-to-use interface for displaying information and receiving input
6. 5 Push buttons to supply a custom menu control panel
7. RST button forresettingarduino program
8. Integrate a potentiometer for adjusting thebacklight
9. Pin used:
   • D4-D7 -> LCD Data transmission
   • D8 -> Register Select
   • D9 -> Enable pin
   • D10 -> Backlight control
10. APC&BT pin header for connecting wireless devices, directly compatible with:
    • APC220 Radio Communication Module
    • DFRobot Bluetooth V3
11. Expanded available I/O pins
12. Expanded Analog Pinout with standard DFRobot configuration for fast sensor extension.

Package Includes:

1 x DFRobot Gravity: 1602 LCD Keypad Shield For Arduino
