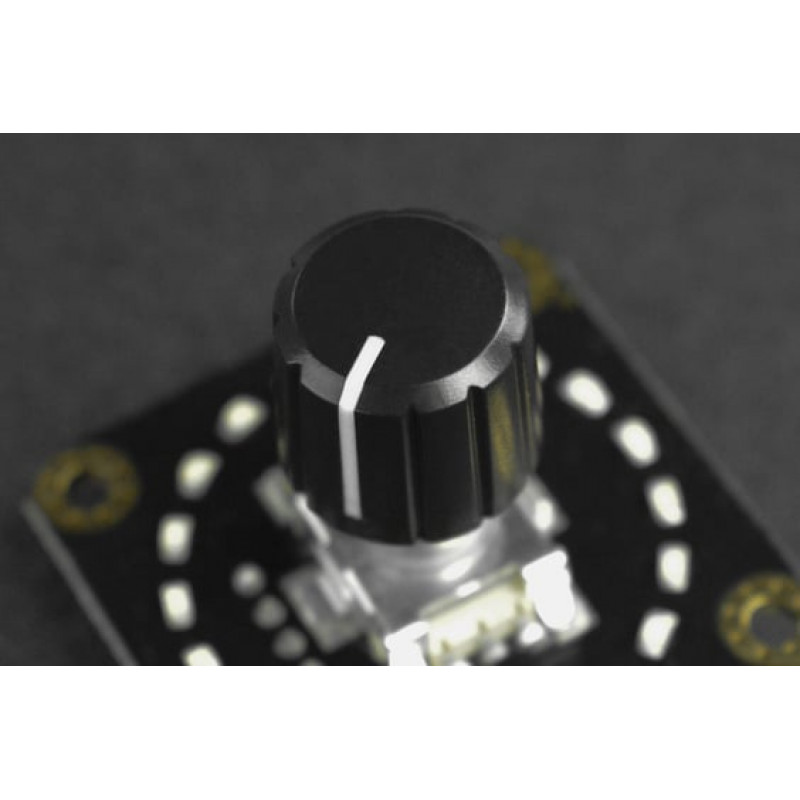

This looks like a potentiometer, but its an encoder switch.

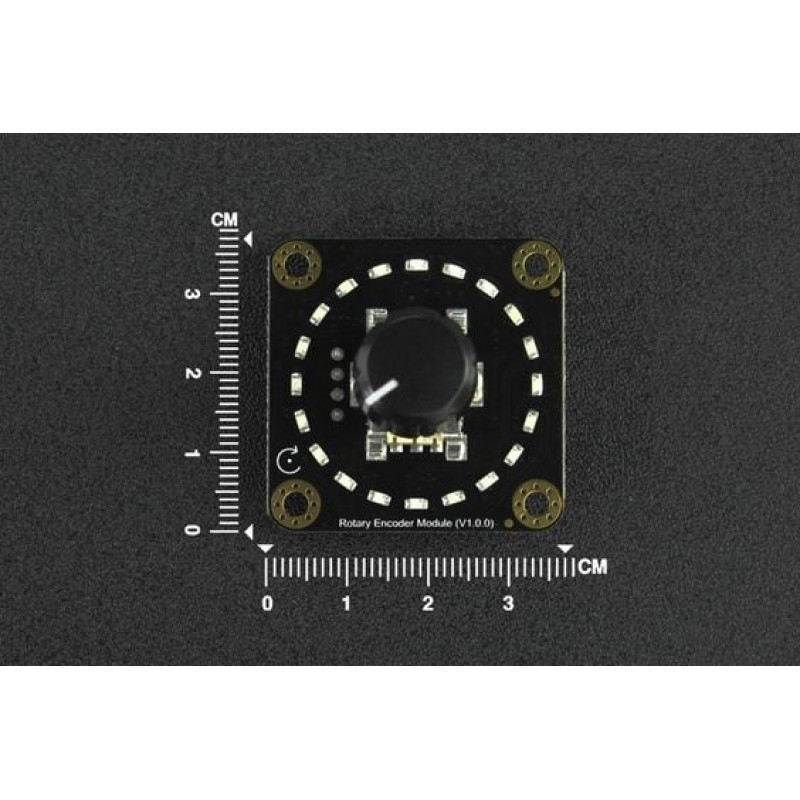

It is a cascadable 360 rotary encoder switch with 20 pulses per revolution, and each pulse corresponds to a detent. There are LED lights set for each detent to allow users visually check the real-time status of the encoder.
For ease of use, the module is designed with I2C data output and configurable accuracy within 1~51 for every detent (set in the program). For instance, when it is set to 1, turn on one LED light by rotating 2.5 revolutions; when set to 51, then one LED light can be switched on by rotating one detent.

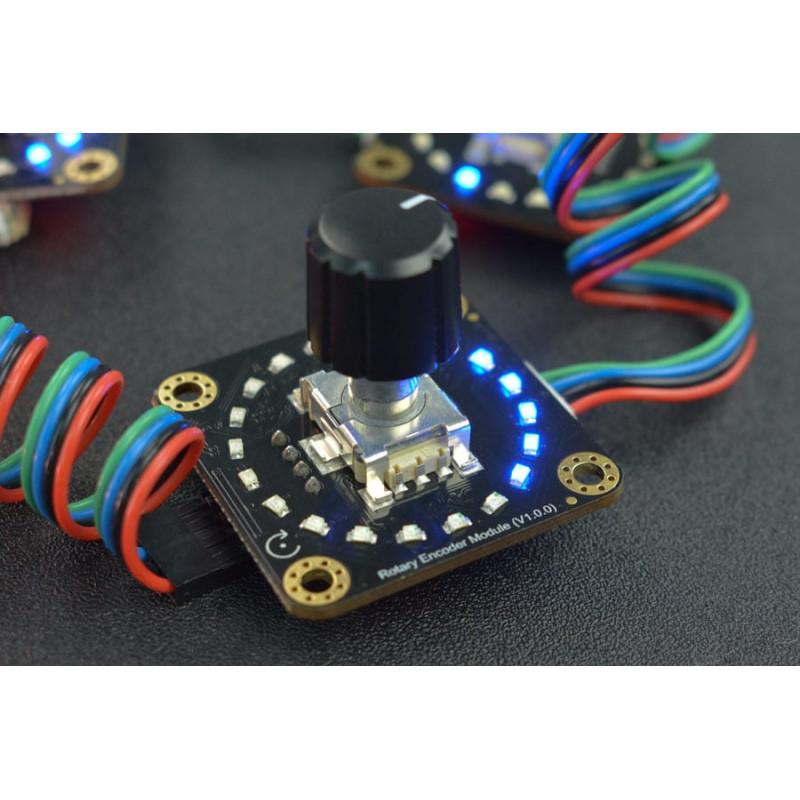

In order to apply to more scenarios, the encoder is equipped with a cascade function that enables to control of multiple output devices by occupying only one I2C interface, such as, simultaneously controlling light brightness, color, volume, speed, etc.
Applications:
Application Field
- Automotive electronics
- Multimedia speaker
- Instruments and Apparatuses
- Smart home
Application Case
- Volume adjustment
- Fire regulation
- Speed regulation
- Light adjustment
Features:
- Pluggable cascade
- I2C Data output, forward to increase, reverse to decrease
- Onboard LED detent indicator

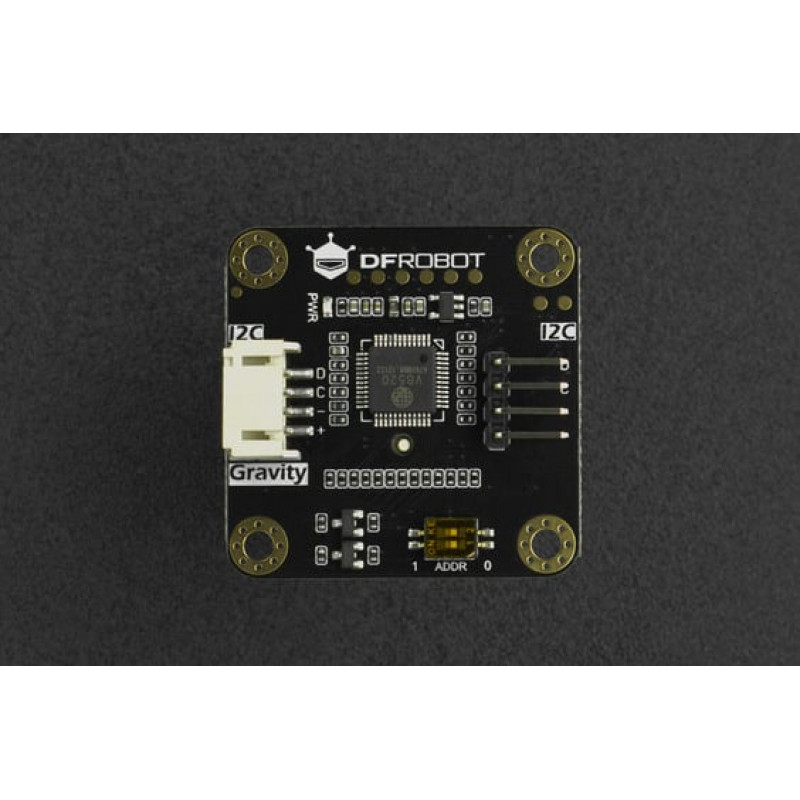

- Allow setting 4 different I2C addresses by address switch

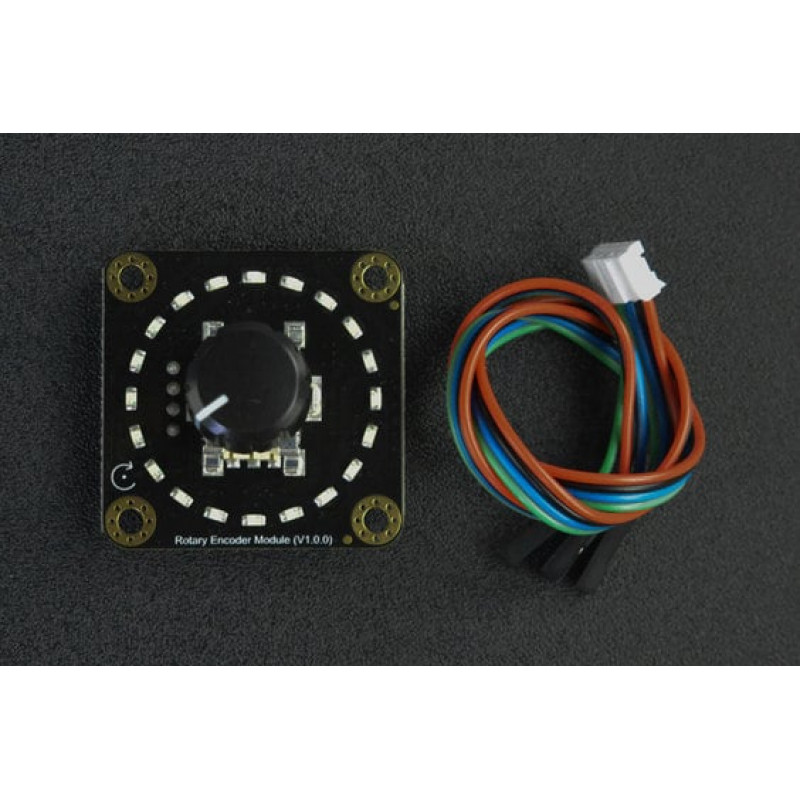

Package Includes:
1 x Gravity: Rotary Encoder Module
1 x Gravity I2C/UART Sensor Connector
Attachments :
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 899.16 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

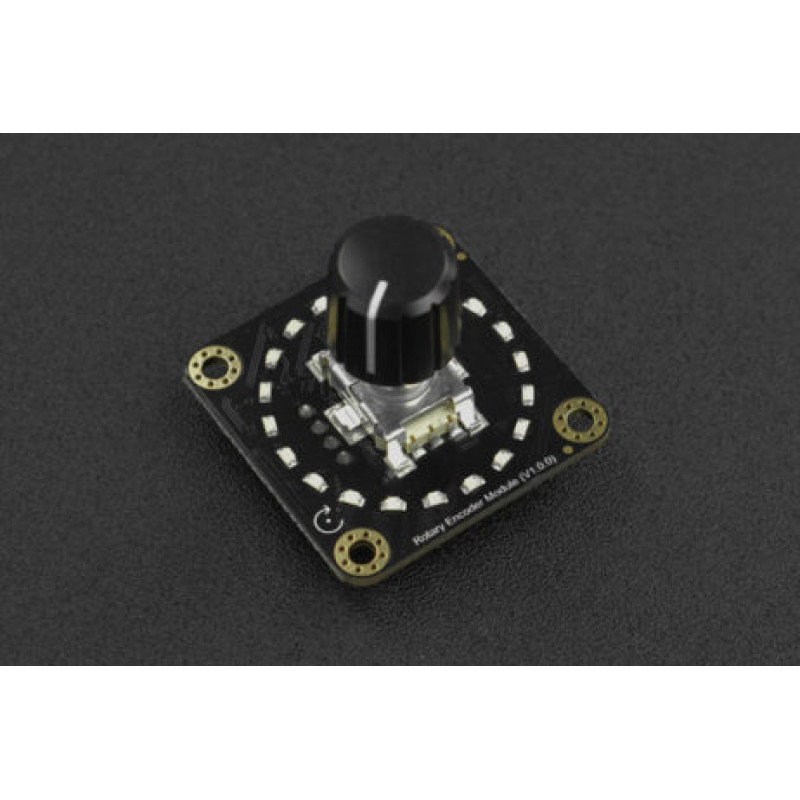

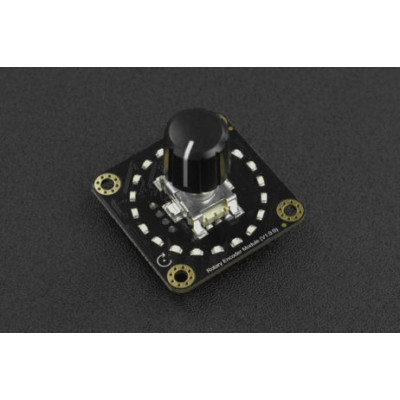

DFRobot Gravity: 360 Degree Rotary Encoder Module
- Product Code: EC-24335
- Availability: 3
-
Rs.788.00
- (Excluding 18% GST)
