The Arduino Nano I/O Sensor Shield acts as an expansion board for the Arduino Nano and DFRduino Nano microcontrollers. There are several different options for power input. The form factor of the Nano I/O Shieldboard is the same as theArduino UNO/arduino Leonardo. In addition, the sensor shield adoptsGravityinterface that each pinout includes 5V and GND pins for easy connection to Gravity sensors or servos. To the best compatibility, the shield supports jumper wires for rapid prototyping.
This unit comes fully assembled. The board also has a space specifically for the DFRobot bluetooth module and ACP220. Several I2C pins are also expanded. The arduino nano shield has independent power supply to provide extra power for servo and other sensors.
Features:
- Expansion board for Arduino Nano and DFRduino Nano
- Various power input options available
- Compatible form factor with Arduino UNO/Leonardo
- Utilizes Gravity interface for easy sensor or servo connection
- Supports jumper wires for rapid prototyping
- Fully assembled unit
- Space allocated for DFRobot Bluetooth module and APC220
- Expanded I2C pins for additional connectivity.
Package Includes:
1 x DFRobot Gravity: Nano I/O Shield for Arduino Nano
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

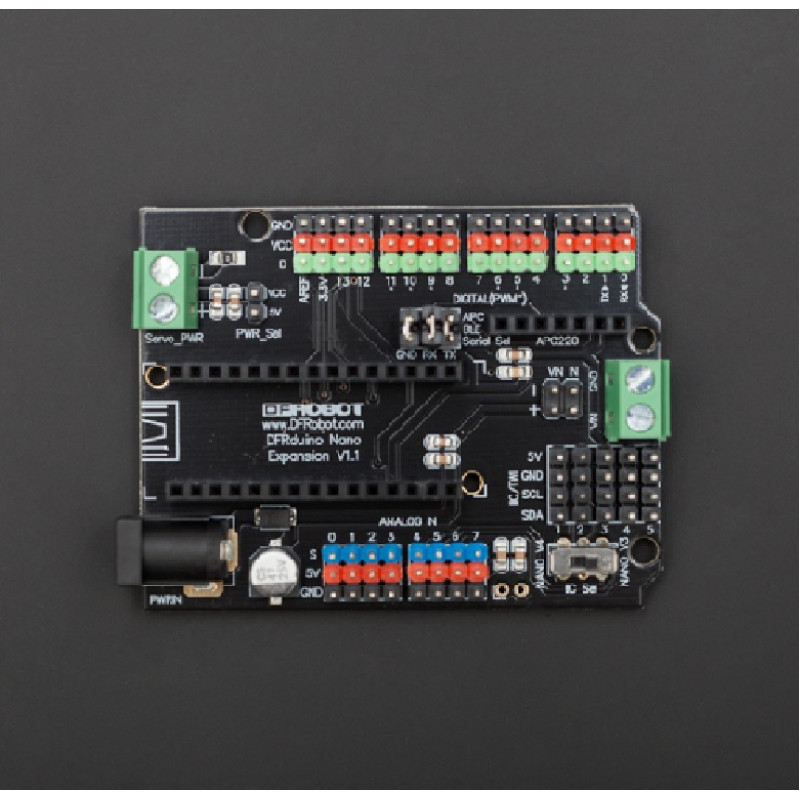

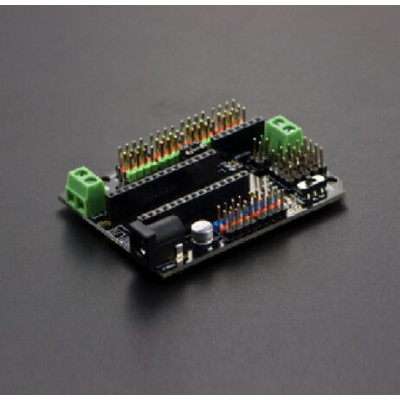

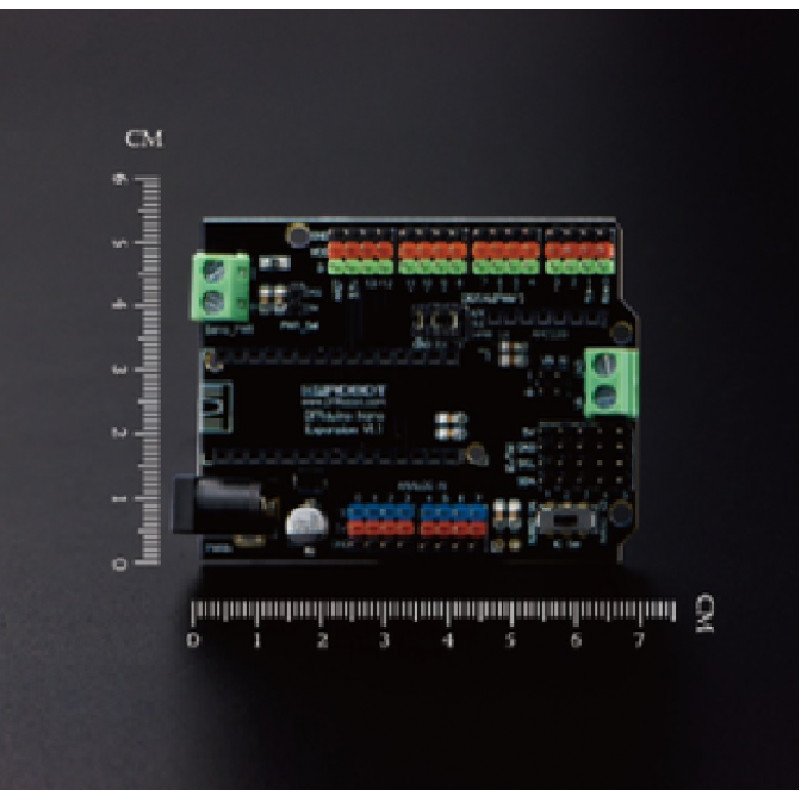

DFRobot Gravity: Nano I/O Shield for Arduino Nano
- Product Code: EC-26503
- Availability: 1
-
Rs.698.00
- (Excluding 18% GST)
