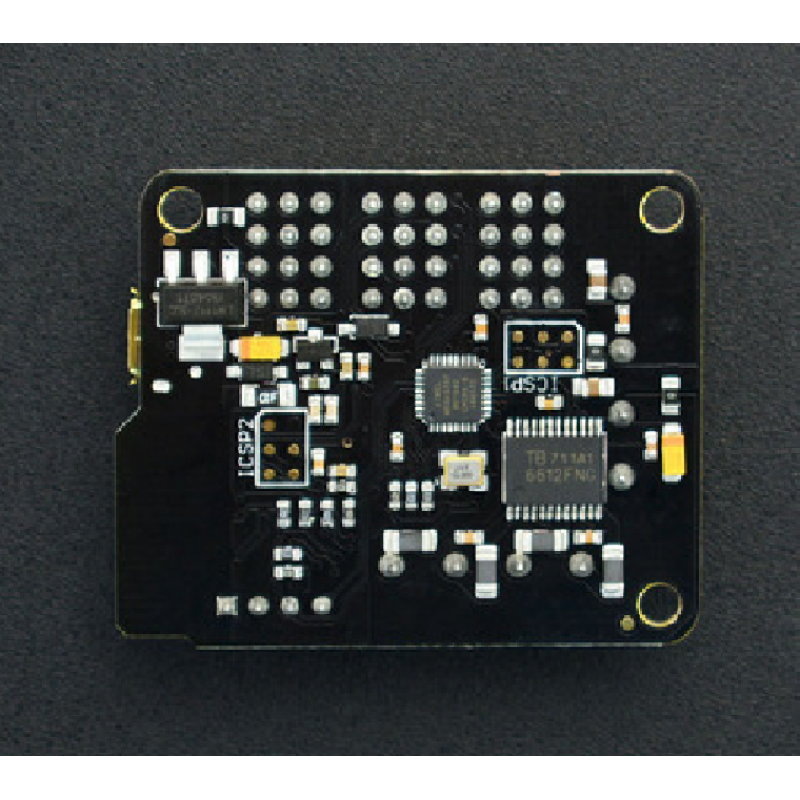

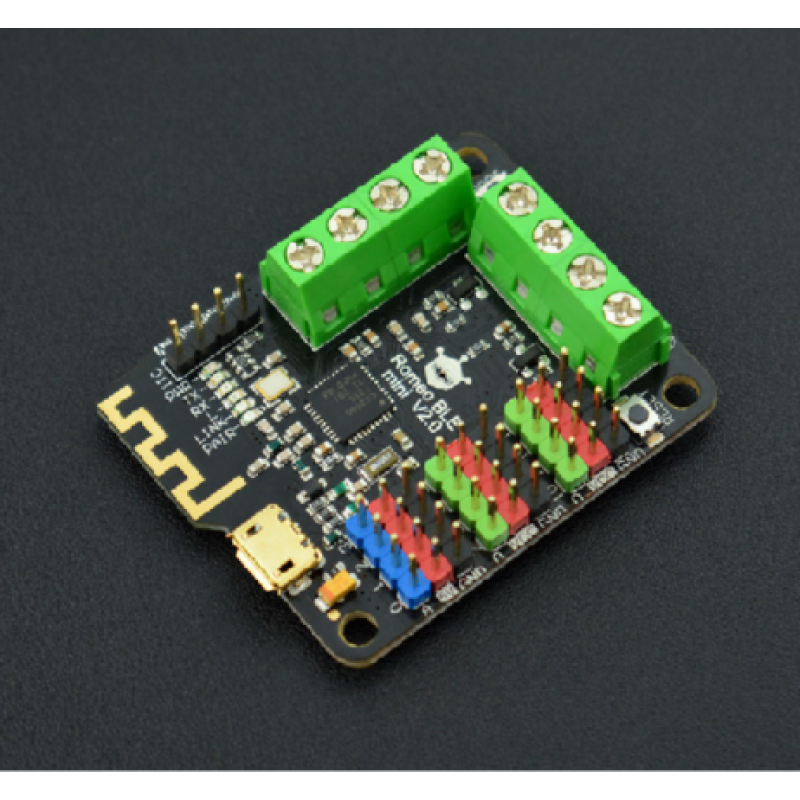

Romeo BLE mini is a simplified version ofRomeofamily. It inherits all functions ofRomeo BLE. Moreover, IT GOT A SMALLER SIZE! Yes, you got it all. It has 8 Digital pins, 4 analog pins and integratesBluetooth 4.0 wireless communicationfunction. And it can easy to drive the mobile platform using two 1.2A H-bridged Motor Driver to meet the needs of small scale robots. We hope Romeo BLE mini will be a good assistant to makers. You may also checkBluetooth Microcontrollor Selection Guideto get more information.
Features:
- SupportGravity-3Pin interface, color-coded, compatible with servos and Gravity sensors & modules
- Support external power supply automatically switch, can simultaneously USB and external power supply
- Support wireless download program / wireless communication function
- Support mobile phone APP control
- Two-way H-bridged Motor Driver
- Support servo external power input
- Supports AT commands to configure BLE
- Support serial transmission
- Support master and slave switch
- BLE chip: TI CC2540
- Transmission distance: 30m (open area)
- Microprocessor: ATmega328P
- Board selection: Arduino UNO
- SRAM2: KB (ATmega328P)
- Motor Drive Pins: D4, D5, D6, D7
- microUSB connector
- 2x2A H-bridge motor driver
Package Includes:
1 x DFRobot Romeo BLE mini Small Control Board for Robot Arduino Compatible Bluetooth 4.0
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DFRobot Romeo BLE mini Small Control Board for Robot Arduino Compatible Bluetooth 4.0
- Product Code: EC-26592
- Availability: 2
-
Rs.2204.00
- (Excluding 18% GST)
