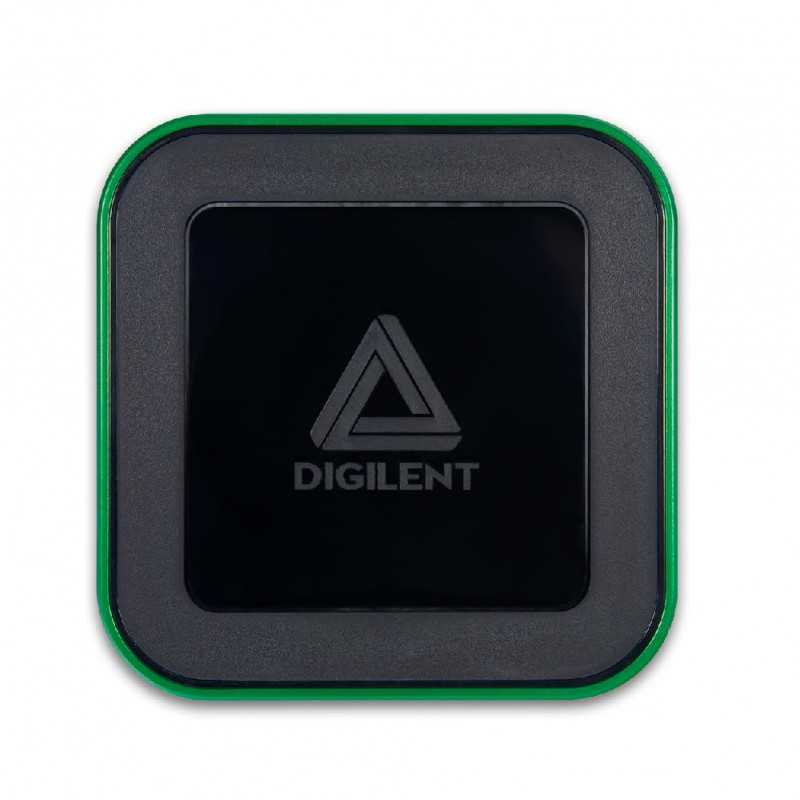

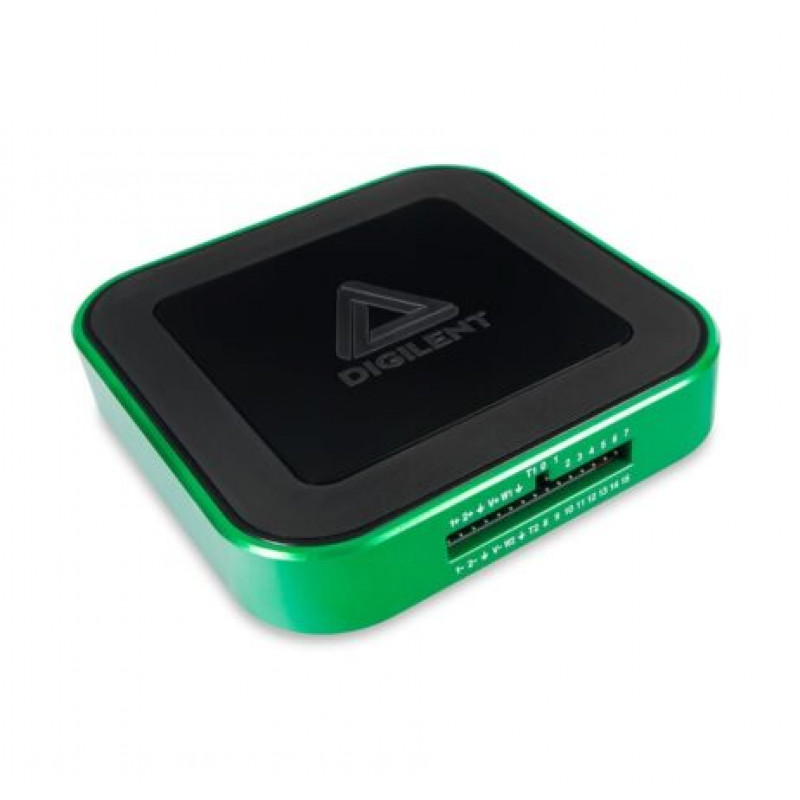

DigilentAnalog Discovery 3 is a portable USB-powered test and measurement device incorporating a digital oscilloscope, logic analyzer, waveform generator, pattern generator,and more. This device with an upgraded USB-Cconnection is lightweight and small enough to fit in a pocket/backpack, making it an exceptional companion for any engineer. The Analog Discovery 3 allows engineers access to two powerful features in waveForms, i.e., the Finite-Impulse Response (FIR) filter and the Proportional Integral Derivative (PID) controller. The Analog Discovery 3 can be used in the lab, field, or even at home, as it is powerful enough to replace a stack of equipment.

Note: To achieve maximum bandwidth, use of the BNC Adapterfor Analog Discovery is required.

Features:

1. Oscilloscope:
   • Two differential channels with 14-bit resolution at up to 125 MS/s per channel with a +/-25 V input range, 30+ MHz bandwidth with BNC Adapter
   • User-configurable hardware input filters
   • FFT, Spectrogram, Lock-In Amplifier, Additional Software Input Filters, Eye Diagram, XY Plot views, and more, in the WaveForms application

2. Arbitrary Waveform Generator:
   • Two channels with 14-bit resolution at up to 125 MS/s per channel with a +/-5 V output range, 12 MHz bandwidth with BNC Adapter
   • Standard waveforms, amplitude and frequency modulated signals, direct playback from analog inputs, custom waveforms, and more

3. Logic Analyzer and Pattern Generator:
   • 16 digital I/O channels at up to 125 MS/s per channel
   • Individually-configurable 3.3 V digital inputs and outputs, 5 V tolerant inputs
   • SPI, I2C, UART, CAN, JTAG, ROM logic, custom protocols, and more

4. Programmable Power Supplies:
   • 0.5 V to 5 V and -0.5 V to -5 V variable power supplies
   • Up to 800 mA per channel when used with anauxiliary power source

5. Additional Features:
   • Additional software instruments including:
     • Spectrum Analyzer, Network Analyzer, and Impedance Analyzer
     • Protocol Analyzer, virtual digital I/O such as buttons, switches, LEDs
     • Data logging, Voltmeter, in-app scripting
   • SDK for hardware control in C, C++, Python, and other languages
   • Support for LabVIEW and MATLAB
   • And much more

Specifications:

1. USB Oscilloscope: 125 MS/s, 2 channels, 14-bit, +/-5 V, 12 MHz.
2. Waveform Generator: Standard/custom, modulation, direct playback.
3. Logic Analyzer: 3.3 V digital I/O, 5 V tolerant, 16 channels, 125 MS/s.
4. Variable Power Supply: Up to 800 mA, 0.5 V to 5 V, -0.5 V to -5 V.
5. Software Support: LabVIEW, MATLAB, SDK (C/C++, Python).
6. Additional Instruments: Spectrum, Network, Impedance Analyzer.
7. Digital Protocols: SPI, I2C, UART, CAN, JTAG, custom.
8. Advanced Analysis: FFT, Spectrogram, Eye Diagram, XY Plot.
9. User-Configurable Filters, Lock-in Amplifier.
10. Differential Channels: 14-bit, +/-25 V input, 30+ MHz bandwidth.

Package Includes:

1 x Analog Discovery 3

1 x One plastic project box

1 x One USB-Cto USB-C programming cable

1 x One 215 flywire signal cable assembly

1 x 5-pack of 6-pin male headers

1 x 30-pin flywire labels
