The Cmod, orCarrierModule, family of products is designed to offer quick, simple, and flexible integration of an FPGA into circuit design, prototyping, and learning/hobby projects.

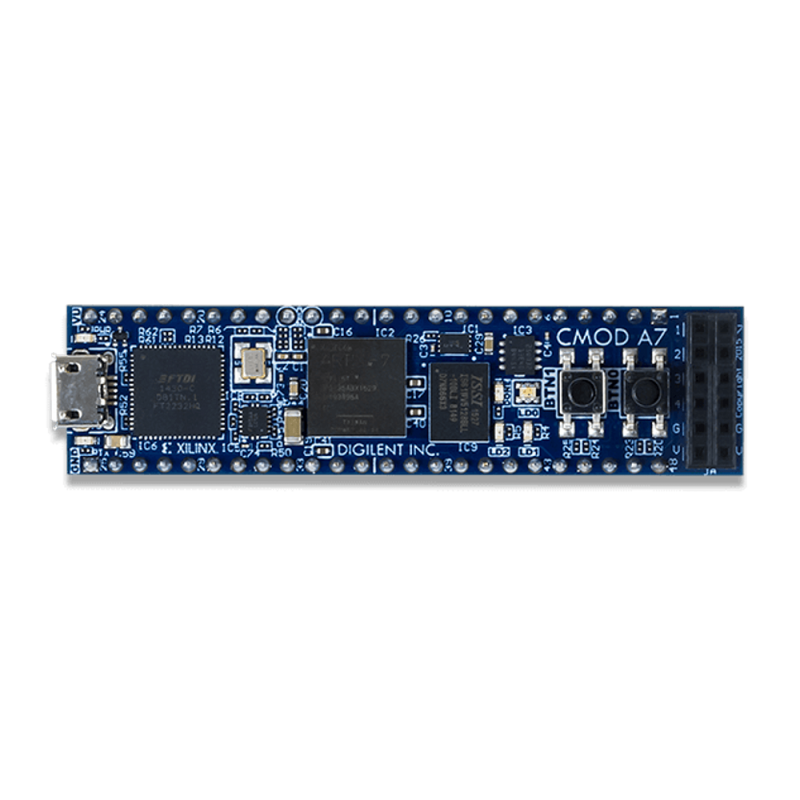

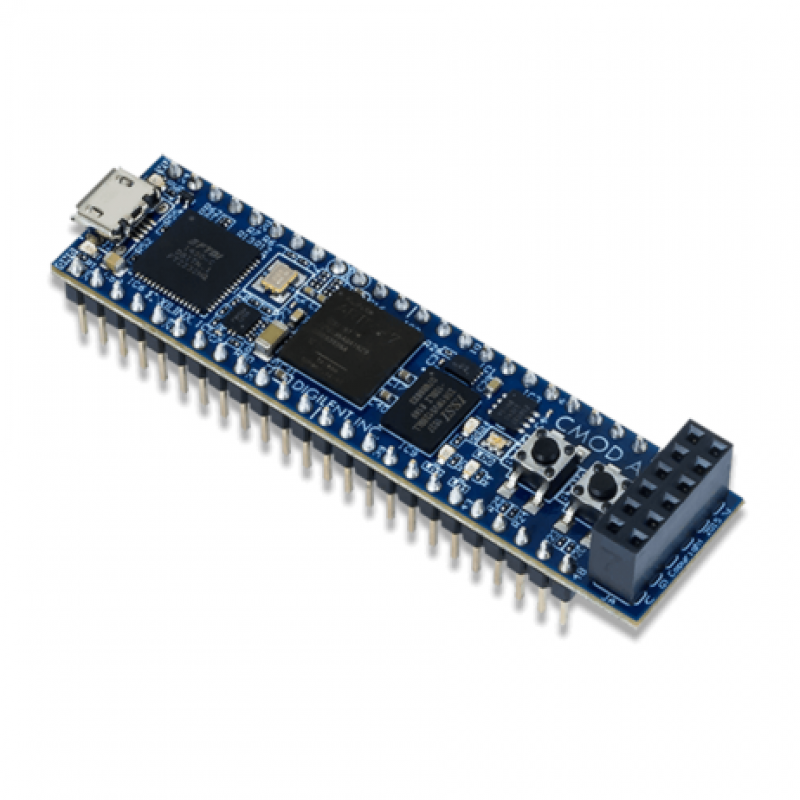

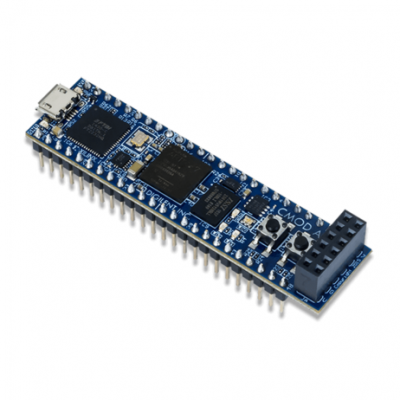

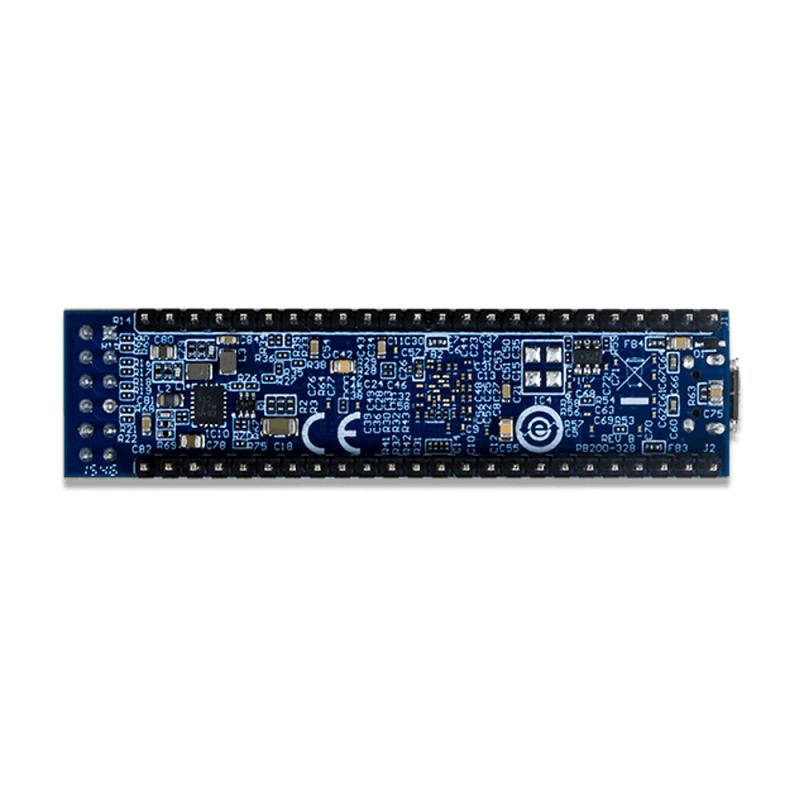

The Digilent Artix-7 FPGA Module is a small, 48-pin DIP form factor board built around a Xilinx Artix-7 FPGA that brings FPGA power and prototyping to a solderless breadboard.

The board includes a Quad-SPI flash for programming, as well as a USB-JTAG programming circuit and USB-UART bridge. The Cmod A7 also features a clock source, Pmod port, and onboard I/O with LEDs and pushbuttons. There are 44 FPGA I/O signals that are routed to 100-mil-spaced through-hole pins, making the Cmod A7 compatible with solderless breadboards. This form factor makes the Cmod A7 a great option for flexible and affordable prototyping, or learning FPGA and digital logic circuits. At just .7 by 2.75, it can also be loaded in a standard socket and used in embedded systems.

The Artix-7 FPGA on the Cmod A7 provides the highest performance-per-watt fabric, transceiver line rates, DSP processing, and AMS integration for a cost-optimized FPGA. With the MicroBlaze Soft Processor Core from Xilinx, you can create embedded applications with a variety of peripherals, memory, and interfaces.

If your design does not require the transceiver lines or higher performance of the Artix-7 FPGA, we recommend the more affordable Cmod S7, featuring a Spartan-7 FPGA.

The Cmod A7 can be programmed with Digilents Adept software. Digilent Adept is a unique and powerful solution that allows you to communicate with Digilent system boards and a wide assortment of logic devices. Find out more about Adept here.

Features:

1. System Features
   1. 512KB SRAM with an 8-bit bus and 8ns access times
   2. 4MB Quad-SPI Flash
   3. USB-JTAG Programming Circuitry
   4. Powered from USB or external 3.3-5.5V supply connected to DIP pins
2. System Connectivity
   1. USB-UART bridge
3. Interaction and Sensory Devices
   1. 2 LEDs
   2. 1 RGB LED
   3. 2 Push Buttons
4. Expansion Connectors
   1. 48-pin DIP connector with 44 Digital I/O and 2 Analog inputs (0-3.3V)
   2. One Pmod connector with 8 Digital I/O

Package Includes:

1 x Digilent Cmod A7-35T: Breadboardable Artix-7 FPGA Module
