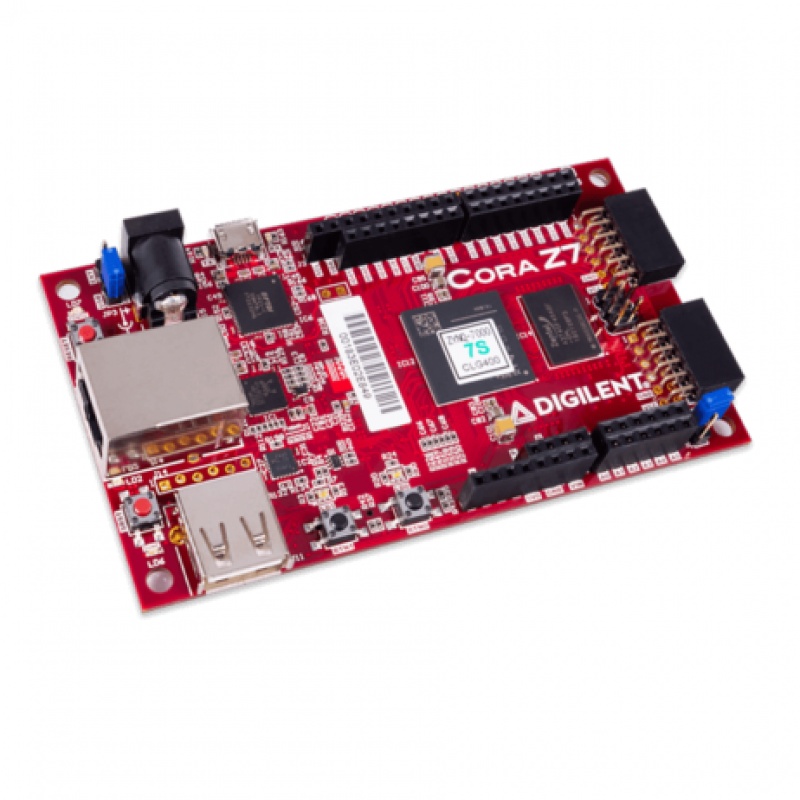

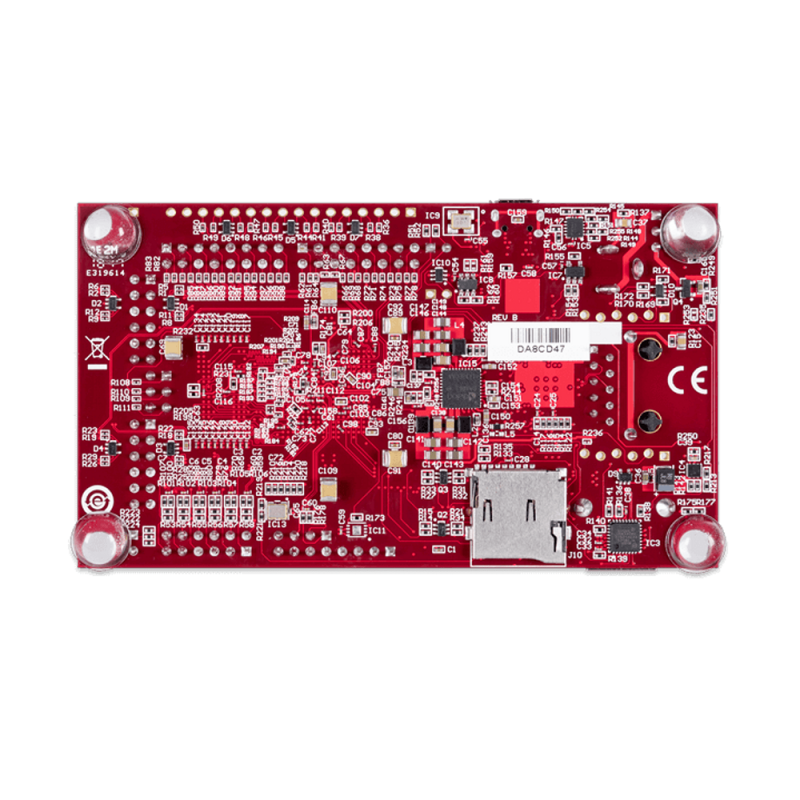

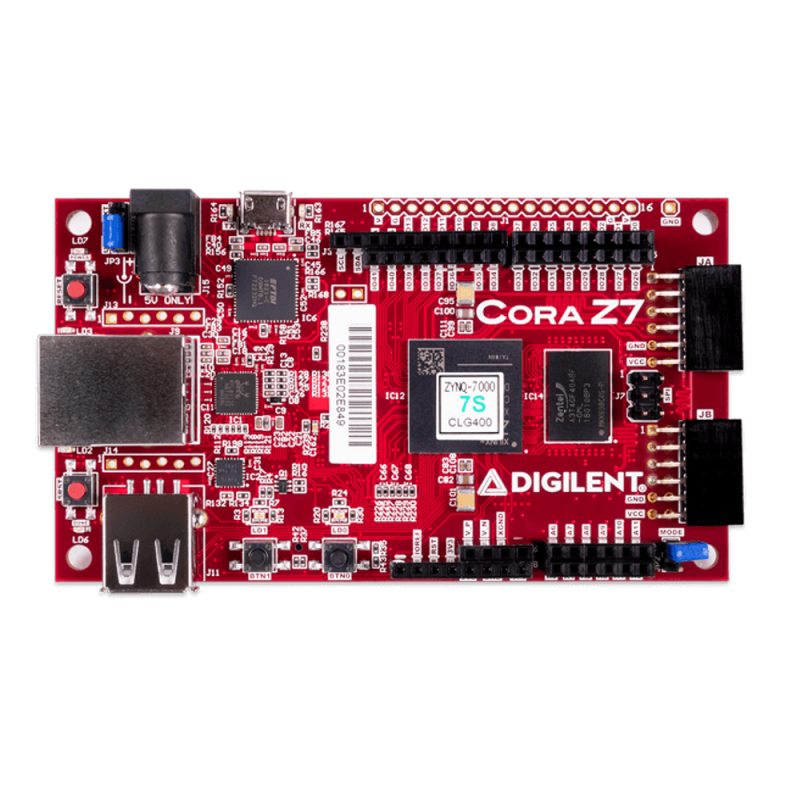

The Cora Z7 is our most cost-optimized SoC development board featuring the power and flexibility of Xilinxs Zynq-7000 SoC family.

Featuring Arduino headers, 1Gbps Ethernet, an onboard analog-to-digital converter, and Pmod ports, the Cora Z7 can be used in a variety of embedded applications. The Zynq-7000(S) SoC family integrates the software programmability of an ARM-based processor with the hardware programmability of an FPGA, delivering cost-optimized system integration. At such a friendly price point, the Cora Z7 is a great development board to get started with Zynq-based designs.

The Cora Z7 is supported by Xilinxs Vivado ML, including the free Vivado ML Standard Edition. You can also interact with the processing system (PS) with Xilinxs Vitis Unified Software Platform and PetaLinux Tools.

The ARM Cortex-A9 processor on the Cora Z7-07S is single-core.

To create and modify designs for your Cora Z7, you can use Xilinxs Vivado Design Suite. Vivado is a software designed for the synthesis and analysis of HDL designs. Both variants of the Cora Z7 are supported by the free WebPACK edition of the Vivado Design Suite.

Features:

1. 667 MHzCortex-A9 processor with tightly integrated Xilinx FPGA (Single-core)
2. 512 MBDDR3 memory

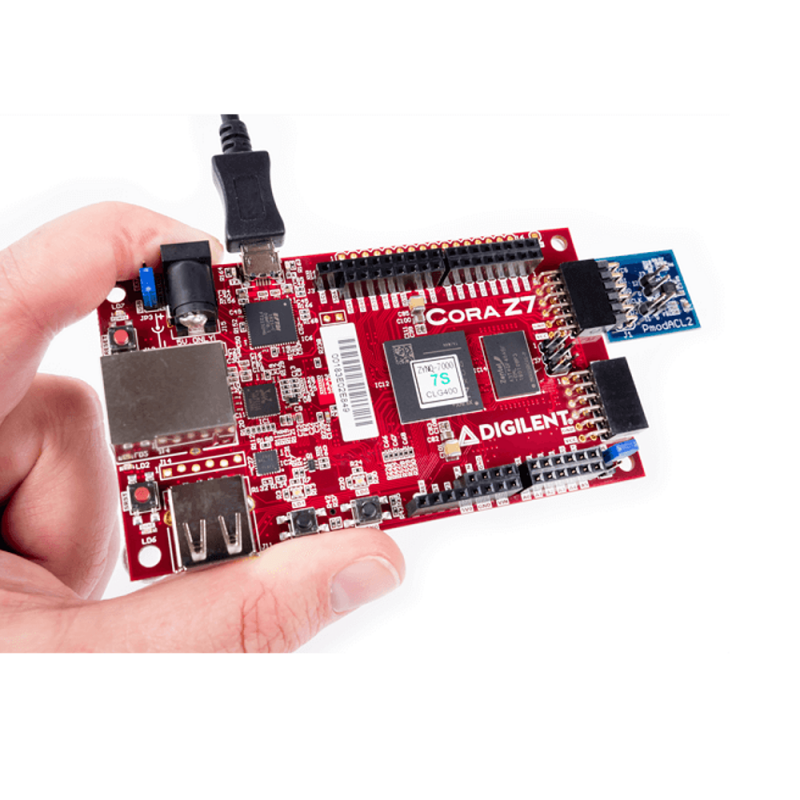

3. Arduino shield and Pmod connectors for add-on hardware devices
4. USB and Ethernet connectivity
5. A large array of general-purpose input/output ports for any number of different custom solutions
6. Small form factor and mounting holes
7. Programmable from JTAG and microSD card

1. Product Compliance:
   1. HTC:8473301180
   2. ECCN:EAR99

Package Includes:

1 x Digilent Cora Z7 Zynq-7000 Single Core for ARM/FPGA SoC Development Board
