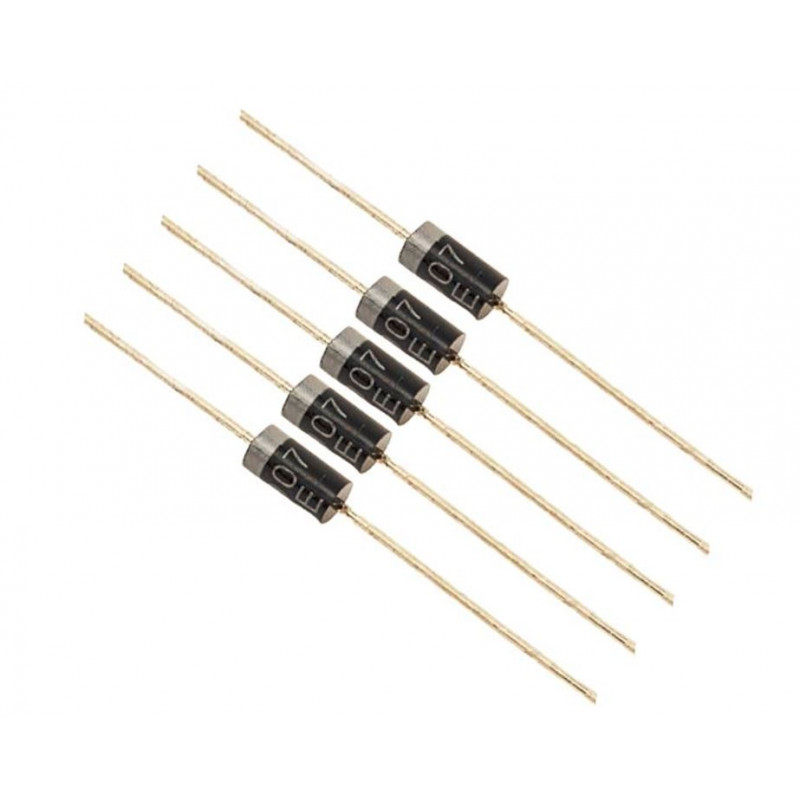

  • 1N4007 Diode - 5 Pieces Pack

The IN4007 diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. For 1N4007 Diode, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible. The power dissipation of this diode is 3W.

Features:-

Average forward current is 1A

Non-repetitive Peak  current is 30A

Reverse current is 5uA.

Peak repetitive Reverse voltage is 1000V

Power dissipation 3W

Available in DO-41 Package

High Surge Current Capability

Low Forward Voltage Drop

Diffused Junction

Surge Overload Rating to 30A Peak

Low Reverse Leakage Current

Low leakage current

Solder dip 275 °C max. 10 s, per JESD 22-B106

Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC

Mechanical Data:-

Case: DO-41

Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Finish - Bright Tin. Plated Leads Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Marking: Type Number

Weight: 0.30 grams (Approximate)

Application:-

Can be used to prevent reverse polarity problem

Half Wave and Full Wave rectifiers

Used as a protection device

Current flow regulators

Specification:-

Symbol Parameter Value Units
VRRM Peak Repetitive Reverse Voltage 1000 V
IF(AV) Average Rectified Forward Current  1 A
I2t Rating for fusing 30 A
IFSM Non- Repetitive Peak Forward Surge Current  3.7 A2sec
TJ Operating Junction Temperature 55 to +175
Tstg Storage Temperature Range 55 to +175


Related Document:-

 IN4007 Diode Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 5.9 (Inclusive of all Taxes)
