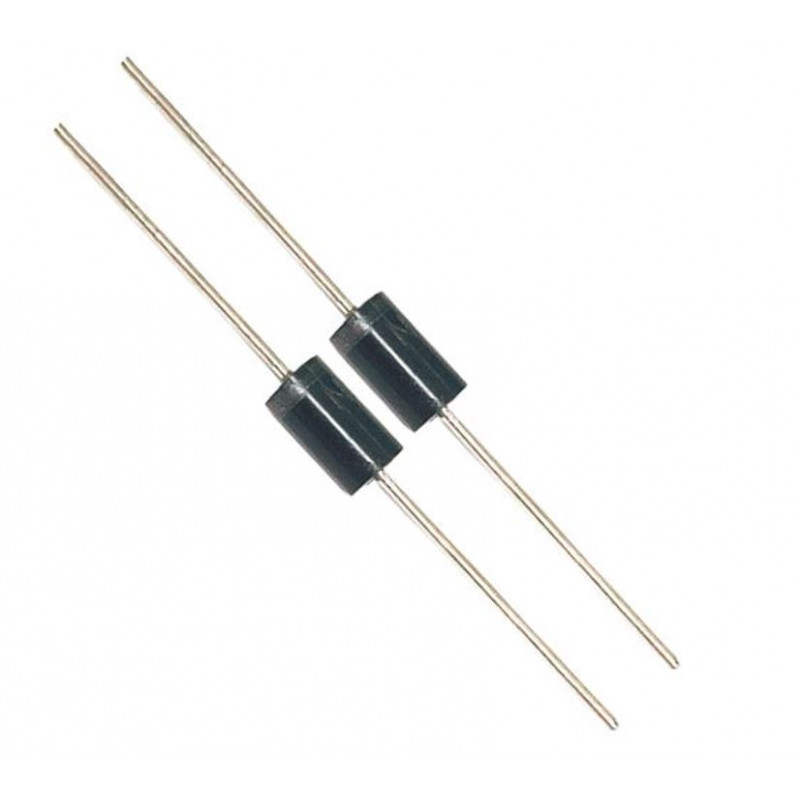

  • FR107 - Fast Recovery Diode - 2 Pieces pack

The FR107 is a 1.0A Fast Recovery Rectifier . The following features are:

  • Plastic Package: UL Flammability
  • Classification Rating 94V-0 Capable of
  • Meeting the Environmental Tests in MIL-STD-750C
  • High Reliability and Low Leakage
  • Fast Switching for High Efficiency

Mechanical Characteristics:-

• Case: DO-41, Molded Plastic

•  Terminals: Axial Lead, Solderable per MIL-STD-202, Method 208

•  Mounting Position: Any

•  Polarity: Cathode Band

•  Weight: 0.35 grams (approx.)

Specification:-

Symbol Parameter Value Units
VRRM Peak Repetitive Reverse Voltage 1000 V
VRMS Maximum RMS Voltage 700 V
VDC Maximum DC Blocking Voltage 1000 V
IF(AV) Maximum Average Forward Rectified Current 1 A
IFSM Non-Repetitive Peak Forward Surge Current 30 A
TJ Operating Junction Temperature Range − 65 to +175 °C
 Tstg Storage Temperature Range − 65 to +175 °C


Related Document:-

 FR107 Diode Data Sheet



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 7.08 (Inclusive of all Taxes)
