This DWIN 5 inch SMARTScreen is quite useful and is full features load SMARTscreen. It is called SMARTscreen because it comes with UI development Software pre-installed from the manufacturer which gives users great and useful tools to develop their own UI with great features. One can design UI Suh as a button, slider, Graph, Text Display, etc. on their own.
User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) .Also, it is supported with RGB colourand16.7M color's. It is also equipped with250nitnit brightness which makes it visible in daylight too.
It is compatible with All micro-controller Boards. which can be interface with I2C communications.
Features:
- Built-in DGUS II intelligent software
- Integrated smart screen
- Powerful data management
- Operating Voltages:5V typical.(MIN:4.5V,MAX:5.5V)
- Dimensions:143.5(W) 80.9(H) 15.8(T) mm
- 16.7M color's
- Capacitance touch screen, Buzzer
Display:
- Size -5
- Display Format -480800 Pixel Matrix
- Brightness -250nit
- Active Area 108.0mm (W) 64.8mm (H)
- Color 24-bit color 8R8G8B
- Backlight LED
Interface:
- UART4: Mode is determined by Jumper used after OS configuration )
ON=N81/E81/O81/N82, 3.3V&5V TTL/COMS ;
OFF=N81/E81/O81/N82, RS232.
Package Includes :
1 x DWIN HMI 5 Inch IPS LCD Resistive Touch Display
Specifications :-
| Operating Voltage (VDC) | 4.5 ~ 5.5 |
| Flash Memory | 16MB |
| RAM | 128KB |
| LED Brightness (MCD) | 250 |
| Interface | I2C |
| Touch Type | Resistive |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5190.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

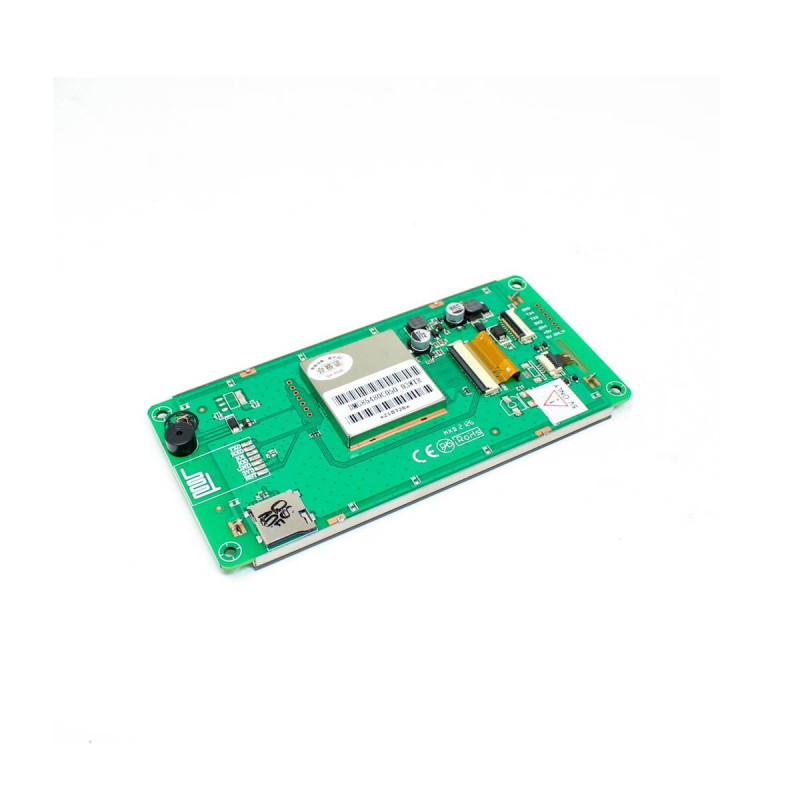

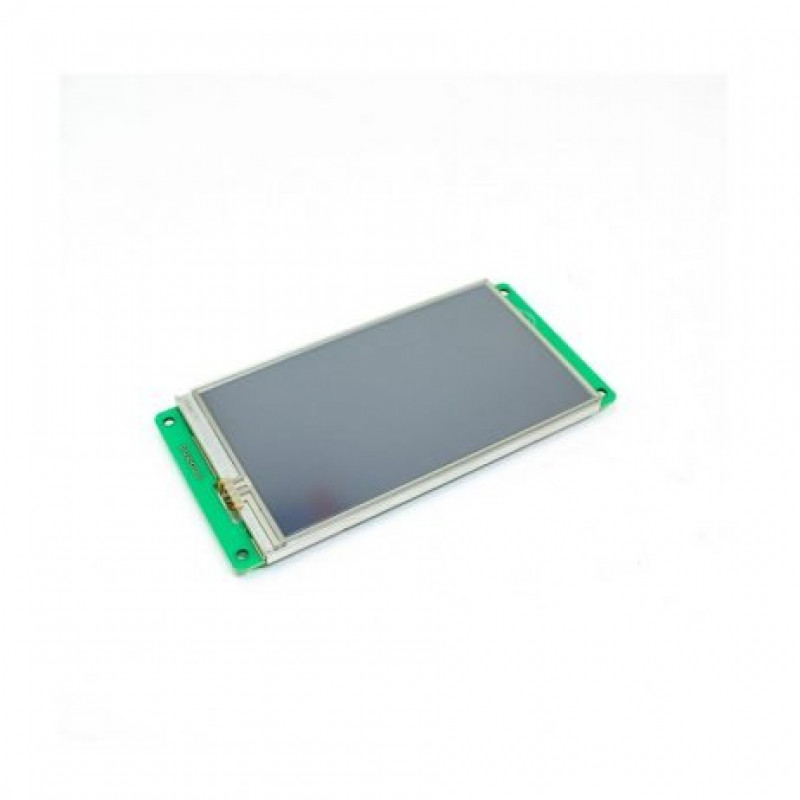

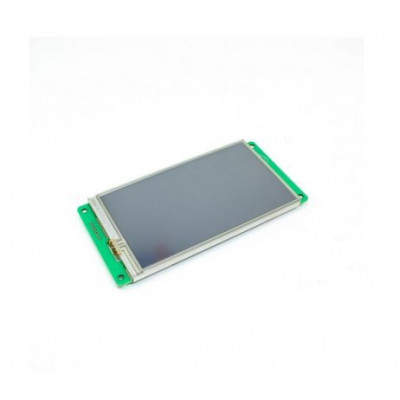

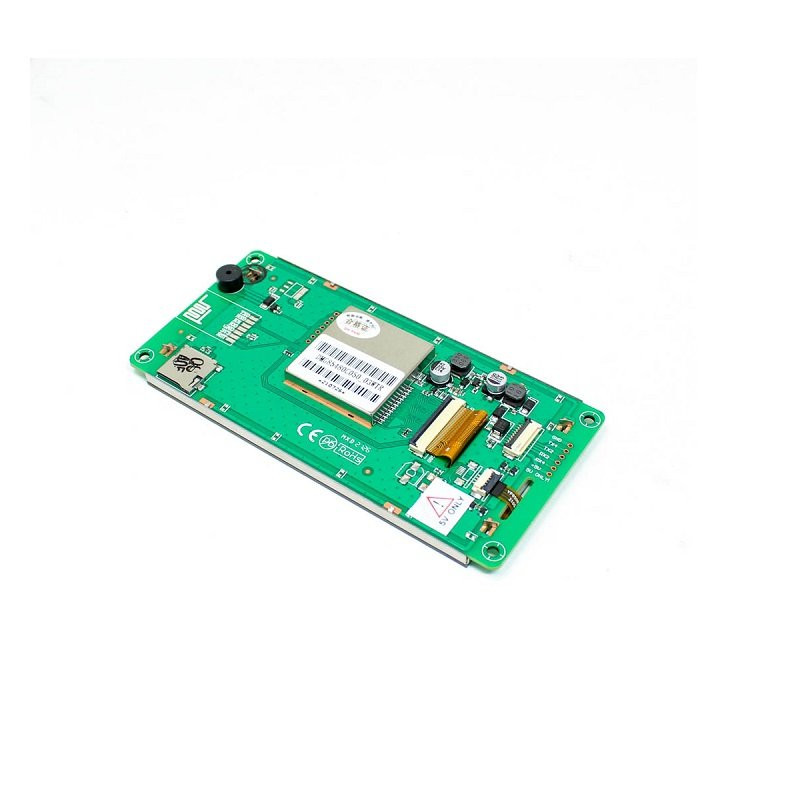

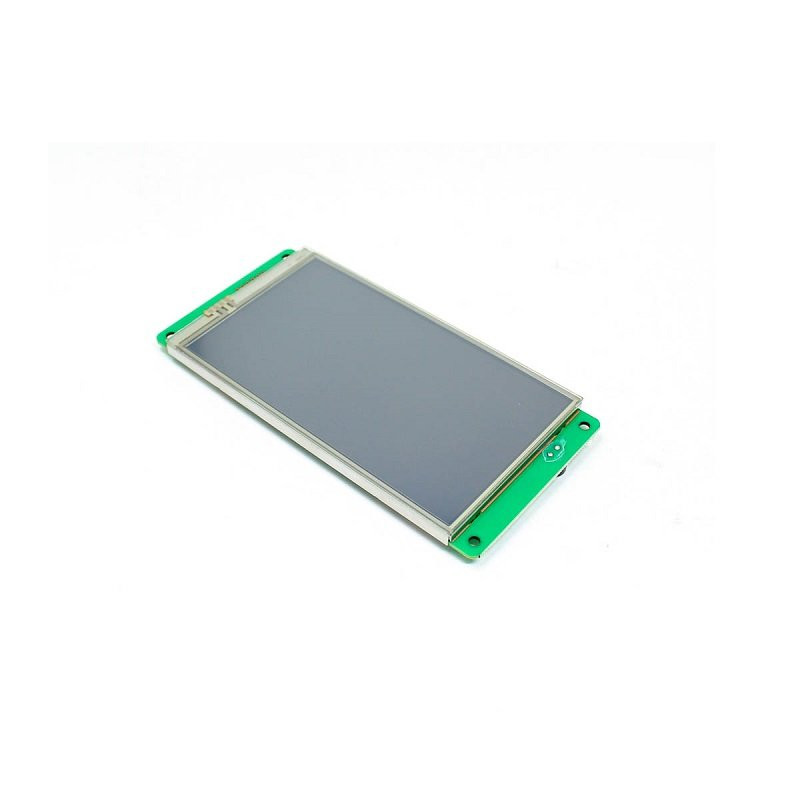

DWIN HMI 5 Inch IPS LCD Resistive Touch Display
- Product Code: EC-8120
- Availability: 3
-
Rs.4399.00
- (Excluding 18% GST)
