Quality bipolar fabrication with innovative design concepts are employed for the MC33181/2/4, MC34181/2/4 series of monolithic operational amplifiers. This JFET input series of operational amplifiers operates at 210 µA per amplifier and offers 4.0 MHz of gain bandwidth product and 10 V/µs slew rate. Precision matching and an innovative trim technique of the single and dual versions provide low input offset voltages. With a JFET input stage, this series exhibits high input resistance, low input offset voltage and high gain. The all NPN output stage, characterized by no dead band crossover distortion and large output voltage swing, provides high capacitance drive capability, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response. The MC33181/2/4, MC34181/2/4 series of devices are specified over the commercial or industrial/vehicular temperature ranges. The complete series of single, dual and quad operational amplifiers are available in the plastic DIP as well as the SOIC surface mount packages

Features :-

• Low Supply Current: 210 µA (Per Amplifier)
• Wide Supply Operating Range: ±1.5 V to ±18 V
• Wide Bandwidth: 4.0 MHz
• High Slew Rate: 10 V/µs
• Low Input Offset Voltage: 2.0 mV
• Large Output Voltage Swing: –14 V to +14 V (with ±15 V Supplies)
• Large Capacitance Drive Capability: 0 pF to 500 pF
• Low Total Harmonic Distortion: 0.04%
• Excellent Phase Margin: 67°
• Excellent Gain Margin: 6.7 dB
• Output Short Circuit Protection
• Offered in New TSSOP Package Including the Standard SOIC and DIP Packages

Specifications :-

• Power Supply Voltage : +36V
• Operating Junction Temperature : +150°C
• Storage Temperature Range : –60 to +150°C

Package Includes :-

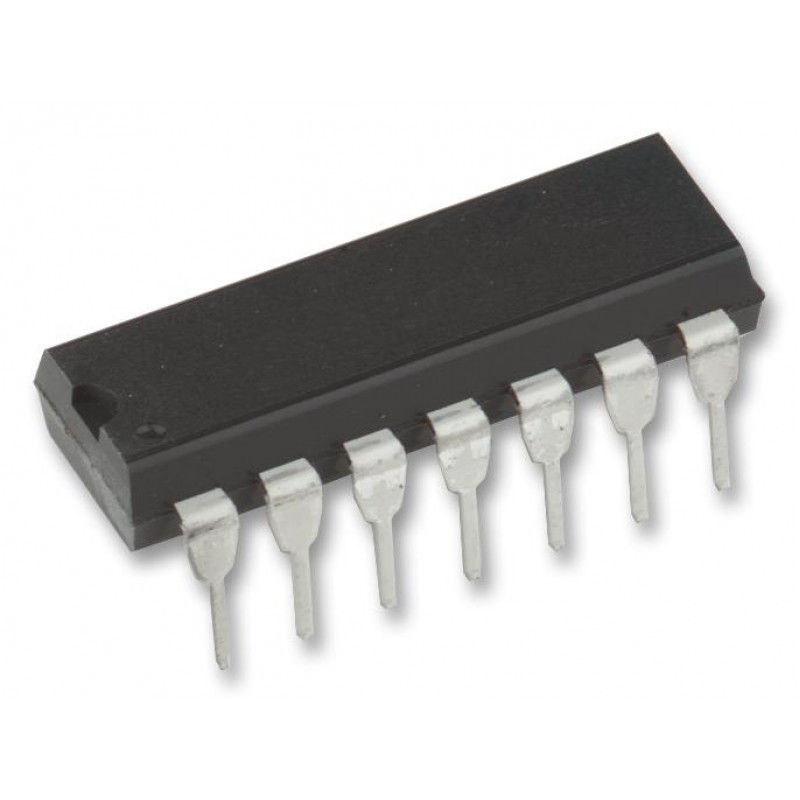

1 X MC34184 Low Power High Slew Rate Wide Bandwidth JFET Input Op-Amp IC DIP-14 Package
