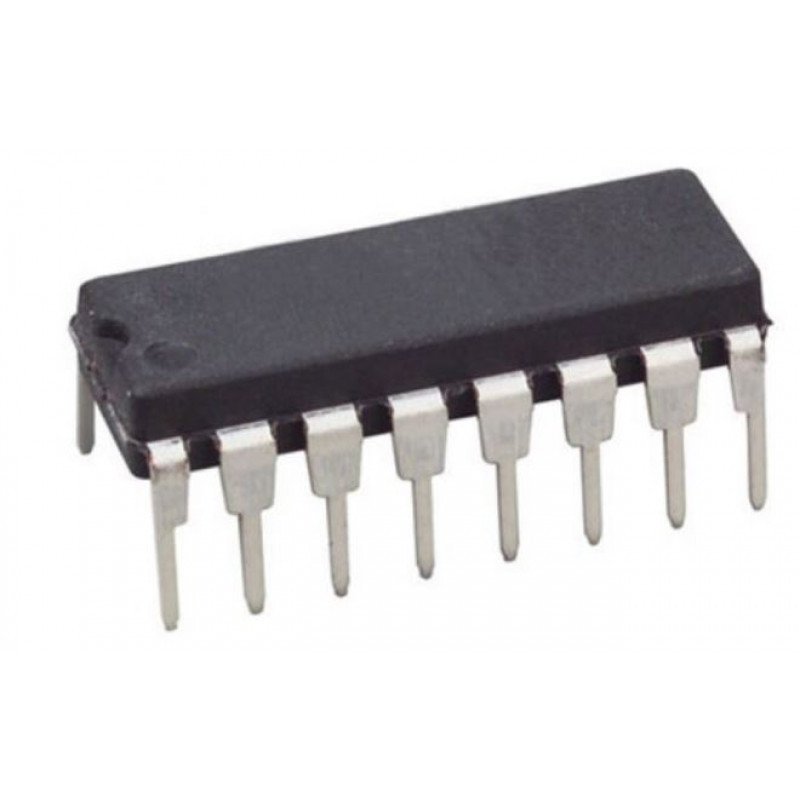

  • MC3448 Quad Three-State Bus Transceiver IC DIP-16 Package

This bidirectional bus transceiver is intended as the interface between TTL or MOS logic and the IEEE Standard Instrumentation Bus (488-1978, often referred to as GPIB). The required bus termination is internally provided. Each driver/receiver pair forms the complete interface between the bus and an instrument. Either the driver or the receiver of each channel is enabled by its corresponding Send/Receive input with the disabled output of the pair forced to a high impedance state. An additional option allows the driver outputs to be operated in an open collector(1) or active pull-up configuration. The receivers have input hysteresis to improve noise margin, and their input loading follows the bus standard specifications


Features :-

  • Four Independent Driver/Receiver Pairs Three-Stats Outputs
  • High Impedance Inputs Receiver Hysteresis-600 mV (Typ)
  • Fast Propagation Times-15-20 ns (Typ)
  • TTL Compatible Receiver Outputs Single +5 Volt Supply
  • Open Collector Driver Output Option(1) Power Up/Power Down Protection (No Invalid Information Transmitted to Bus)
  • No Bus Loading When Power Is Removed From Device Terminations Provided: Termination Removed When device is unpowered


Specifications :-

  • Power Supply Voltage : 7.0Vdc
  • Input Voltage : 5.5Vdc
  • Driver output Current : 150mA
  • Junction Temperature : 150mA
  • Operating ambient Temperature Range : 0 to +70°C
  • Storage Temperature Range : -65 to +150°C


Package Includes :-

1 X MC3448 Quad Three-State Bus Transceiver IC DIP-16 Package
