The MC3486 is a monolithic quadruple differential line receiver designed to meet the specifications of ANSI Standards TIA/EIA-422-B and TIA/EIA-423-B and ITU Recommendations V.10 and V.11. The MC3486 offers four independent differential-input line receivers that have TTL-compatible outputs. The outputs utilize 3-state circuitry to provide a high-impedance state at any output when the appropriate output enable is at a low logic level. The MC3486 is designed for optimum performance when used with the MC3487 quadruple differential line driver. It is supplied in a 16-pin package and operates from a single 5-V supply. The MC3486 is characterized for operation from 0°C to 7

Features :-

• Meets or Exceeds the Requirements of ANSI Standards EIA/TIA-422-B and EIA/TIA-423-B and ITU Recommendations V.10 and V.1
• 3-State, TTL-Compatible Output
• Fast Transition Times
• Operates From Single 5-V Supply
• Designed to Be Interchangeable With Motorola MC3486

Specifications :-

• Supply voltage : 4.75V - 5.25V
• Common-mode input voltage Max : +7V
• Differential input voltage Max : +6V
• High-level enable input voltage Min : 2V
• Low-level enable input voltage Max : 0.8V
• Operating free-air temperature Max : 70°C

Package Includes :-

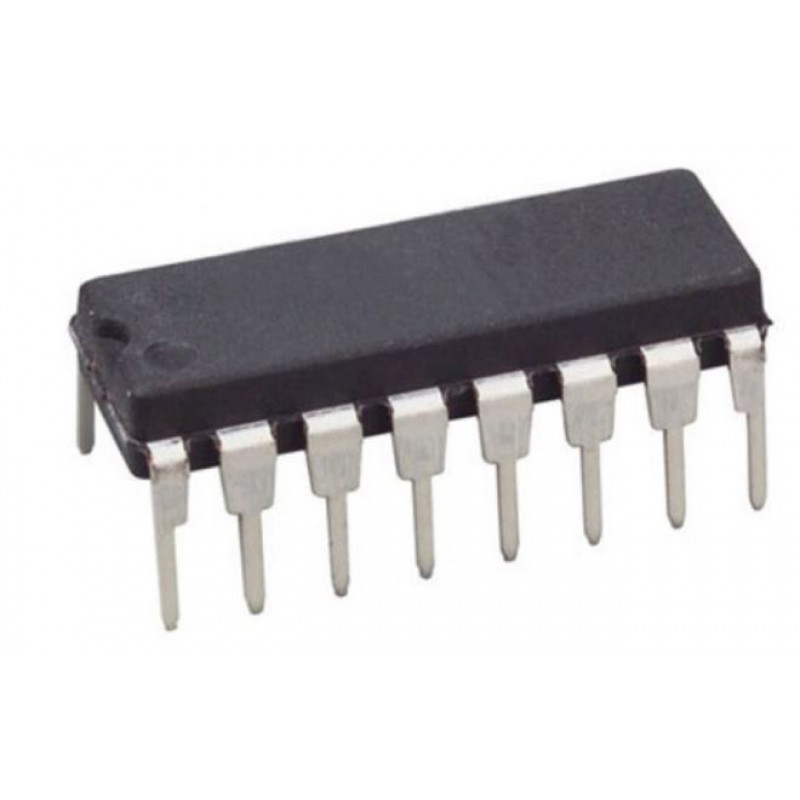

1 X MC3486 Quadruple Differential Line Receiver with 3-State Outputs IC DIP-16 Package
