This probe assists in the transfer of data to and from an iButton. The probe is panel mounted and presents a flat faceplate and a round profile that provides a self-aligning interface that matches the circular rim of an iButton MicroCanpackage.
Additional features include an LED within the probe that provides user-feedback signaling, and a Molex connector terminated cable assembly that makes it easy to connect into a system.
Features:
- Simple, low-cost metal stampings form a read/write probe for the iButton family
- Probe guides the entry of the iButton
- iButton slides over the surface to self-clean contacts
- Accessible shallow probe cavity simplifies removal of debris such as mud
- Flexible design supports panel-mount or hand-grip mount with optional tactile feedback
- Bright tarnish-resistant metal surface provides millions of operations
- Panel-mount probe pre-wired for easy installation
- Hand-grip probe mates to an RJ-11 jack for quick installation
Package Includes:
1 x DS9092+ iButton Probe with LED Light
Specifications:
| LED max. rating | 20mA DC @ 2.7V typ. |
| Max. panel thickness | 3mm |
| Fixing type | Brass M18 x 1 nut |
| Button Outer Diameter (mm) | 22 |
| Cable Length (cm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 172.28 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

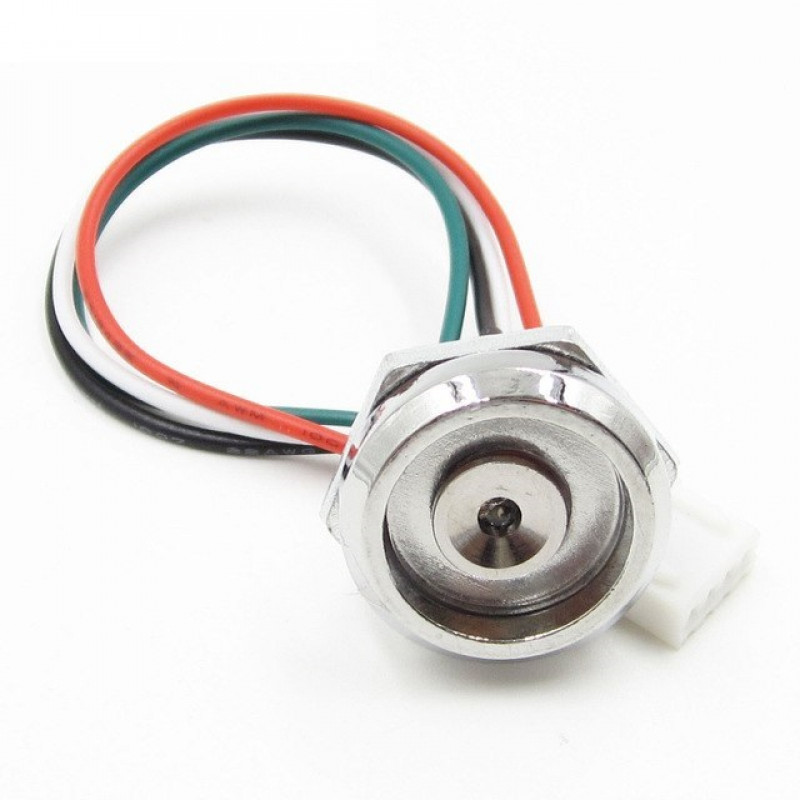

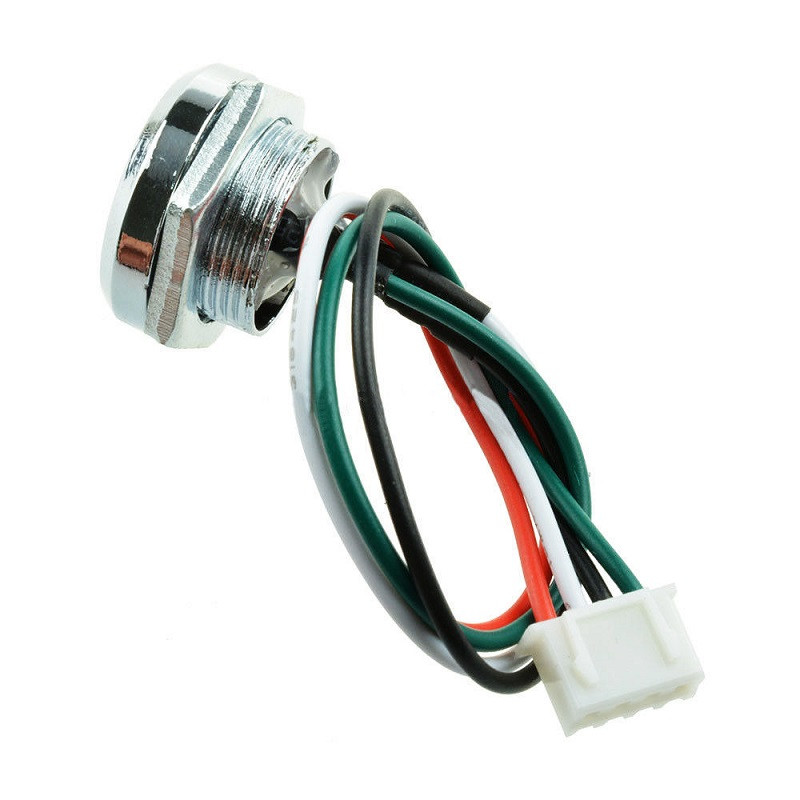

DS9092 plus iButton Probe with LED Light
- Product Code: EC-6701
- Availability: 9
-
Rs.175.00
- (Excluding 18% GST)
