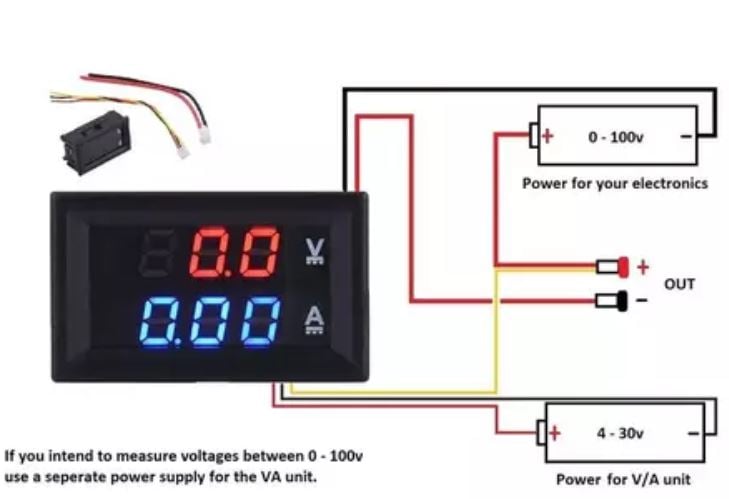

Display Voltage and current simultaneously in different colors, red for Voltage, Blue for current (the current is Measured in the negative rail). 2 Require external power supply; with reversed connection protection. 3 Ground wire of testing end and power supply terminal is the same wire; quick refresh of about 500 MS/time. It has voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement.
Note: This product is without a built-in shunt.
Features:
- Rapid response recovery characteristics.
- It Has a long life and reliable stability.
- High precision, four digital displays.
- Measure voltage: DC 0 ~ 100V
- Operating voltage: DC 4.5 ~ 30V
- Minimum resolution(V): 0.1V
- Minimum resolution(A): 0.01A
- Operating current: 20mA
- Display: three 0.28 LED digital tube
- Display color: Red and Blue (two-color display)
- Dimensions: 48 x 29 x 21mm
- Mounting cutout: 45.5 x 26.5mm
- Refresh rate: about 500mS / times
Package Includes:
1 x Dual Led 0.28 Display for DC0-100V 50A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 50A
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

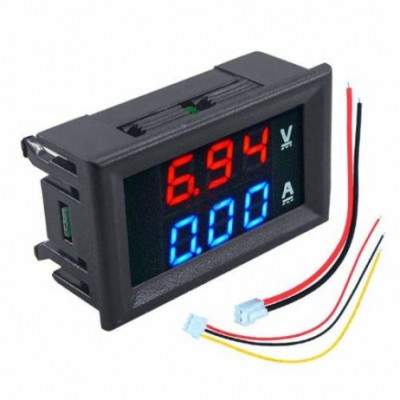

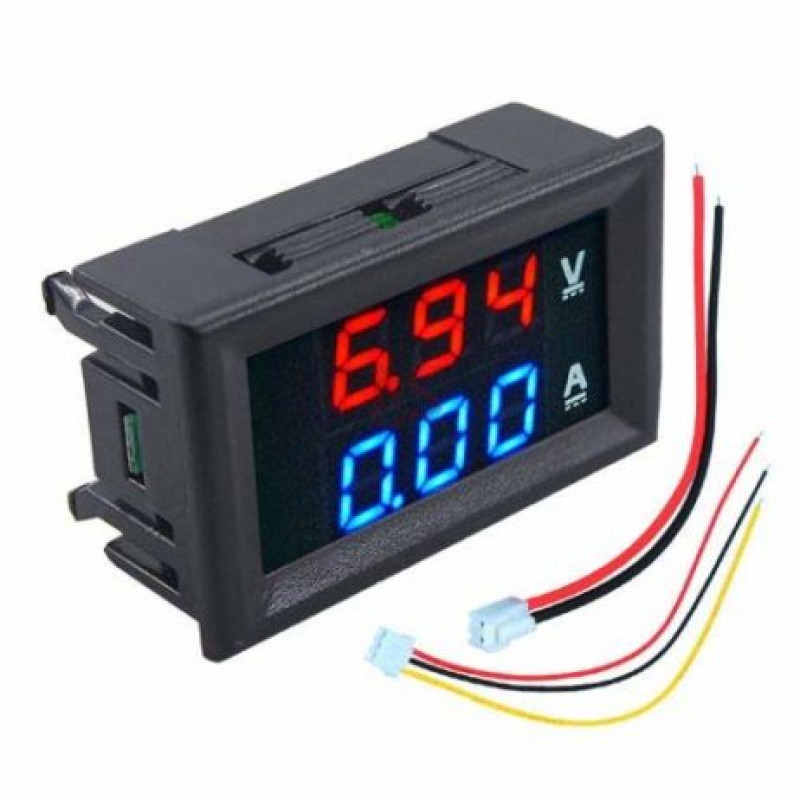

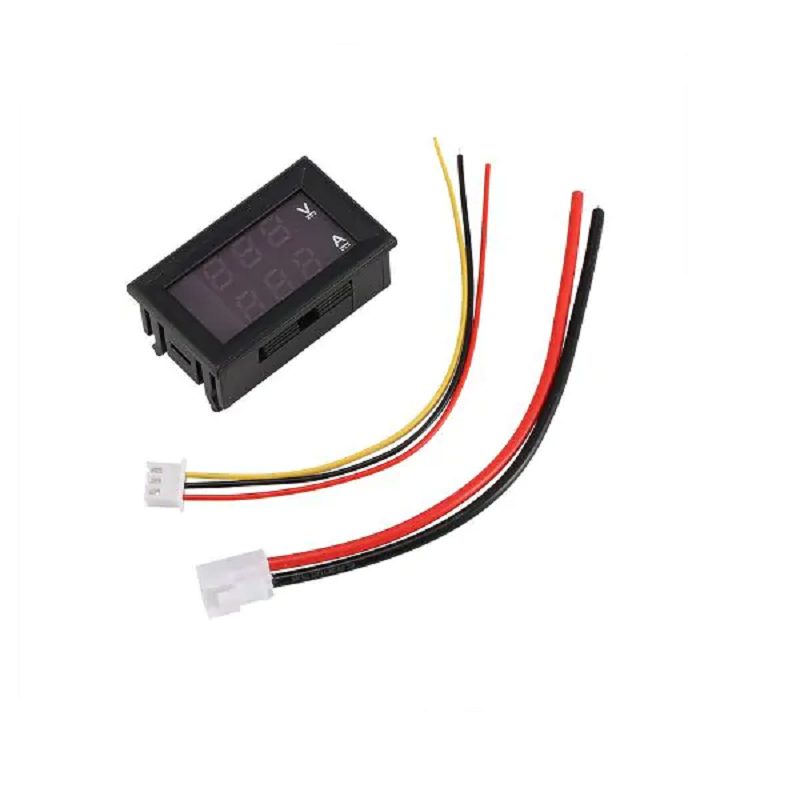

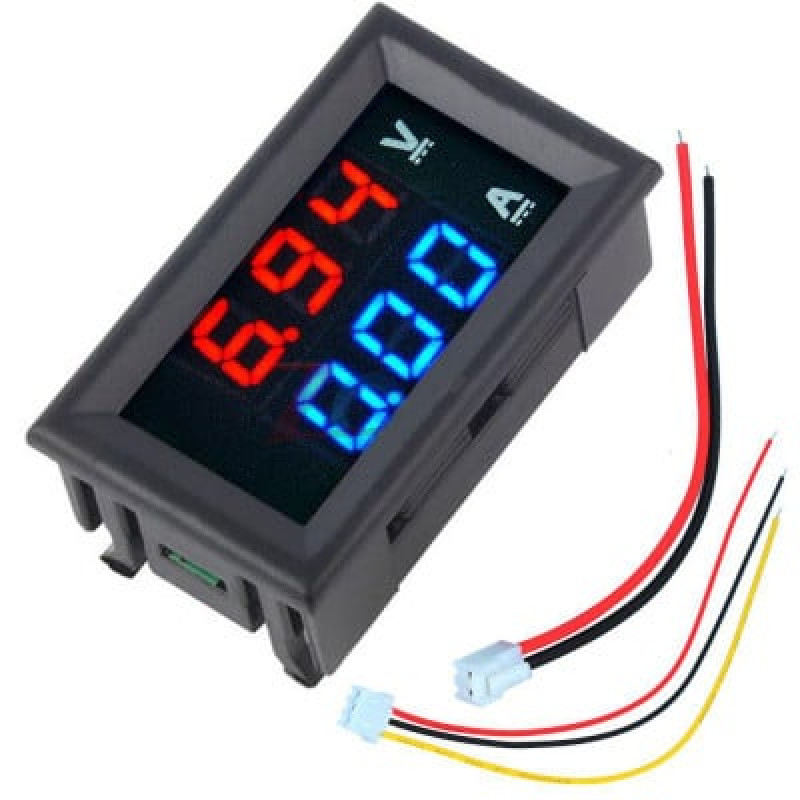

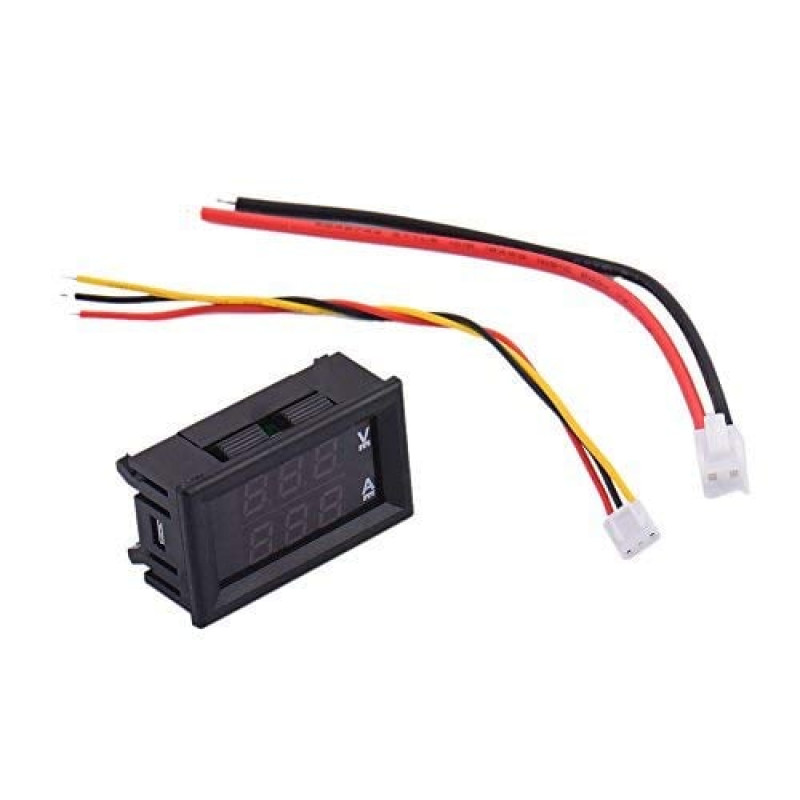

Dual Led 0.28 Display for DC0-100V 50A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 50A
- Product Code: EC-24749
- Availability: 11
-
Rs.269.00
- (Excluding 18% GST)
