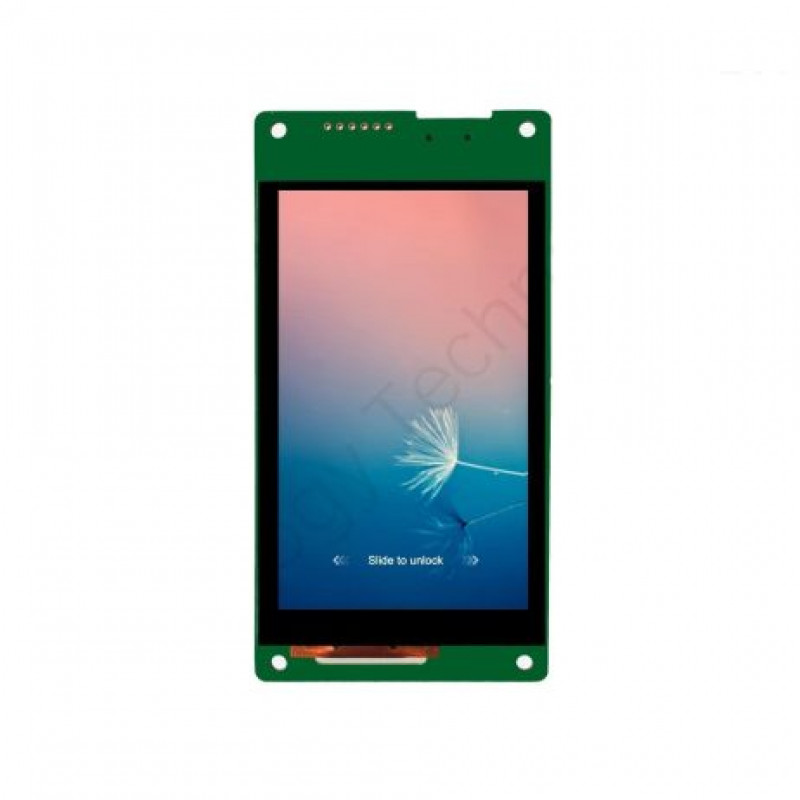

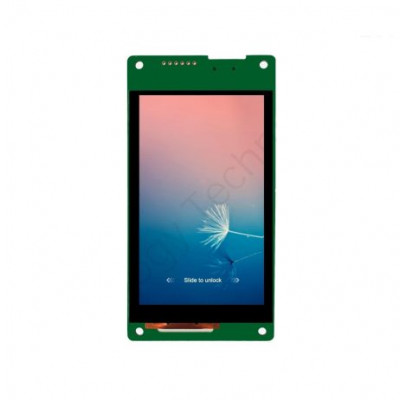

The DWIN 4 inch DMG80480C040_03WTC is a compact and versatile display module designed to offer a high-quality visual experience for various applications. With a screen size of 4 inches and a resolution of 800 x 480 pixels, this display strikes a balance between a small form factor and ample visual detail.
The 800 x 480 resolution ensures sharp and crisp images, making the DMG80480C040_03WTC well-suited for applications where clarity and precision are crucial. This display module is ideal for integration into portable devices, handheld instruments, and other projects where space constraints are a consideration.
Note: For more technical details go through the Datasheet in the attachment section
Features:
- Based on T5L1, running DGUS II system, commercial grade.
- 4.0-inch, 480*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
- Capacitive touch screen
Specifications:
- LCD Type: IPS, TFT LCD
- Viewing Angle: Wide viewing angle,85/85/85/85(L/R/U/D)
- Resolution: 480800 pixels (0/90/180/270)
- Color: 24-bit 8R8G8B
- Active Area: (A.A.) 51.4mm (W)86.0mm (H)
- View Area: (V.A.) 51.8mm (W)86.4mm (H)
- Backlight Mode: LED
- Backlight Service: Lif
Package Includes:
1 x DWIN 4 inch DMG80480C040_03WTC 800 X 480
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DWIN 4 inch DMG80480C040_03WTC 800 X 480
- Product Code: EC-29367
- Availability: 4
-
Rs.2595.00
- (Excluding 18% GST)
