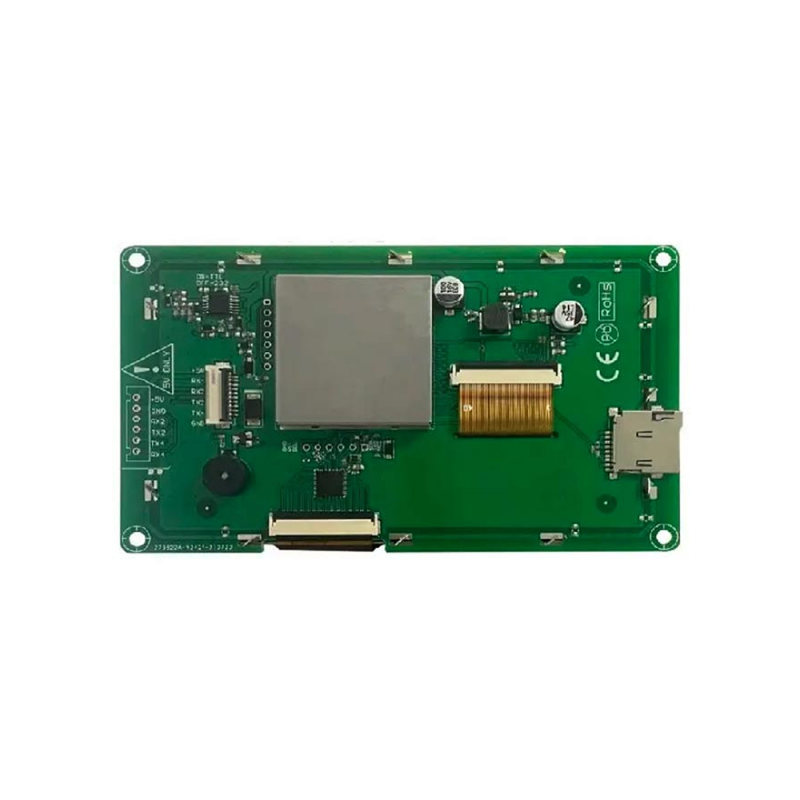

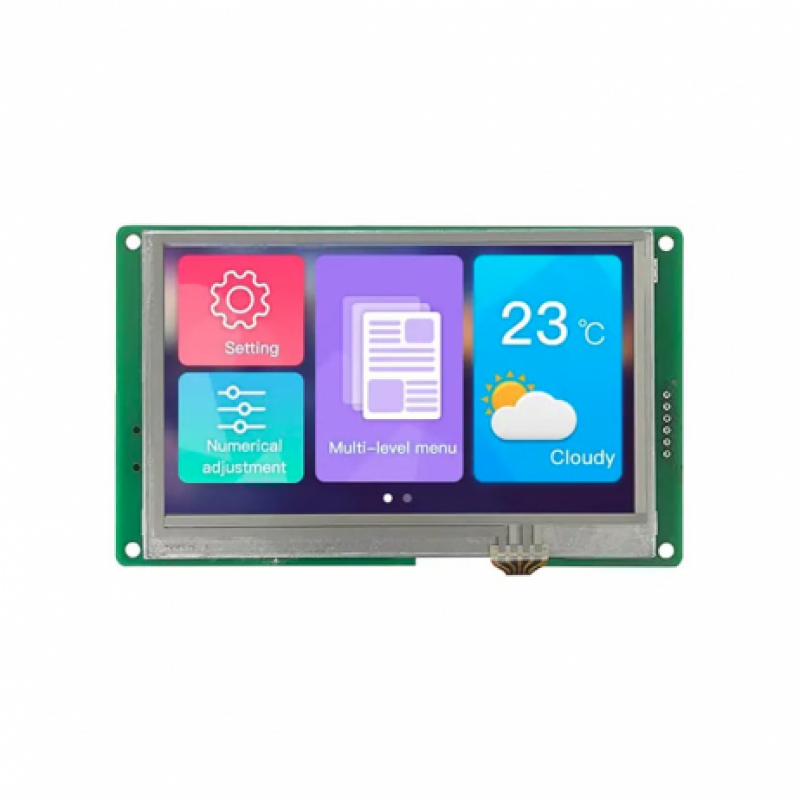

The DMG48270C043_04WTC 4.3 Inch 480272 TTL/RS232 HMI LCD Display Capacitive Touch 16MB Flash Buzzer SD interface is developed by DWIN. The NOR Flash memory in the display is available to store the user database.
The LCD is integrated with a running DGUS II system, a GUI (Graphical User Interface) development software. The pre-installed UI user interface development software can be used to develop your own design and customised features like buttons, text display, graph and slider etc. The T5L1 DWIN development software is a human-machine interface dedicated to ASIC designed by DWIN Technology for AIoT application applications. This software is based on a T5L chip that is a low-power, cost-effective dual-core 8051 processor.
Features:
- Based on self-designed T5L0, 16.7M Color, 18bit, 480272, Cheap TV-TN-TFT-LCD
- Capacitive touch screen
- RS232 Interface,10Pin1.0mm FCC connection wire
- Download via SD card or on-line serial port
- Easy-to-use DWIN DGUS V7.624 GUIs Development, no coding skills required
- Dual Development System: DGUS II/ TA(Instruction set).
- Cost-Effective TN screen
Package Includes:
1 x DWIN DMG48270C043_04WTC 4.3 Inch 480272 TTL/RS232 HMI LCD Display Capacitive Touch 16MB Flash Buzzer SD interface
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
DWIN DMG48270C043_04WTC 4.3 Inch 480272 TTL/RS232 HMI LCD Display Capacitive Touch 16MB Flash Buzzer SD interface
- Product Code: EC-25949
- Availability: 1
-
Rs.1557.00
- (Excluding 18% GST)
