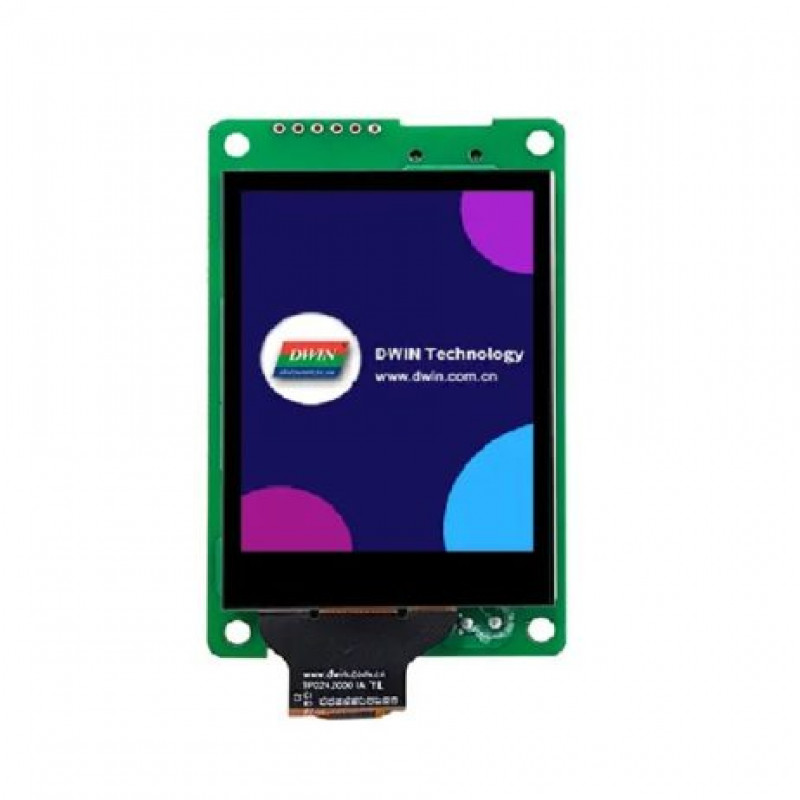

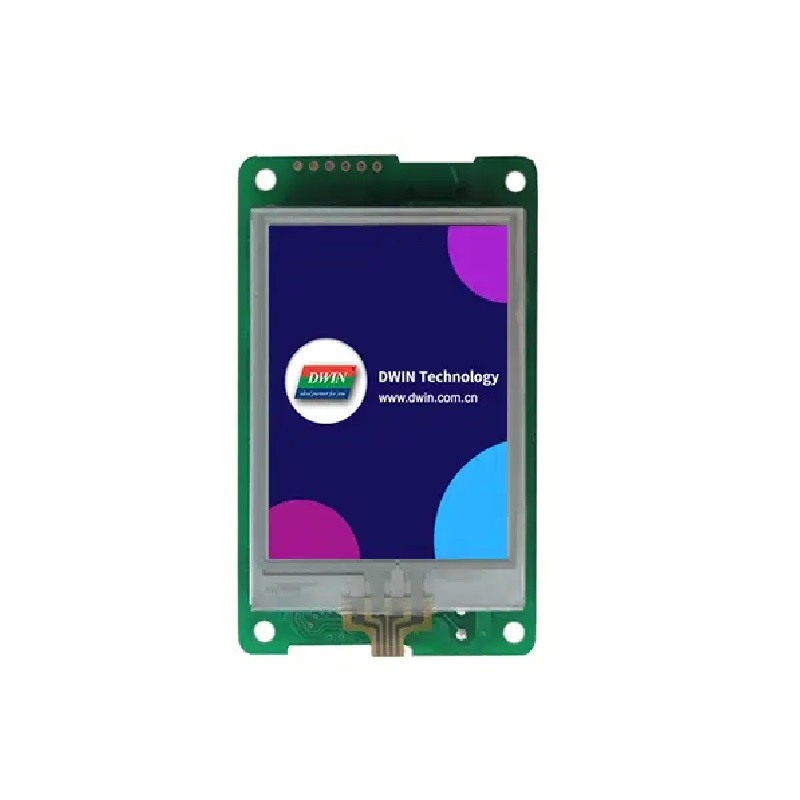

This DWIN IPS Resistive touch 2.4 inch HMI display (Human Machine Interface) LCD module with Resistive touch screen. This LCD module allows the user to design a rich GUI based interactive system on the LCD. It has an audible ton indication s the user interacts with the module. This type of smart LCD can be used in a variety of machines such as vending machines etc where an end-user needs to interact with the machine.

Any microcontroller can serially communicate with this module to send or receive the data. Standard UART based serial communication interface allows the same. Special GUI and functionality design software is available for the design of the interaction flow on the smart LCD. Flexible approach to communicating with the LCD module open a lot of applications possibility. A variety of HMI utilities can be achieved using this fast response, Resistive touch smart HMI display module.

If comparing TFT screen in display performance, IPS LCD is better than traditional a-is TN TFT LED display in viewing angle and color conversion, IPS is with higher contrast than TN TFT LCD

Resistive touchscreens: which allow both finger and non-finger input (e.g., glove, stylus), are used in feature phones, global positioning systems (GPS), printers, digital cameras, and larger displays. They generally support single-finger touch and basic gestures, and cost less to produce

HMI Touch screen displays: arepanel-mounted devices with responsive touch screens for operator input. They display graphics and allow the easy selection of options, making them helpful in many industrial and commercial environments. The touch panels aid control and visualization in a wide range of applications

In-Plane Switching (IPS) technology is another type of LCD TV technology. These panels are more accurate in their picture reproduction and show more accurate color from narrow viewing angles. In simple terms, IPS was better than LCD

In Conclusion. Like other touchscreen technologies, resistive has several advantages and disadvantages. They arestrong and durable while also supporting all forms of touch commands. On the other hand, resistive touchscreens offer a lower level of sensitivity, as well as display resolution, than capacitive touchscreens

Features:

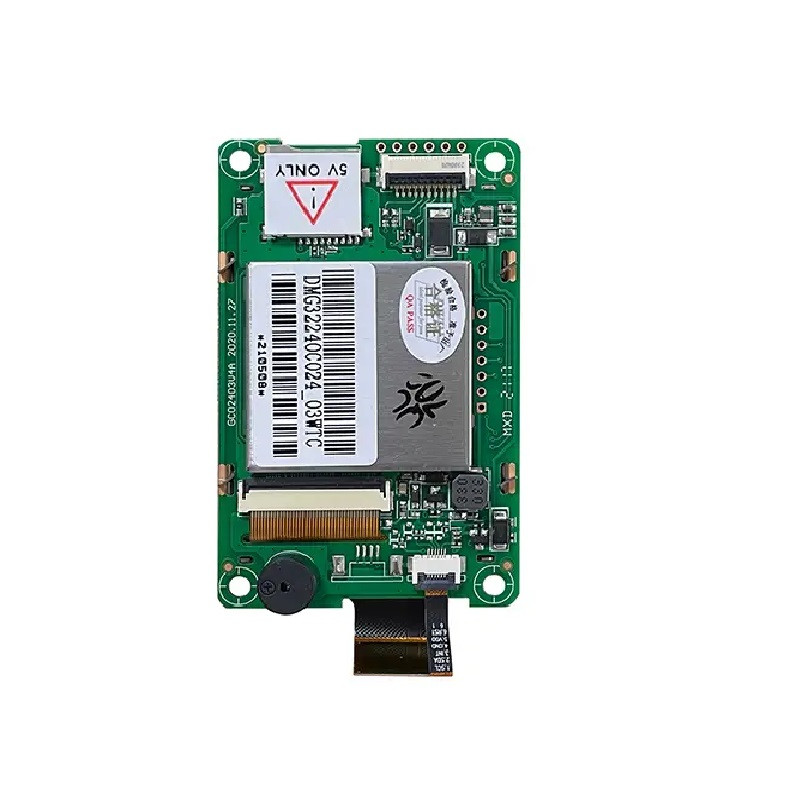

1. Based on self-designed T5L ASIC, 2.4 Inches, 262K Colors, 320240 Pixel TFT LCD
2. No/Resistive/Capacitive touch screen Optional
3. 10Pin1.0mm FCC connection wire
4. Two Development System: DGUS II/ TA(Instruction set)
5. SD card or DGUS TOOL on-line serial port downloading ways
6. Net Weight: DMG32240C024_03WTR : 35g / DMG32240C024_03WTC: 35g
7. It is easy to use DWIN DGUS V7.6 GUIs Development, no coding skills required

Packages includes:

1 x DWIN IPS Resistive touch 2.4 inch HMI display
