Key Specifications:-

  • Output Voltage         24V
  • Type                 DIN Rail Type
  • Approx. Wattage 75W
  • Features                 Standard
  • Series                 EDR(Economical)
  • Mechanical Form DIN Rail
  • Warranty                 2 Years Warranty
  • IP Level                 Non-Waterproof
  • Input Voltage         100-240V auto-select
  •


Features:-

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection

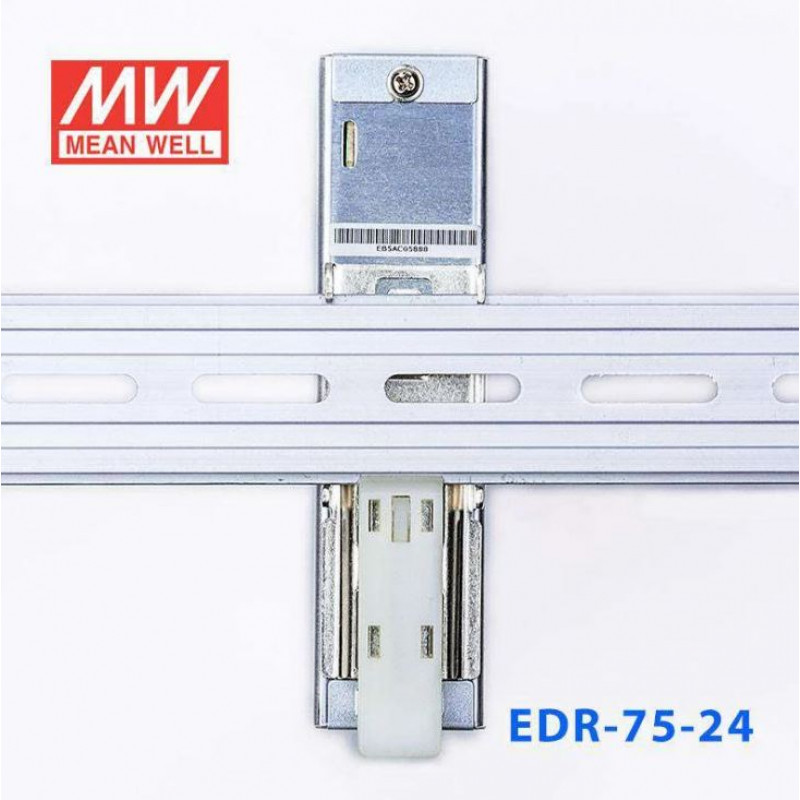

  • Can be installed on DIN rail TS35 / 7.5 or 15
  • UL508 (industrial control equipment) listed
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Low cost
  • 3 years warranty for NDR series
  • 2 years warranty for EDR series

Specifications:-

AC input voltage range90~264VAC; 127~370VDC
AC inrush current (max.)Cold start, 35A at 230VAC
DC adjustment range12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Current adjustment range10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection105%~130% Constant current limiting, auto-recovery
Over voltage protection14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
Over temperature protectionShut down o/p voltage, re-power on to recover
Withstand voltageI/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature-20~+60!aC (refer to output derating curve
Safety standardsUL60950-1, TUV EN60950-1 approved
EMC standardsEN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
Connection (screw DIN terminal)I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)32x 125.2x 102


Related Documents:-

 EDR-75 Datasheet

 EDR-75-24 Test Report

 CE Certificate (EDR-75)

 UL Certificate (EDR-75)

 TUV Certificate (EDR-75)

 EMC Certificate(EDR-75)

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2059.1 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

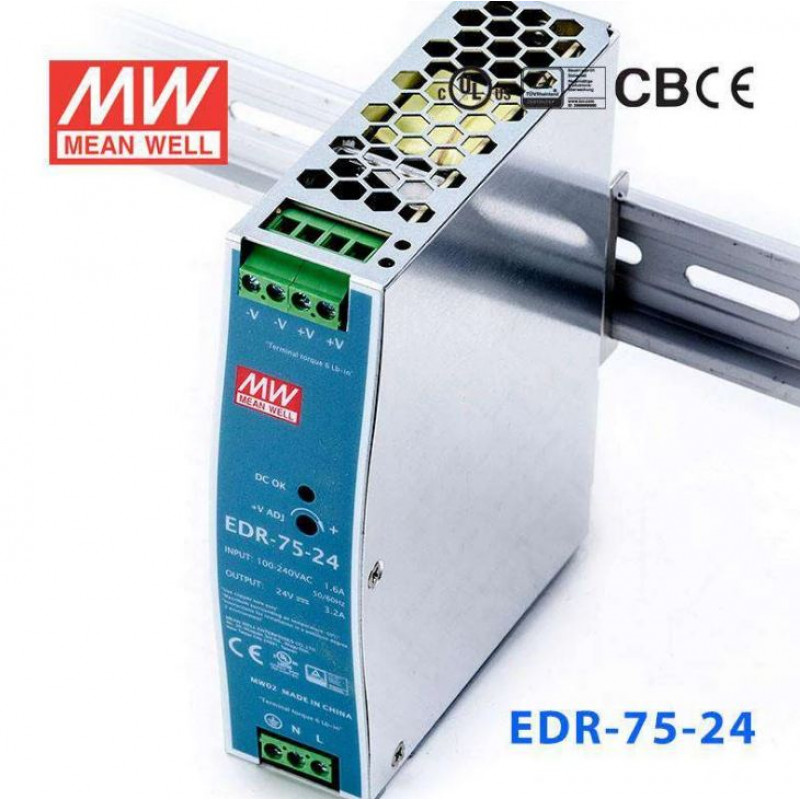

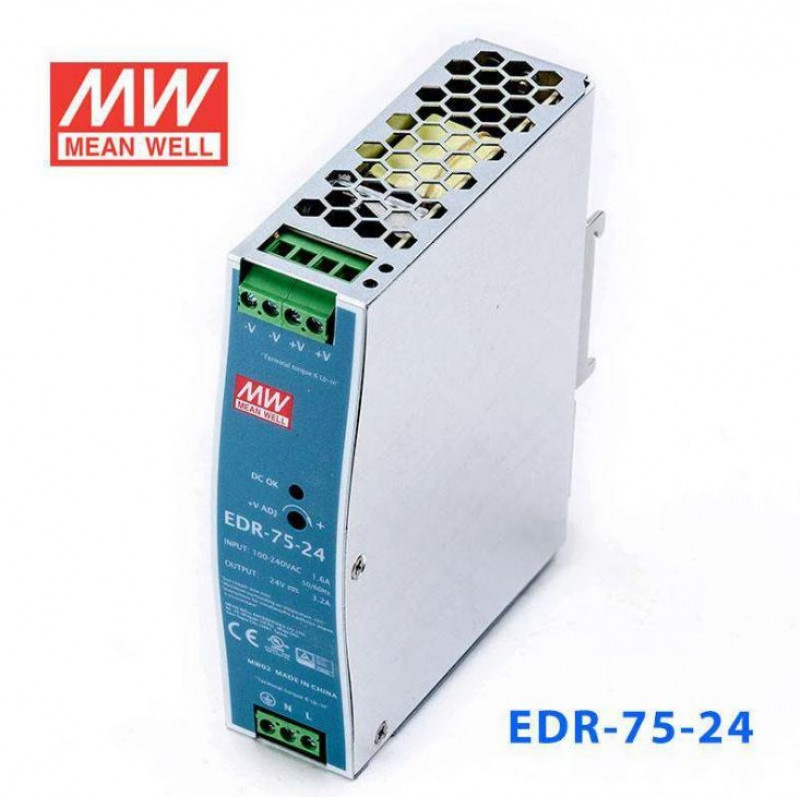

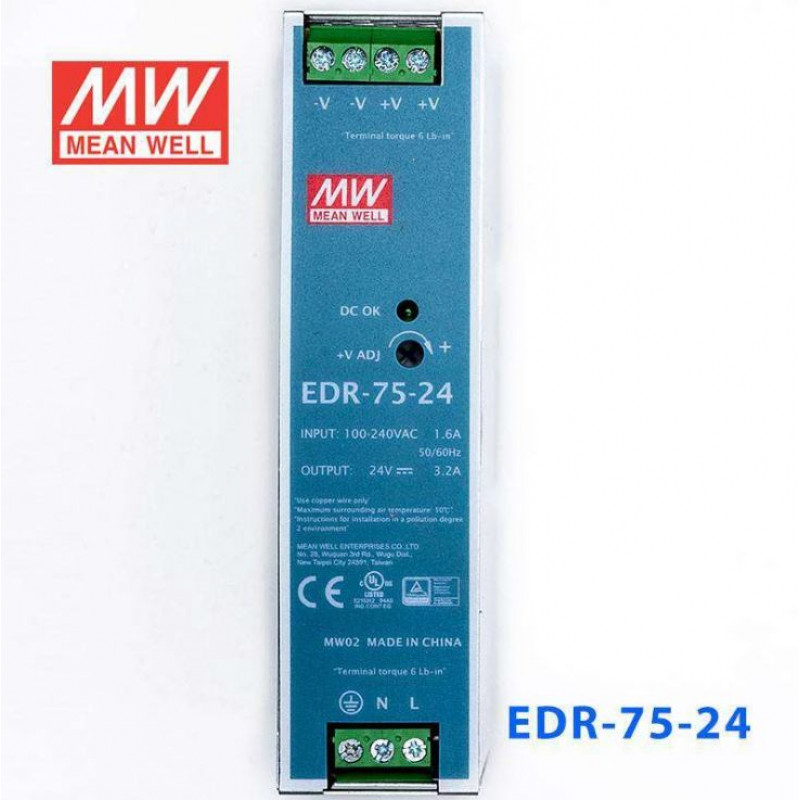

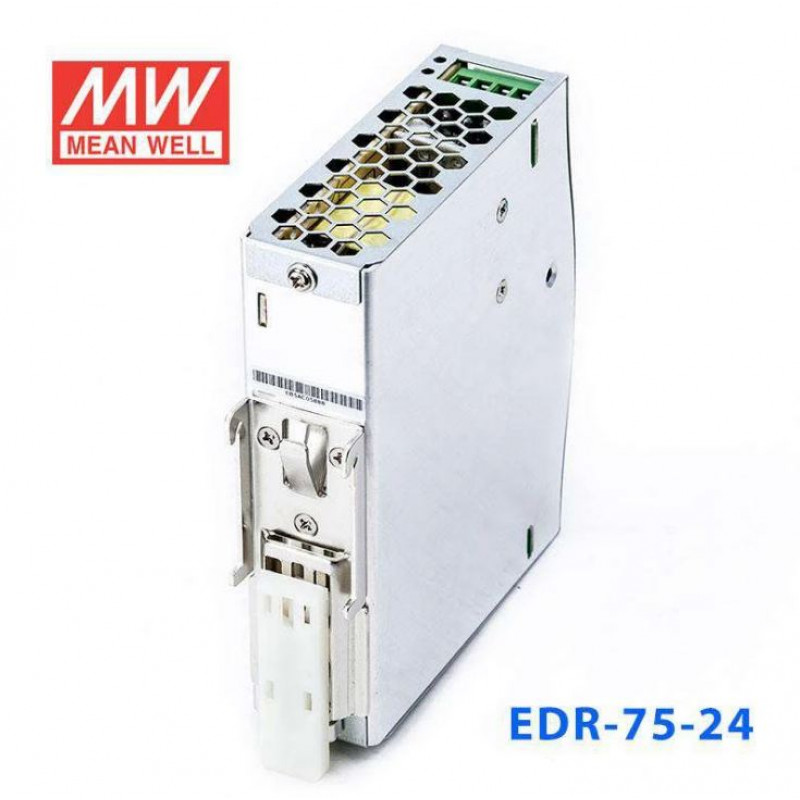

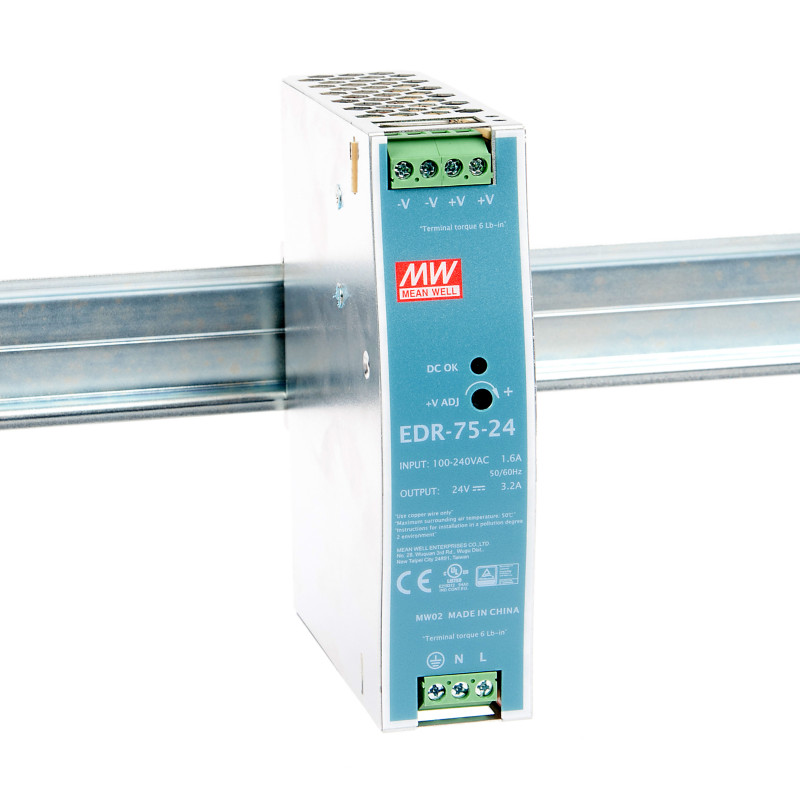

EDR-75-24 Mean well SMPS - 24V 3.2A 76.8W Din Rail Metal Power Supply

  • Product Code: EC-3606
  • Availability: Out Of Stock
  • Rs.1745.00
  • (Excluding 18% GST)
