CD4027 is a single monolithic chip integrated circuit containing two identical complementary-symmetry J-K master-slave flip-flops. Each flip-flop has provisions for individual J, K, Set, Reset, and Clock input signals. Buffered Q and Q\ signals are provided as outputs. This input-ouput arrangement provides for compatible operation with the RCA-CD4013B dual D-type flip-flop.

The CD4027 is useful in performing control, register, and toggle functions. Logic levels present at the J and K inputs along with internal self-steering control the state of each flip-flop; changes in the flip-flop state are synchronous with the positive-going transition of the clock pulse. Set and reset functions are independent of the clock and are initiated when a high level signal is present at either the Set or Reset input.

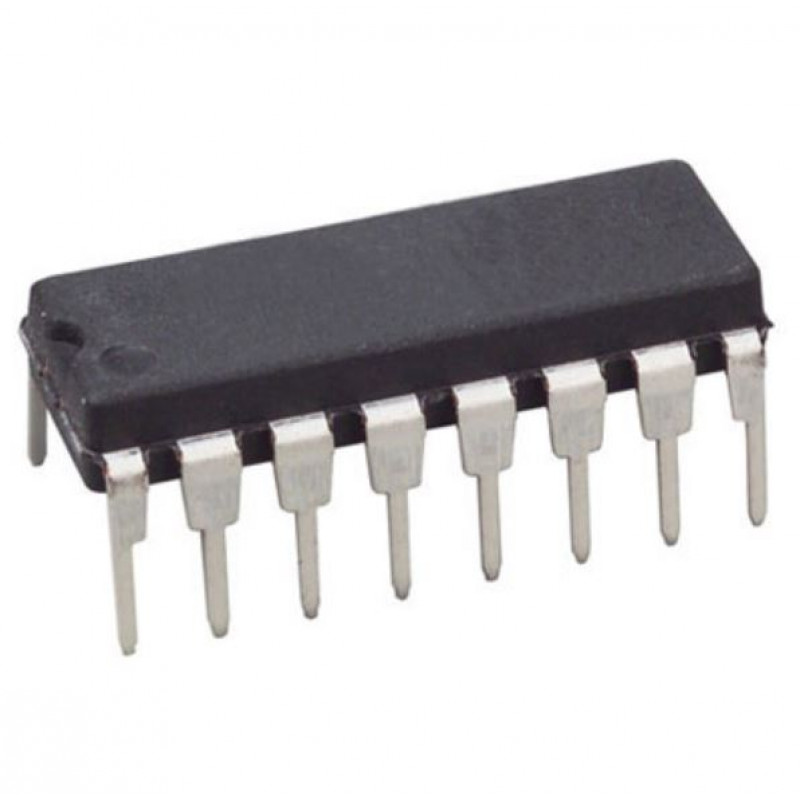

The CD4027 types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).

Features:-

• Set-Reset capability
• Static flip-flop operation — retains state indefinitely with clock level either "high" or "low"
• Medium speed operation — 16 MHz (typ.) clock toggle rate at 10 V
• Standardized, symmetrical output characteristics
• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
• Noise margin (full package-temperature range) =
      1 V at V_DD = 5 V
      2 V at V_DD = 10 V
      2.5 V at V_DD = 15 V
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices"
• Applications:
  • Registers, counters, control circuits

Specifications:-

Related Document:-

 CD4027 IC Datasheet
