  • DAC0800 8-Bit Digital to Analog D/A Converter IC DIP-16 Package

The DAC0800 series are monolithic 8-bit high-speed current-output digital-to-analog converters (DAC) featuring typical settling times of 100 ns. When used as a multiplying DAC, monotonic performance over a 40 to 1 reference current range is possible. The DAC0800 series also features high compliance complementary current outputs to allow differential output voltages of 20 Vp-p with simple resistor loads. The reference-to-full-scale current matching of better than ±1 LSB eliminates the need for full-scale trims in most applications, while the non linearities of better than ±0.1% over temperature minimizes system error accumulations.

The noise immune inputs will accept a variety of logic levels. The performance and characteristics of the device are essentially unchanged over the ±4.5V to ±18V power supply range and power consumption at only 33 mW with ±5V supplies is independent of logic input levels.

The DAC0800 is a direct replacement for the DAC-08, DAC-08A, DAC-08C, and DAC-08H, respectively.


Features:-

  • Fast Settling Output Current: 100 ns
  • Full Scale Error: ±1 LSB
  • Non linearity Over Temperature: ±0.1%
  • Full Scale Current Drift: ±10 ppm/°C
  • High Output Compliance: −10 V to +18 V
  • Complementary Current Outputs
  • Interface Directly with TTL, CMOS, PMOS and Others
  • 2 Quadrant Wide Range Multiplying Capability
  • Wide Power Supply Range: ±4.5 V to ±18 V
  • Low Power Consumption: 33 m W at ±5 V
  • Low Cost


Specifications:-

Parameters Specification
Part number DAC0800
Resolution (Bits) 8
DAC channels 1
Interface Parallel
Operating temperature range ( C ) 0 to 70
Architecture Multiplying DAC
Output type Unbuffered Current
Output range (Max) (mA/V) 2
Output range (Min) (mA/V) 0
Settling time (µs) 0.1
Features Current Output
Rating See Data Sheet


Related Document:-

 DAC0800 IC Datasheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 108.56 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

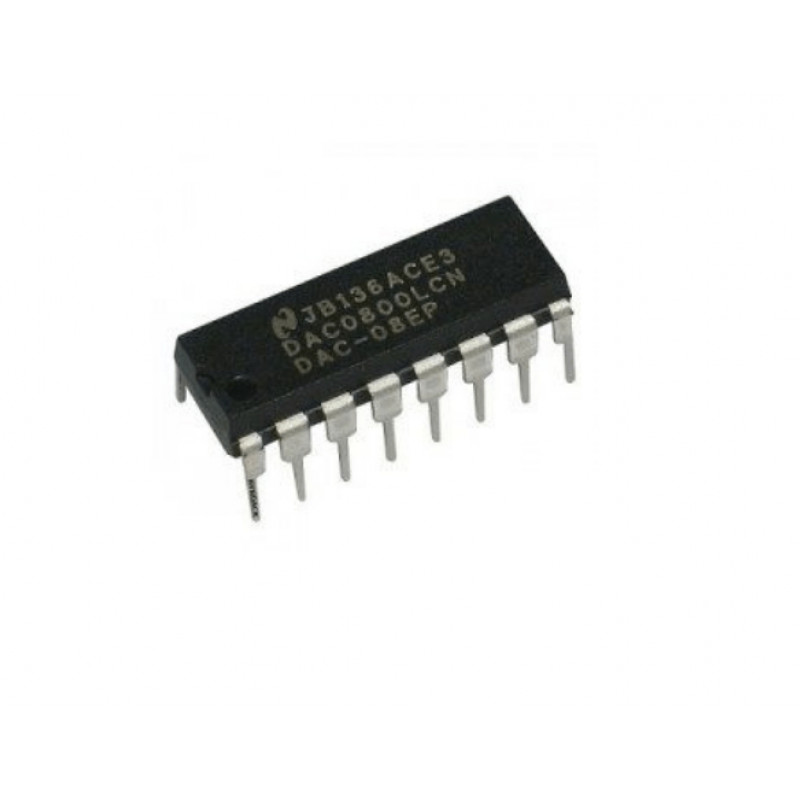

DAC0800 8-Bit Digital to Analog D/A Converter IC DIP-16 Package

  • Product Code: EC-0058
  • Availability: 180
  • Rs.92.00
  • (Excluding 18% GST)
