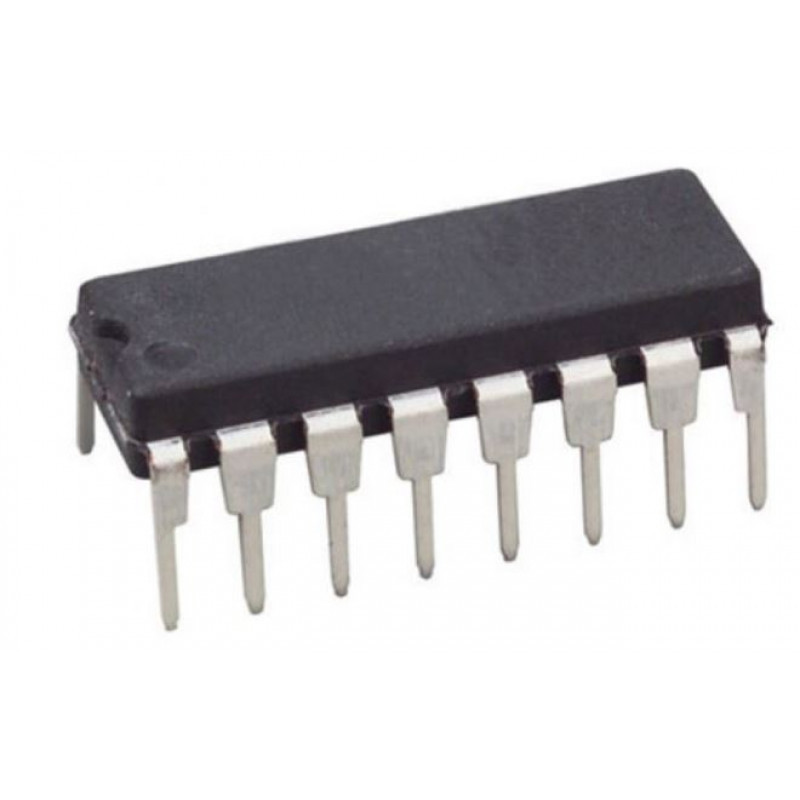

  • MC10158 Quad 2-Input Multiplexer IC DIP-16 Package

The MC10158 is a quad two channel multiplexer. A common select input determines which data inputs are enabled. A high (H) level enables data inputs D00, D10, D20, and D30 and a low (L) level enables data inputs D01, D11, D21, and D3


Features :-

  • PD = 197 mW typ/pkg (No Loa
  • tpd = 2.5 ns typ (Data to Q)

                                 3.2 ns typ (Select to Q)

  • tr, tf = 2.5 ns typ (20%–80%)


Specifications :-

  • Power Supply Drain Current Max : 53mAdc
  • Output Voltage Max : -0.700Vdc
  • Threshold Voltage : -1.595Vdc
  • Switching Times (50Ω Load)ns


Package Includes :-

1 X MC10158 Quad 2-Input Multiplexer IC DIP-16 Package

Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

MC10158 Quad 2-Input Multiplexer IC DIP-16 Package

  • Product Code: EC-11247
  • Availability: 1540
  • Rs.95.00
  • (Excluding 18% GST)
