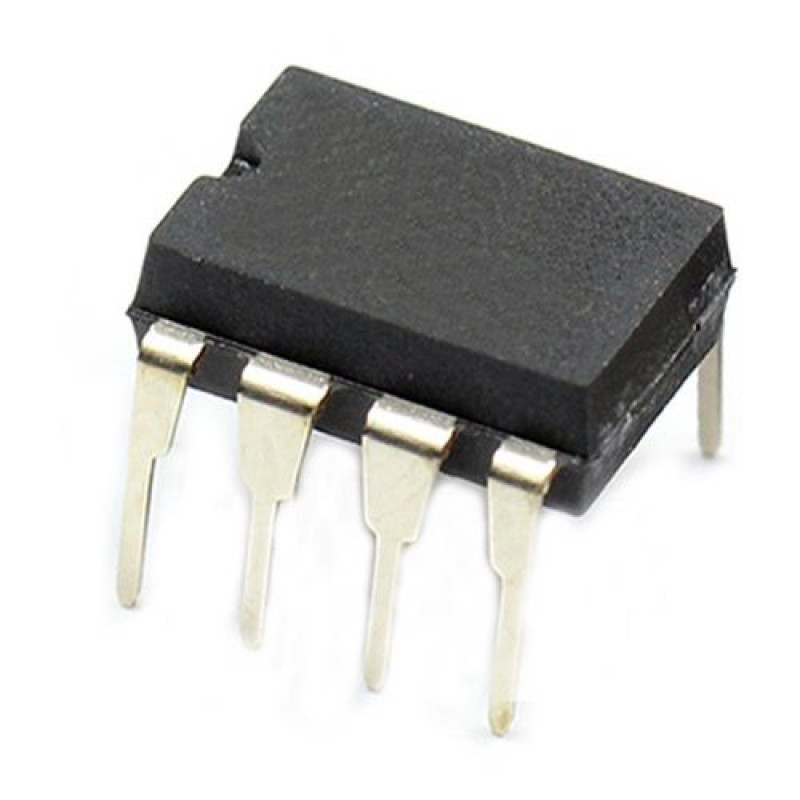

  • MC33172 Low Power Dual Bipolar Operational Amplifiers IC DIP-8 Package

The MC33172 series are dual bipolar operational amplifiers offering both low consumption (200 µA/Amp) and good speed (2.1 MHz, 2 V/µs).Moreover, the input common mode range extends down to the lower supply rail, allowing single supply operation from +4 V to +44 V.


Features :-

  • Good consumption/speed ratio: only 200 µA for 2.1 MHz, 2 V/µs
  • Single (or dual) supply operation from +4 V to +44 V (±2 V to ±22V)
  • Wide input common mode mode voltage range including VCC-
  • Low level output voltage close to VCC- : 100 mV typical
  • Pin-to-pin compatible with standard dual operational amplifiers


Specifications :-

  • Power Supply Voltage : +22V
  • Operating free-air temperature range : 40 to 105°C
  • Thermal resistance junction to ambient : 85°C/W
  • Junction temperature : 150°C
  • Storage temperature :  -65 to 150°C


Package Includes :-

1 X MC33172 Low Power Dual Bipolar Operational Amplifiers IC DIP-8 Package
