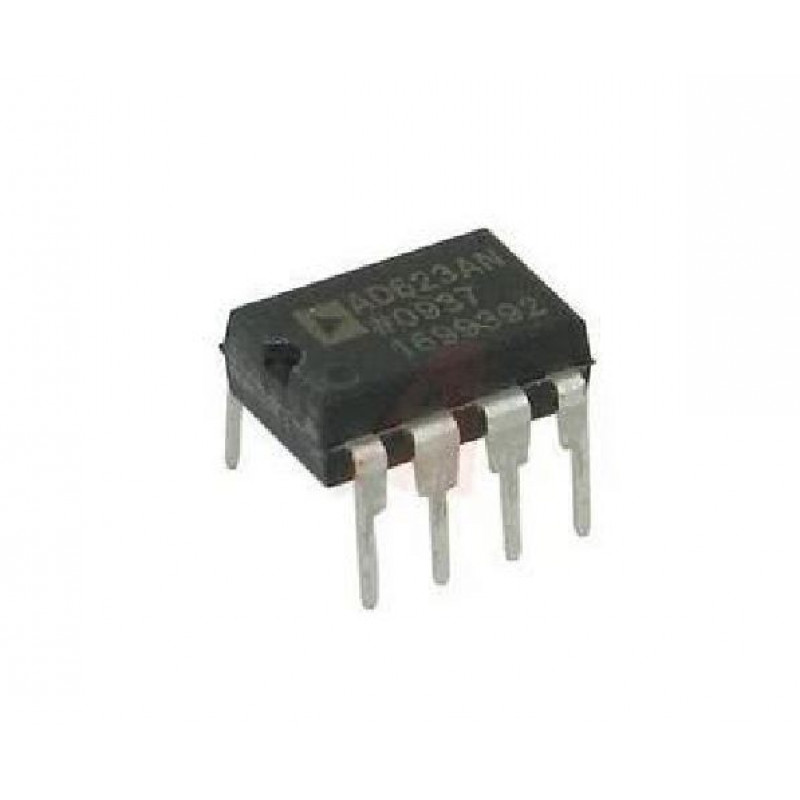

  • AD623 Instrumentation Amplifier IC DIP-8 Package

The AD623 is an integrated. or dual-supply instrumentation amplifier that delivers rail-to-rail output swing using supply voltages from 3 V to 12 V. The AD623 offers superior user flexibility by allowing single gain set resistor programming and by conforming to the 8-lead industry standard pin out configuration_ With no external resistor, the AD623 is configured for unity gain (G I), and with an external resistor, the AD623 can be programmed for gains of up to The superior accuracy of the AD623 is the result of increasing ac common -mode rejection ratio (CMRR) coincident with increasing gain; line noise harmonics are rejected due to constant CAIRR up to 200 Hz. The AD623 has a wide input common-mode range and amplifies signals with common- mode voltages as low as 150 mV below ground. The AD623 maintains superior performance with dual and single polarity power supplies.


Features:-

 Easy to use

Rail-to-rail output

Input voltage (single supply)

Low power, 550 PA maximum

Gain set with one external resistor

Gain range: I to 1000

High accuracy dc performance

   0.10% gain accuracy (G = I )

   0.35% gain accuracy (G > 1)

Noise: 35 nV/√Hz RTI noise at 1 kHz

Excellent dynamic specifications

    800 kHz bandwidth (G = 1)

   20 µs settling time to 0.01% (G = 10)


Specification:-

Parameter Specification
Supply Voltage  12 V
Internal Power Dissipation 650 mW
Differential Input Voltage  ±6 V
Output Short-Circuit Duration Indefinite
Storage Temperature Range  −65°C to +150°C
Operating Temperature Range −40°C to +85°C
Lead Temperature Range  300°C


Related Document:-

 AD623 IC Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 448.4 (Inclusive of all Taxes)
