The CNY17 is an optically coupled pair consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon NPN phototransitor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The CNY17 can be used to replace relays and transformers in many digital interface applications, as well as analog applications such as CRT modulation.
Features:-
• Isolation test voltage: 5000 VRMS
• Long term stability
• Industry standard dual-in-line package
Specification:-
| Parameter | Value |
| Package / Case | DIP-6 |
| Length | 8.7 mm |
| Width | 6.5 mm |
| Height | 3.81 mm |
| Collector-Emitter Breakdown Voltage | 70 V |
| Current Transfer Ratio | 200% |
| Fall Time | 14 us |
| Isolation Voltage | 5000 Vrms |
| Maximum Collector Current | 100 mA |
| Maximum Collector Emitter Saturation Voltage | 0.4 V |
| Maximum Collector Emitter Voltage | 70 V |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 55 C |
| Mounting Style | Through Hole |
| Number of Channels | 1 Channel |
| Output Type | NPN Phototransistor |
| Packaging | Tube |
| Pd - Power Dissipation | 150 mW |
| Product Type | Transistor Output Optocouplers |
| Rise Time | 3 us |
| Series | CNY |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

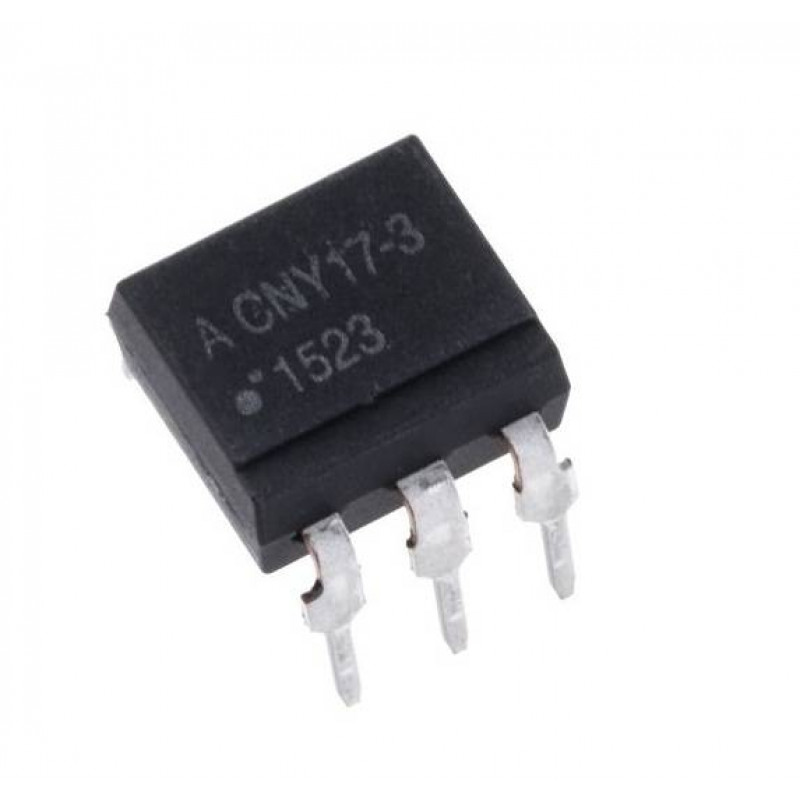

CNY17-3 Phototransistor Optocoupler IC DIP-6 Package
- Product Code: EC-1960
- Availability: 1720
-
Rs.19.00
- (Excluding 18% GST)
