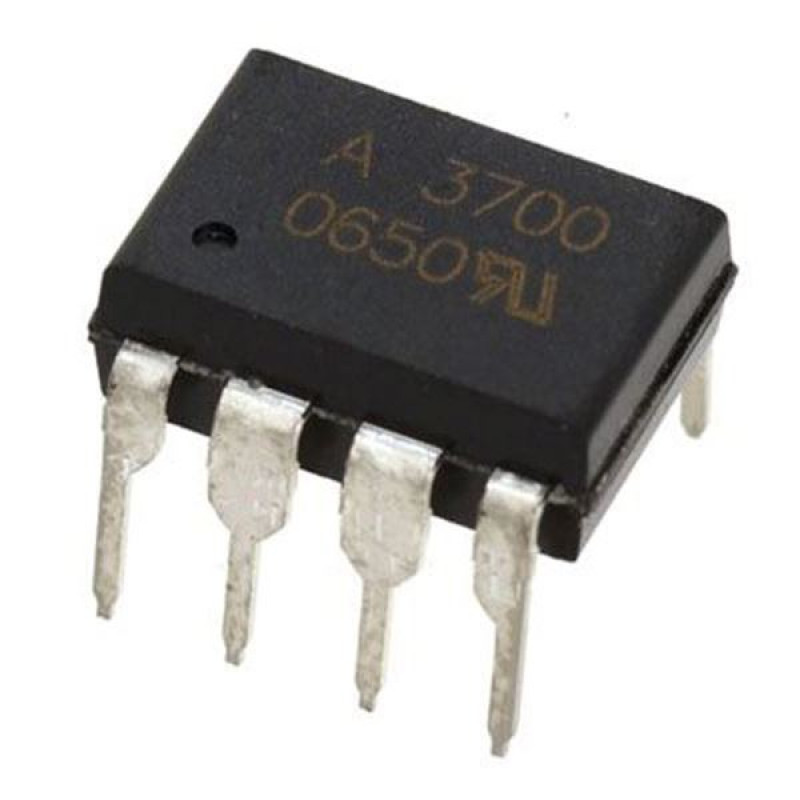

  • HCPL-3700 A3700 AC/DC To Logic Interface Optocoupler IC DIP-8 Package

The HCPL-3700 voltage/current threshold detection optocoupler consists of an AlGaAs LED connected to a threshold sensing input buffer IC which are optically coupled to a high gain darlington output. The input buffer chip is capable of controlling threshold levels over a wide range of input voltages with a single resistor. The output is TTL and CMOS compatible.

Features:-

• AC or DC input

Programmable sense voltage

Logic level compatibility

Threshold guaranteed over temperature (0°C to 70°C)

Optoplanar™ construction for high common mode immunity

UL recognized (file # E90700)

VDE certified – ordering option ‘V’, e.g., HCPL3700V

Applications:-

 Low voltage detection

5 V to 240 V AC/DC voltage sensing

Relay contact monitor

Current sensing

Microprocessor Interface

Industrial controls

Specification:-

Symbol Parameter Value Unit
TOPR   Operating temperature -40 to +85 °C
VIN Input Voltage -0.5 (Max.) V
PO Output Power dissipation 210 (Max.) mW
Vo Output Voltage -0.5 to 20 V
TSTG Storage temperature range - 55 to + 150 °C
TSOL Lead Solder Temperature 260 for 10 sec °C
Vcc Supply Voltage -0.5 to 20 V
Io Output Current 30 (Max.) mA


Related Document:-

 HCPL-3700 IC Data Sheet





Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 159.3 (Inclusive of all Taxes)
