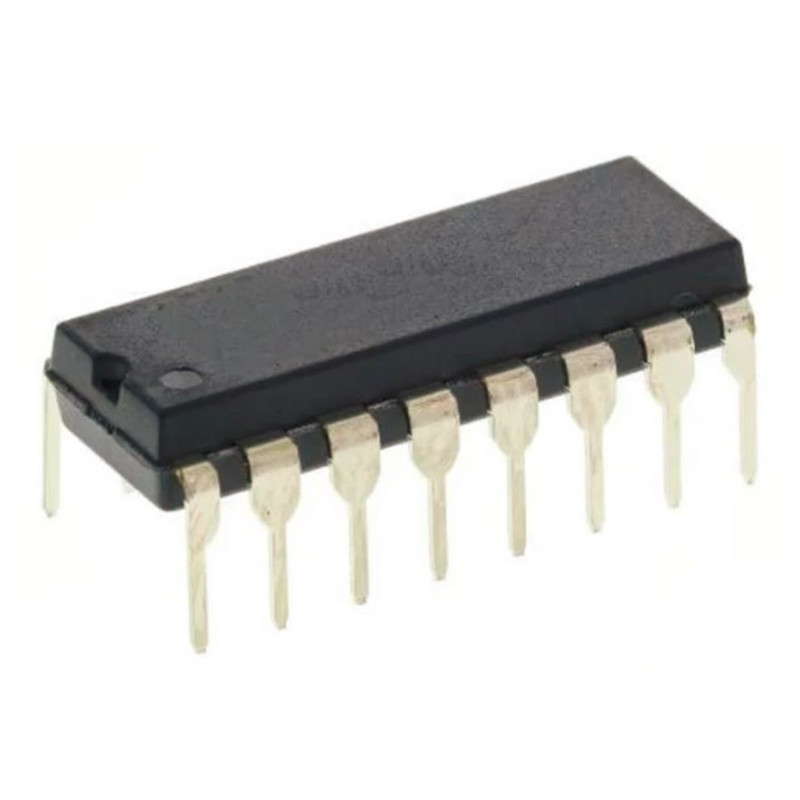

  • DG408D IC - Improved, 8-Channel/Dual 4-Channel, CMOS Analog Multiplexer IC

The DG408 analog multiplexers now feature guaranteed matching between channels (8Ω max) and flatness over the specified signal range (9Ω max). These low on-resistance muxes (100Ω max) conduct equally well in either direction and feature guaranteed low charge injection (15pC max). In addition, these new muxes offer low input off-leakage current over temperature—less than 5nA at +85°C. The DG408 is a 1-of-8 multiplexer/demultiplexer. The muxes operate with a +5V to +30V single supply and with ±5V to ±20V dual supplies. ESD protection is guaranteed to be greater than 2000V per Method 3015.7 of MIL-STD-883. These improved muxes is pin-compatible plug-in upgrades for the industry standard DG408.

Features:-

♦ Pin-Compatible Plug-In Upgrades for Industry Standard DG408

♦ Guaranteed Matching Between Channels, 8Ω Max

♦ Guaranteed On-Resistance Flatness, 9Ω Max

♦ Guaranteed Low Charge Injection, 15pC Max

♦ Low On-Resistance, 100Ω Max

♦ Input Leakage, 5nA Max at +85°C

♦ Low Power Consumption, 1.25mW Max

♦ Rail-to-Rail Signal Handling

♦ Digital Input Controls TTL/CMOS Compatible

♦ ESD Protection >2000V per Method 3015.7

Specification:-

Parameter  Specification
Operating Temperature Ranges 0°C to +70°C
Storage Temperature Range -65°C to +150°C
Lead Temperature +300°C
Peak Current 100mA
Continuous Current 30mA


Related Document:-

 DG408D IC Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 188.8 (Inclusive of all Taxes)
