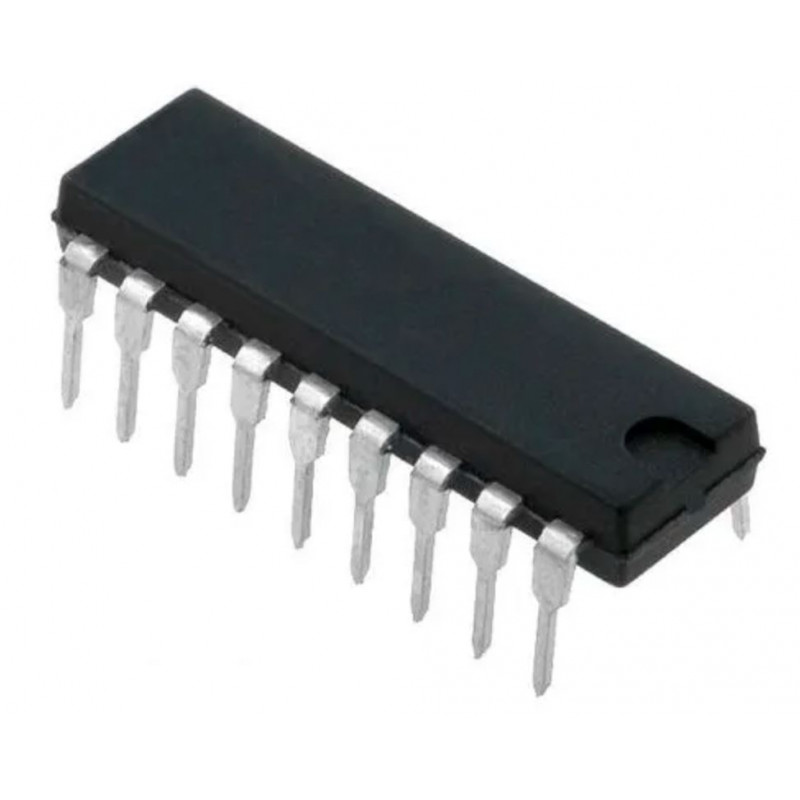

  • MT8888 Integrated DTMF Transceiver IC

The MT8888 is a monolithic DTMF transceiver with call progress filter. It is fabricated in Mitel’s ISO2- CMOS technology, which provides low power dissipation and high reliability. The DTMF receiver is based upon the industry standard MT8870 monolithic DTMF receiver; the transmitter utilizes a switched capacitor D/A converter for low distortion, high accuracy DTMF signalling. Internal counters provide a burst mode such that tone bursts can be transmitted with precise timing. A call progress filter can be selected allowing a microprocessor to analyze call progress tones. A standard microprocessor bus is provided and is directly compatible with 6800 series microprocessors.


Features:-

  • Central office quality DTMF transmitter/receiver
  • Low power consumption
  • High speed Intel micro interface
  • Adjustable guard time
  • Automatic tone burst mode
  • Call progress tone detection to -30dBm


Applications:-

  •  Credit card systems
  •  Paging systems
  •  Repeater systems/mobile radio
  •  Interconnect dialers
  •  Personal computers


Specifications:-

SymbolParameterMinMaxUnits
VDDDC Power Supply Voltage
6V
VIVoltage on any pin VSS-0.3 VDD+0.3V
IICurrent at any pin (other than supply)
10m A
TSTGStorage temperature-65150°C
PDPackage power dissipation
1000 m W


Package Includes:-

• 1 x MT8888 Integrated DTMF Transceiver IC

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 289.1 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

MT8888 Integrated DTMF Transceiver IC

  • Product Code: EC-17379
  • Availability: 709
  • Rs.245.00
  • (Excluding 18% GST)
