The LM7812 series of three terminal positive regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Features:-
• Output Current up to 1A
• Output Voltages of 5, 6, 8, 9, 12, 15, 18, 24
• Thermal Overload Protection
• Short Circuit Protection
• Output Transistor Safe Operating Area Protection
Specification:-
| Symbol | Parameter | Min | Type | Max | Units |
| VO | Output Voltage | 11.5 | 12 | 12.5 | V |
| Regline | Line Regulation | 10 | 240 | m V | |
Regload | Load Regulation | 11 | 240 | m V | |
| IQ | Quiescent Current | 5.1 | 8 | °C | |
| RR | Ripple Rejection | 55 | 71 | d B |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 17.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

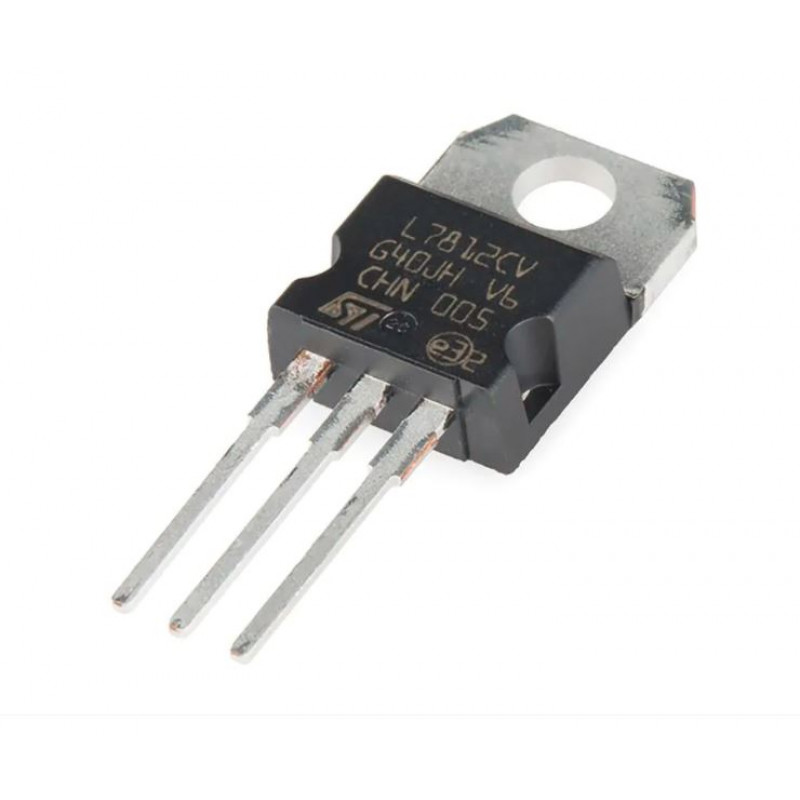

LM7812 IC - 12V Positive Voltage Regulator IC
- Product Code: EC-0077
- Availability: 2634
- Rs.15.00
-
Rs.9.00
- (Excluding 18% GST)
