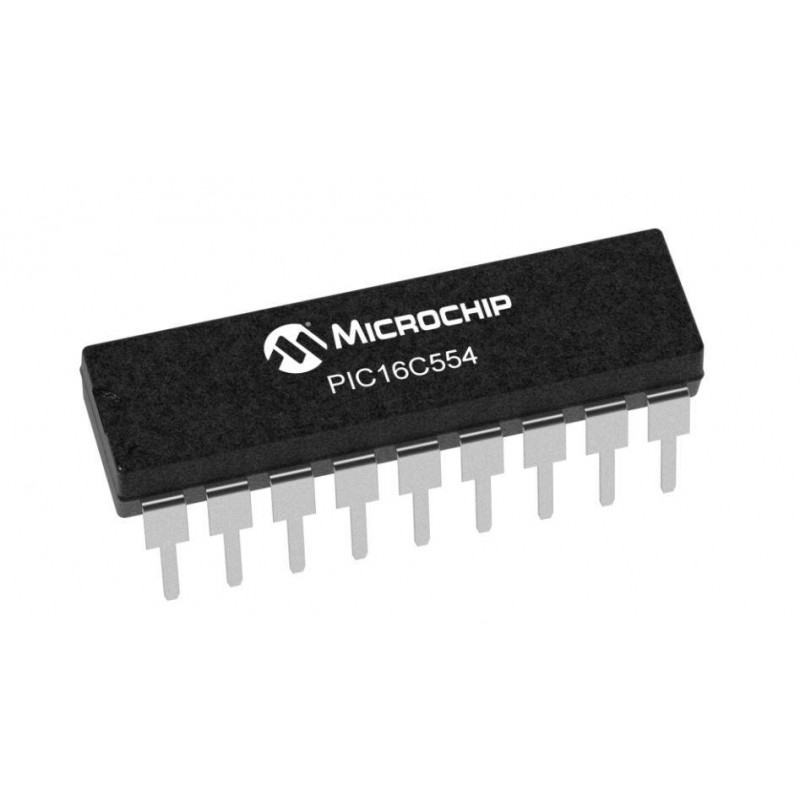

  • PIC16C554 Microcontroller

The PIC16C554 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS OTP-based 8-bit micro controller packs Microchip’s powerful PIC® architecture into an 18-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications.

Features:-

  • Only 35 instructions to learn
  • All single-cycle instructions (200 ns), except for program branches which are two-cycle
  • Operating speed: DC - 20 MHz clock input, DC - 20 ns instruction cycle
  • PIC16C554: program memory 512, data memory 80
  • Interrupt capability
  • 16-18 special function hardware registers
  • 8-level deep hardware stack
  • Direct, Indirect and Relative Addressing modes

Specification:-

Parameter Value
Program Memory Type OTP
Program Memory Size (KB) 0.875
CPU Speed (MIPS/DMIPS) 5
SRAM (B) 80
Timers 1 x 8-bit
Temperature Range (°C) -40 to 85
Operating Voltage Range (V) 2.5 to 5.5
Pin Count
18


Related Document:-

 PIC16C554 IC Data Sheet

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 152.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

PIC16C554 Microcontroller

  • Product Code: EC-2147
  • Availability: 345
  • Rs.489.00
  • (Excluding 18% GST)
