The PIC16F688 is a 14-Pin Flash-Based, 8-Bit CMOS Microcontrollers with nano Watt Technology . The following are the features:-

• 17 1/0 Pins and I Input-only Pin:

- High current source/sink for direct LED drive

- Interrupt-on-Change pin

- Individually programmable weak pull-ups

- Ultra Low-power Wake-up (LJLPWU)

• Analog Comparator Module With:

- TWO analog comparators

- Programmable on-chip voltage reference (CVREF) module (% of VDD)

- Comparator inputs and outputs externally accessible

- SR Latch mode

- Timer I Gate Sync Latch

- Fixed O.6VVREF

• AID Converter: ID-bit resolution and 12 channels

• Timer 8-Bit Timer/Counter With 8-Bit rammable Prescaler

Specification:-

Parameter	Value
Program Memory Type	Flash
Program Memory Size (KB)	7
CPU Speed (MIPS/DMIPS)	5
SRAM (B)	256
Temperature Range (°C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	14
Timers	1 x 8-bit, 1 x 16-bit
Data EEPROM/HEF (bytes)	256
Number of Comparators	2
Digital Communication Peripherals	1-UART, 1-SPI, 1-I2C
ADC Input	8 ch, 10-bit

Related Document:-


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 185.26 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

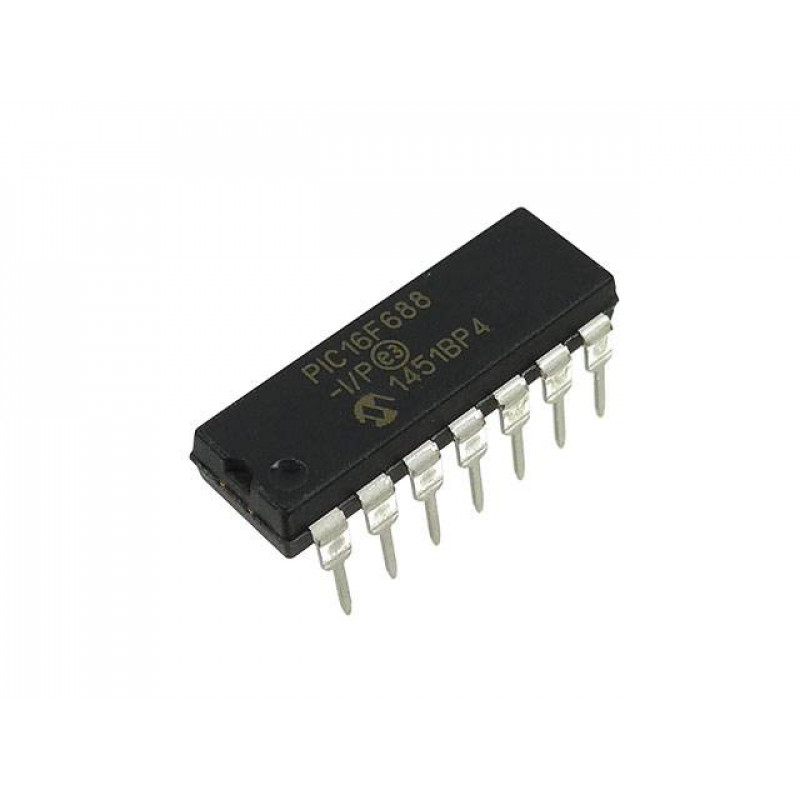

PIC16F688 Microcontroller
